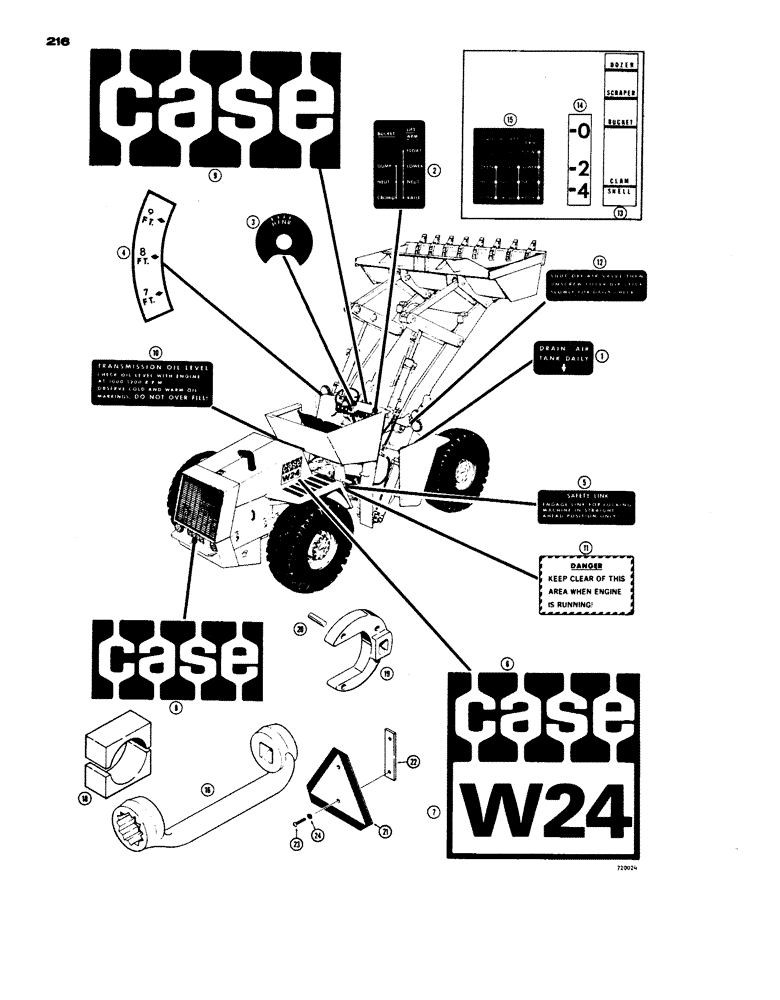

Запчасти Case W24 (216) - DECALS (09) - CHASSIS

L45506

DECAL

KIT - decal, W24 Articulated Loader, Includes: Ref. 1 - 14

1шт.

1

321-1077

DECAL

- air drain (Lower R.H. front and rear frame)

2шт.

2

321-1075

DECAL

- bucket control pattern (Upper R.H. rear front frame)

1шт.

3

321-1047

DECAL

- transmission shift control (Steering column)

1шт.

4

321-1272

DECAL

- height control, at height adjustment lever

1шт.

5

321-1078

DECAL

- safety link (R.H. rear frame at link bracket)

1шт.

6

321-1443

DECAL

- "CASE" over "W26B" ( Hood side panels) Reflective (When stock is exhausted, order 321-1574 Non- reflective decal for service

2шт.

6

321-1574

DECAL

- "CASE" over "W26B" (Hood side panels) Non-reflective

2шт.

7

321-1561

DECAL

- "W24" under "CASE" (Hood side panels)

2шт.

8

321-1442

DECAL

- "CASE" (Below grille between rear lights) Reflective (When stock is exhausted, order 321-2427 non-reflective decal for service)

1шт.

8

321-2427

EMBLEM

DECAL - "CASE" (Below grille between rear lights) Non-reflective

1шт.

9

321-1445

DECAL

- "CASE" (Front frame above access cover) Reflective (When stock is exhausted, order 321-2429 non-reflective decal for service)

1шт.

9

321-2429

EMBLEM

DECAL - "CASE" (Front frame above access cover) Non-reflective

1шт.

10

321-1076

DECAL

- transmission oil level (L.H. rear frame at filler pipe)

1шт.

11

321-1198

DECAL

- warning (Lower R.H. front of rear frame)

1шт.

12

321-1074

DECAL

- hydraulic tank daily check (On tank cover)

1шт.

13

321-1223

DECAL

- bucket positioning indicator, at bellcrank

1шт.

14

A17710

DECAL

- clamp opening, L.H. side of bucket blade

1шт.

15

321-1663

DECAL

- bucket control pattern (3 spool valve) Upper R.H. rear front frame (Models with Drott bucket)

1шт.

16

A42393

SPECIAL WRENCH

WRENCH - torque, engine cylinder head bolt, tools

1шт.

17

L43569

LUBE NIPPLE

KIT - cable lubricator (Not shown), tools

1шт.

18

L54161

CLAMP - control valve spool, tools

1шт.

19

D44116

OPEN END WRENCH

WRENCH - spanner (To service tilt cylinders listed on figures 195 and 195B), tools, Includes: Ref. 20

1шт.

19

G33203

TOOL

WRENCH - spanner (To service lift cylinders listed on figures 195 and 195B), tools, Includes: Ref. 20

1шт.

19

D44112

OPEN END WRENCH

WRENCH - spanner (To service steering cylinders listed on figure 155), tools, Includes: Ref. 20

1шт.

20

D30107

PIN

- spanner wrench (D44112 wrench only), tools

3шт.

20

D44118

SPARE PART

PIN - spanner wrench (D44116 and G33203 wrenches only), tools

3шт.

A59449

NO LONGER SERVICED

EMBLEM AND BACKING PLATE ASSY. - slow moving vehicle, Includes: Ref. 21 and 21A

1шт.

21

321-1751

DECAL

- slow moving vehicle emblem

1шт.

21a

NSS

NOT SOLD SEPARAT

BACKING PLATE - slow moving vehicle emblem (Not shown)

1шт.

22

L16093

PLATE

- mounting, emblem, slow moving vehicle

1шт.

23

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, pan head (#10 - 24 NC x 1-1/2"), slow moving vehicle emblem

2шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , SMV emblem #10

2шт.
