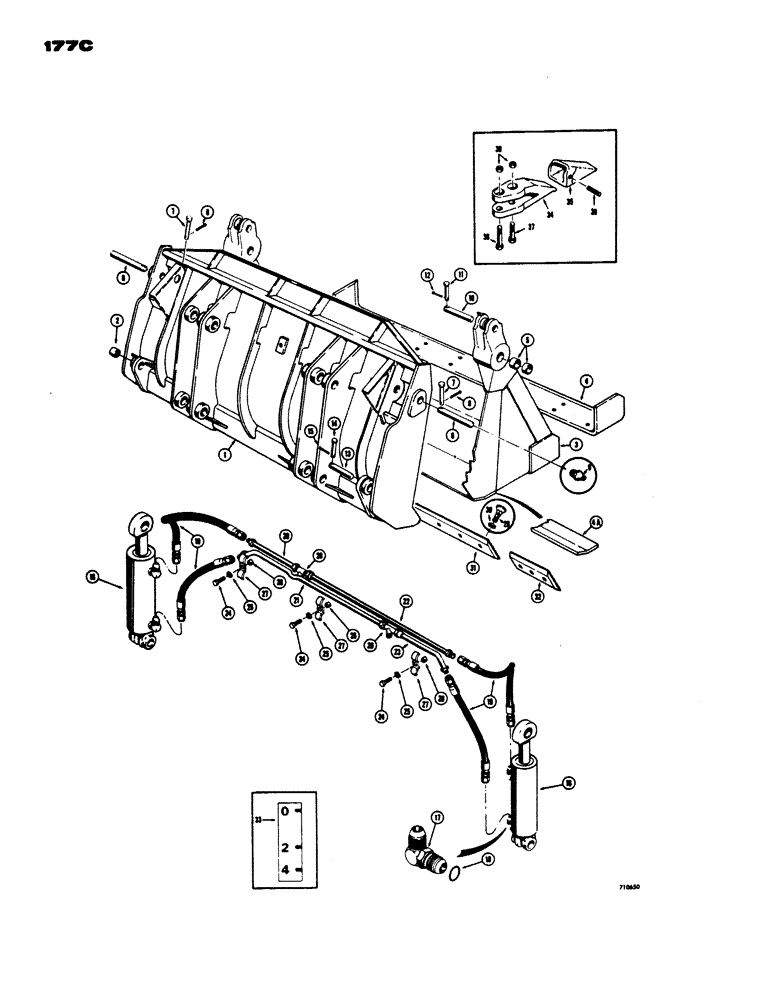

Запчасти Case W24 (177C) - 4 -IN- 1 BUCKET, TRACTOR SN. 9107067 AND AFTER (09) - CHASSIS

L50833

BUCKET ASSEMBLY - 4-in-1, 2-1/2 cu. yd. (Machinery item), Includes: Ref. 1 - 8

1шт.

1

L50832

BLADE

ASSEMBLY - bucket, Includes: Ref. 2

1шт.

2

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- clam cylinder mounting, closed end

2шт.

D50436

BLOCK

CLAM ASSEMBLY - bucket, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

4

D50729

EDGE, CUTTING

CUTTING EDGE - clam, front

1шт.

4a

D50428

PLATE

- wear, clam (Rear)

1шт.

5

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- clam hinge

4шт.

6

D50727

PIN

-, Serial Range: blade-clam

2шт.

7

D47252

PIN

- clevis

2шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

10

D50435

PIN,38.1mm OD x 124.46mm L

- clam cylinder retaining, rod end

2шт.

11

D4725

PIN - clevis

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

D51244

AXLE PIN,38.1mm OD x 99.06mm L

PIN - clam cylinder retaining, closed end

2шт.

14

D50746

CLEVIS PIN

PIN - clevis

2шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

G32388

CYLINDER

- hydraulic, clam (4" I.D. x 10-1/2" stroke) Parts list Figure 195E

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 18

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

19

L50840

HOSE

- clam cylinder (24" long)

4шт.

20

L46876

TUBE - L.H. clam cylinder, rod end to tee 20" L

1шт.

21

L53131

TUBE,4" L

- L.H. clam cylinder, closed end to tee

1шт.

22

L46879

TUBE,36" L

- R.H. clam cylinder, rod end to tee

1шт.

23

L46883

TUBE,4" L

- R.H. clam cylinder, closed end to tee

1шт.

24

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

HHCS - 5/16" - 18 NC x 1-3/8"

3шт.

25

92-5

LOCK WASHER,5/16"

3шт.

26

D33316

CLAMP

SPACER - tube

3шт.

27

D33552

BUSHING

CLAMP - tube

3шт.

28

128-605

TEE - hydraulic, at bucket

2шт.

29

118-503

PLOW BOLT,3/4"-10 x 2 1/4", G8

BOLT - plow (3/4" - 10 NC x 2-1/4")

19шт.

30

280954

NUT,3/4"-10, G5

- hex. (3/4" - 10 NC)

19шт.

31

S209992

EDGE

CUTTING EDGE - blade, center

1шт.

32

S80476

EDGE

CUTTING EDGE - blade, end

2шт.

33

A17710

DECAL

- clam opening

1шт.

L32721

BUCKET TOOTH

TOOTH ASSEMBLY - bucket, Includes: Ref. 34 - 36

9шт.

34

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

35

A17667

TIP

POINT - tooth, bucket

1шт.

36

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Point mounting, bucket teeth 1/2" x 2 1/2", Slotted

1шт.

37

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Bucket teeth Hex, 5/8"-11 x 3", G5

9шт.

38

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2", bucket teeth

9шт.

39

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

18шт.
