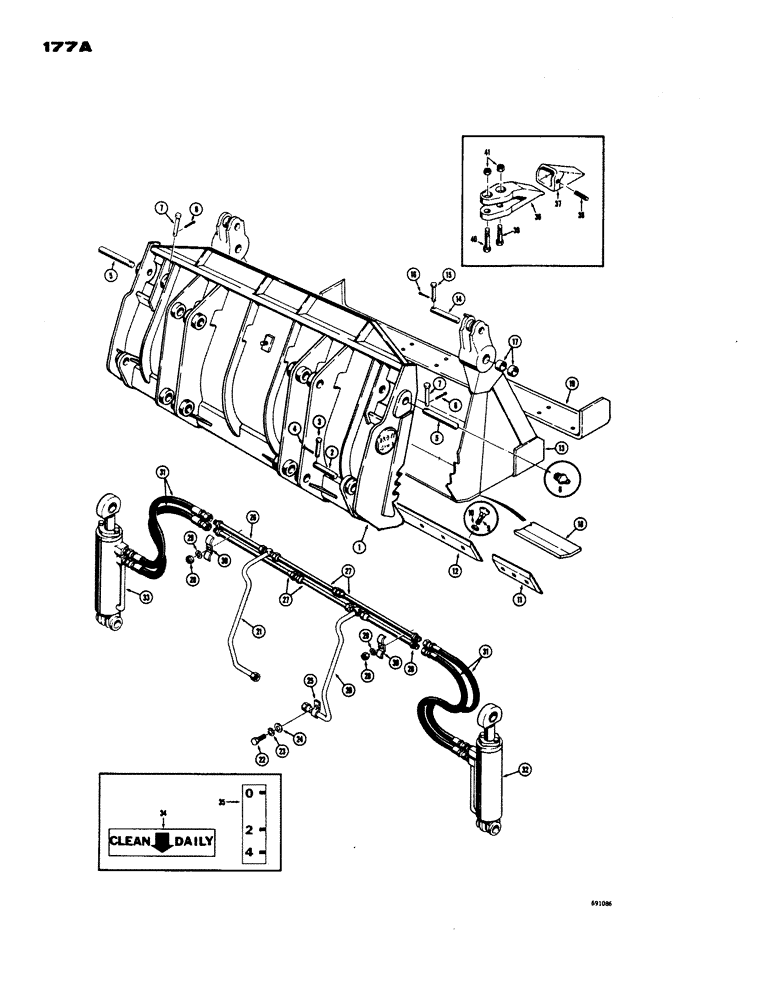

Запчасти Case W24 (177A) - DROTT 4 IN 1 BUCKET, BEFORE TRACTOR SN. 9107067 (09) - CHASSIS

L41452

BUCKET ASSY - Drott, 2-1/2 cu. yd. (Machinery Item), Incl. Ref. 1 - 35

1шт.

L32715

SPARE PART ASSY - bucket, Incl. Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

A17662

PIN

Clam cylinder, lower

2шт.

3

A17663

PIN

Clevis

2шт.

4

132-48

COTTER PIN,1/8" x 1"

2шт.

5

A17660

PIN

Clam to blade, Incl. Ref. 6

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

7

141-328

PIN

Clevis (Replaced A17661 )

2шт.

8

132-48

COTTER PIN,1/8" x 1"

2шт.

9

19-1232

CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 5

BOLT - plow, 3/4"-10 NC x 2"

19шт.

10

25-1012

NUT,3/4"-10, G5

19шт.

11

A17655

POINT

CUTTING EDGE - end

2шт.

12

S29565

EDGE

CUTTING EDGE - center

1шт.

L32711

SPARE PART ASSY - bucket, Incl. Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

14

A17664

PIN

Clam cylinder to clam (Replaced A18664 )

2шт.

15

L32714

PIN

Clevis

2шт.

16

132-48

COTTER PIN,1/8" x 1"

2шт.

17

A18662

BUSHING

Clam hinge

4шт.

18

L32713

EDGE

PLATE - wear, clam rear

1шт.

19

L32712

EDGE

CUTTING, clam, front

1шт.

20

L32717

SPARE PART To clam cylinder, RH

1шт.

21

L32718

SPARE PART To clam cylinder, LH

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

95-6

WASHER,3/8"

Standard wrot

2шт.

25

A17698

SPARE PART Tube

2шт.

26

A18675

TUBE

Crossover, to clam cylinders (Short)

2шт.

27

L32719

SPARE PART Crossover, to clam cylinders (Long)

4шт.

28

25-106

NUT,3/8"-16, G5

Hex

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

30

D44072

TUBE

CLAMP

3шт.

31

A17687

HOSE ASSY.

Clam cylinder (20" long)

4шт.

32

REF

INSTRUCTION

CLYINDER - hydraulic, clam (RH) 4" I.D. x 10" stroke (See Figures 195C and 195E for proper cylinder)

1шт.

33

REF

INSTRUCTION

CYLINDER - hydraulic, clam (LH) 4" I.D. x 10" stroke (See Figures 195C and 195G for proper cylinder)

1шт.

34

A18673

DECAL

Clean daily

1шт.

35

A17710

DECAL

Clam opening

1шт.

L32721

BUCKET TOOTH

ASSY, Incl. Ref. 36 - 38

9шт.

36

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

37

A17667

TIP

POINT - tooth, bucket

1шт.

38

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

Point mounting, bucket teeth

1шт.

39

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Bucket teeth

9шт.

40

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth

9шт.

41

25-1010

NUT,5/8"-11, G5

Bucket teeth

18шт.
