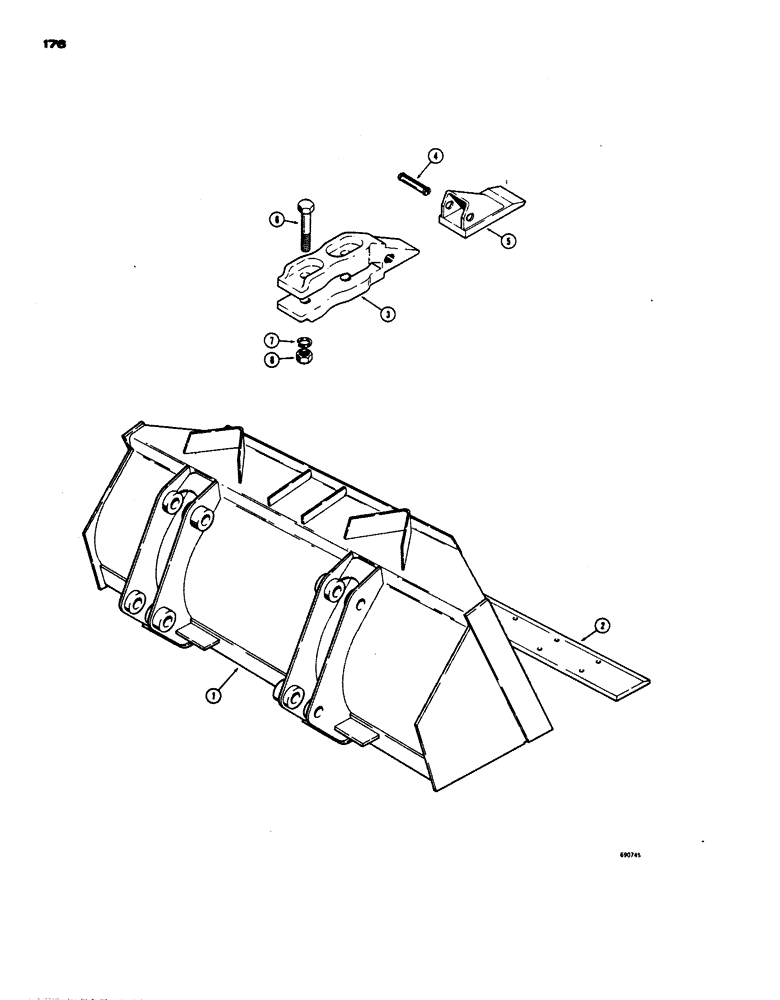

Запчасти Case W24 (176) - LOADER BUCKETS (09) - CHASSIS

L17042

BUCKET ASSEMBLY - loader, 2 cu. yd., 96 in. wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 cu. yd., 96 in. wide

1шт.

2

L17396

EDGE

CUTING EDGE - bucket, 2 cu. yd., 96 in. wide

1шт.

L17045

BUCKET ASSEMBLY - loader, 2-1/2 cu. yd., 96 in. wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2-1/2 cu. yd., 96 in. wide

1шт.

2

L17396

EDGE

CUTTING EDGE - bucket, 2-1/2 cu. yd., 96 in. wide

1шт.

L15877

BUCKET ASSEMBLY - loader, 2-1/2 cu. yd., 104 in. wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2-1/2 cu. yd., 104 in. wide

1шт.

2

L17382

EDGE

CUTTING EDGE - bucket, 2-1/2 cu. yd., 104 in. wide

1шт.

L43731

BUCKET ASSEMBLY - loader, 2-1/2 cu. yd. (Rock and heavy material), 120 in. wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, rock and heavy material

1шт.

2

L25568

CUTTING EDGE - bucket, 2-1/2 cu. yd., 120 in. wide

1шт.

L17043

BUCKET ASSEMBLY - loader, 3 cu. yd., 104 in. wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 cu. yd., 104 in. wide

1шт.

2

L17382

EDGE

CUTTING EDGE - bucket, 3 cu. yd., 104 in. wide

1шт.

L17044

BUCKET ASSEMBLY - loader, 4 cu. yd., 104 in. wide, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 4 cu. yd., 104 in. wide

1шт.

2

L17382

EDGE

CUTTING EDGE - bucket, 4 cu. yd., 104 in. wide

1шт.

L17087

ROD ASSY.

TOOTH ASSEMBLY - bucket, teeth, Includes: Ref. 3 - 5

8-9шт.

3

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

4

L32090

PIN

FLEX PIN - tooth, bucket teeth

1шт.

5

L32089

POINT

- tooth, bucket teeth

1шт.

6

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4", bucket teeth

18шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Bucket teeth 3/4"

18шт.

8

25-1012

NUT,3/4"-10, G5

Bucket teeth 3/4"-10, G5

18шт.
