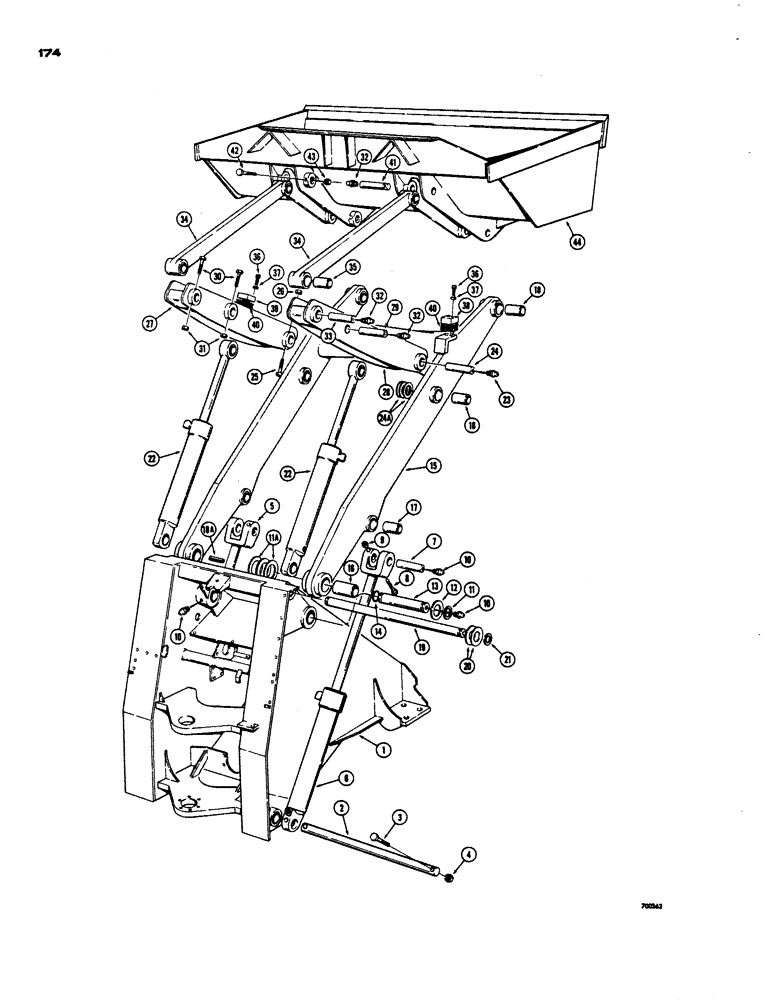

Запчасти Case W24 (174) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS

1

L17222

FRAME ASSY - front (See Figure 166 for bushings and related parts)

1шт.

2

L19489

SHAFT

Pivot, lift cylinder

1шт.

3

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

2шт.

4

131-64

LOCK NUT,5/8"-11, GC

Hex

2шт.

5

REF

INSTRUCTION

CYLINDER - hydraulic, LH loader lift (5" I.D. x 34-1/4" stroke) See Figure 192 and 193A for proper cylinder

1шт.

6

REF

INSTRUCTION

CYLINDER - hydraulic, RH loader lift (5" I.D. x 34-1/4" stroke) See Figures 192 and 193A for proper cylinder

1шт.

7

L15725

PIN

Mounting, lift cylinder to lift arm frame

2шт.

8

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

2шт.

9

131-64

LOCK NUT,5/8"-11, GC

Hex

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

11

L16016

RING

Pin retaining, lift frame

4шт.

11a

L45001

WASHER

SHIM - loader lift frame (.075 thick)

1шт.

12

L16017

WASHER

Special

4шт.

13

L26676

PIN

Lift, Serial Range: frame-chassis

2шт.

14

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL

2шт.

15

L26902

SPARE PART FRAME ASSY - loader lift (Without Drott bucket), Incl. Ref. 16 - 18A

1шт.

15

L43576

SPARE PART ASSY - loader lift (With Drott bucket before tractor S/N 9107067), Incl. Ref. 16 - 18A

1шт.

15

L47028

ARM

FRAME ASSY - loader lift (With Drott bucket, tractor S/N 9107067 and after), Incl. Ref. 16 - 18A

1шт.

16

L15804

BUSHING

Lift, Serial Range: arm-chassis

2шт.

17

L15802

BUSHING,63.75mm ID x 75.48mm OD x 89mm L

Lift arm to lift cylinder

2шт.

18

L15803

BUSHING

Lift arm to bellcrank and bucket

4шт.

18a

135-398

GROOVED PIN,1/2" x 2 1/2", Type F

If used

1шт.

19

L26677

SHAFT

Tilt cylinder pivot

1шт.

20

L16018

WASHER

Special, .312" thick

1шт.

20

L19697

WASHER

Special, .375" thick

1шт.

21

L16015

RING

Pin retaining, tilt cylinder closed end

2шт.

22

REF

INSTRUCTION

CYLINDER - hydraulic, loader tilt (4-1/2" I.D. x 29-1/2" stroke) See Figures 194 and 195A for proper cylinder

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

24

L15689

AXLE PIN,50.8mm OD x 234.19mm L

Bellcrank to lift arm

2шт.

24a

L45013

WASHER

SHIM - loader bellcrank (.0745" thick)

1шт.

25

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

2шт.

26

131-70

NUT,1/2"-13, GB

Hex

2шт.

27

L15678

ARM ASSY.

BELLCRANK - bucket, LH (When stock is exhausted, order L53683 bellcrank for service)

1шт.

27

L53683

DIPPER

BELLCRANK ASSY - bucket, LH

1шт.

28

L15679

ARM ASSY.

BELLCRANK - bucket, RH (When stock is exhausted, order L53680 bellcrank for service)

1шт.

28

L53680

CRANK LEVER

BELLCRANK ASSY - bucket, RH

1шт.

29

L40421

PIN,50.8mm OD x 202.44mm L

Bellcrank to tilt cylinder

2шт.

30

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

4шт.

31

131-70

NUT,1/2"-13, GB

Hex

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

33

L15689

AXLE PIN,50.8mm OD x 234.19mm L

Bellcrank to bucket link

2шт.

34

L15808

LINK

Bucket, Incl. Ref. 35

2шт.

35

L15803

BUSHING

Link

2шт.

36

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

8шт.

37

92-8

LOCK WASHER,1/2"

8шт.

38

L14453

BLOCK

Spacer, bucket rollback

2шт.

39

L41558

BLOCK

Bellcrank stop

2шт.

40

L14452

SHIM

SPARE PART Block

12шт.

41

L15800

PIN,50.8mm OD x 274.32mm L

Loader arm and, Serial Range: link-bucket

4шт.

42

26-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

4шт.

43

131-64

LOCK NUT,5/8"-11, GC

Hex

4шт.

44

REF

INSTRUCTION

BUCKET - loader (Parts list Figure 176)

1шт.
