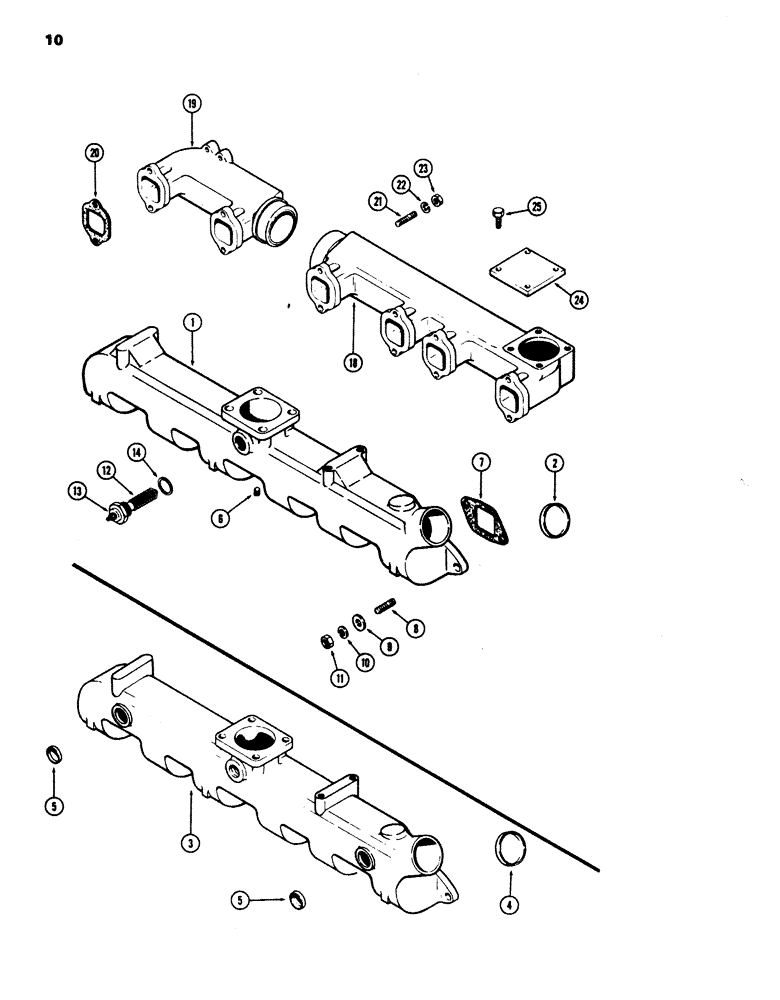

Запчасти Case W24 (010) - MANIFOLDS, (504B) DIESEL ENGINE (02) - ENGINE

1

A62845

MANIFOLD

ASSY. - intake (aluminum), Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type)

1шт.

3

A58660

MANIFOLD

ASSY. - intake (Cast Iron), Includes: Ref. 4 and 5

1шт.

4

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type)

1шт.

5

41-1020

PLUG,Cup, 1 1/4"

- intake manifold (1-1/4" cup type)

2шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - intake manifold (1/8" P.T., sq. hd.)

1шт.

7

A58662

MANIFOLD GASKET

- intake manifold

6шт.

8

A59077

STUD

- intake manifold (3/8" N.C. x 1-3/4")

12шт.

9

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

12шт.

10

92-6

LOCK WASHER,3/8"

12шт.

11

25-106

NUT,3/8"-16, G5

- intake manifold (3/8" N.C. hex.)

12шт.

12

A34278

HEATER

- intake manifold (24 V.)

1шт.

If Ref. 12 Heater is not used in Ref. 1 Manifold Assy, Use P/N L10283 1 1/4" Plug, with P/N A20916 Copper Gasket, to fill the hole in the manifold. Use P/N 221-841, 1/4" Plug to fill the hole in the P/N L10283 Plug.

1шт.

13

129-503

NUT,1/4"-20, Brass

1шт.

14

A20916

MANIFOLD GASKET

GASKET - intake manifold heater

1шт.

18

A58663

MANIFOLD

- exhaust, rear

1шт.

19

A58664

MANIFOLD

- exhaust, front

1шт.

20

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

21

A59077

STUD

- exhaust manifold (3/8" N.C. x 1-3/4")

12шт.

22

92-6

LOCK WASHER,3/8"

12шт.

23

131-903

NUT,3/8"-16

NUT - exhaust manifold (3/8" N.C. Seez-Pruf)

12шт.

24

A58664

MANIFOLD

COVER - exhaust manifold

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.
