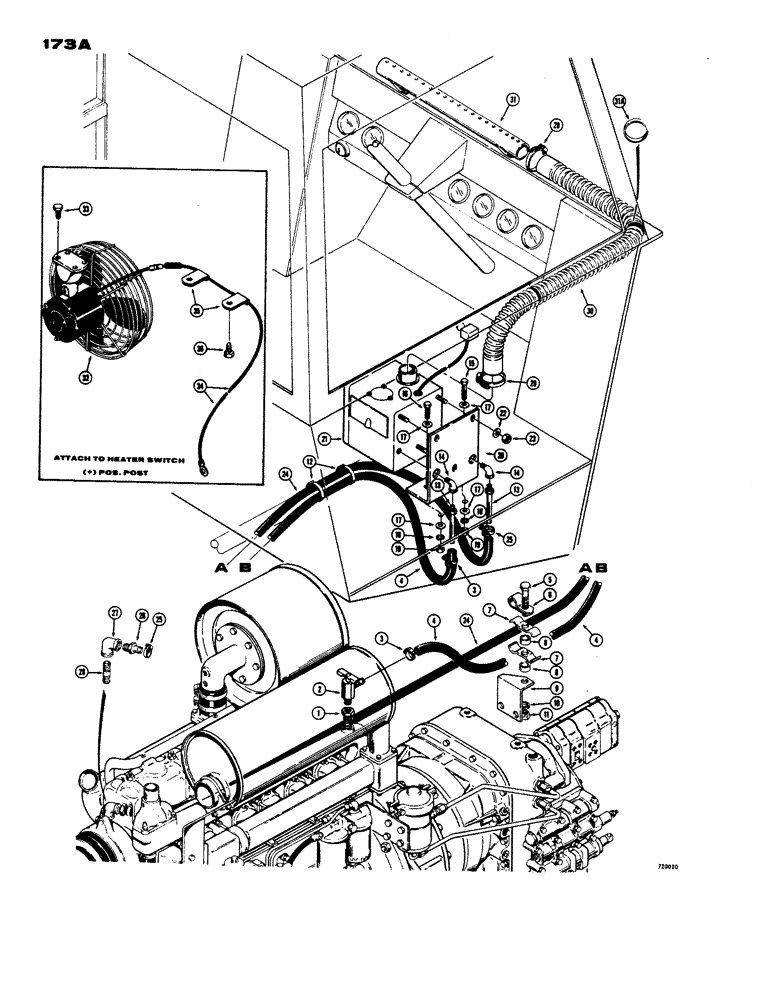

Запчасти Case W24 (173A) - HEATER AND DEFROSTER, FLOOR MOUNTED (09) - CHASSIS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

Bushing

1шт.

2

A16764

VALVE

Shutoff, water

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

4

L18327

HOSE,0.63" ID x 108.00", SAE 20R3

Low pressure, Inlet (Manifold to heater)

1шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

49838

CLAMP

Harness

1шт.

7

R15257

CLAMP

Hose

2шт.

8

D35217

BUSHING

SPACER - hose clamp

2шт.

9

L14560

BRACKET

Hose mounting, at transmission

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

Hex

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Heater hose

2шт.

13

L50774

TUBE

Engine to heater, at heater

2шт.

14

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

Street

2шт.

15

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Front, heater bracket)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Rear, heater mounting)

1шт.

17

95-6

WASHER,3/8"

Standard wrot

4шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

Hex

2шт.

20

L50198

SPARE PART Heater mounting

1шт.

21

REF

INSTRUCTION

HEATER - cab (Parts list Figure 173E)

1шт.

22

195-103

WASHER,5/16"

Plain (3/8") Zinc plated

3шт.

23

129-122

NUT,5/16"-24, G5

Heater mounting

3шт.

24

L18326

HOSE

Low pressure, outlet (heater to water pump)

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

26

217-124

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM - hose, brass

1шт.

27

221-1377

ELBOW,90 Degree, 1/2" NPT

Pipe

1шт.

28

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

1шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Models with defroster tube

2шт.

30

L50809

SPARE PART Defroster, models with tube

1шт.

31

L15350

TUBE

DEFROSTER - cab, models with tube

1шт.

31a

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon, models with defroster tube

2шт.

32

L48971

FAN

Defroster

1шт.

33

187-1509

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

Fan mounting, model with defroster

4шт.

34

L50066

SPARE PART Ignition switch to defroster fan

1шт.

35

L18299

CLAMP

Wire support, models with defroster fan

2шт.

36

187-1509

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

Models with defroster fan

2шт.
