(171G) - L50871 OPERATORS CAB, GLASS AND MOLDINGS

Запчасти Case W24 (171G) - L50871 OPERATORS CAB, GLASS AND MOLDINGS (09) - CHASSIS

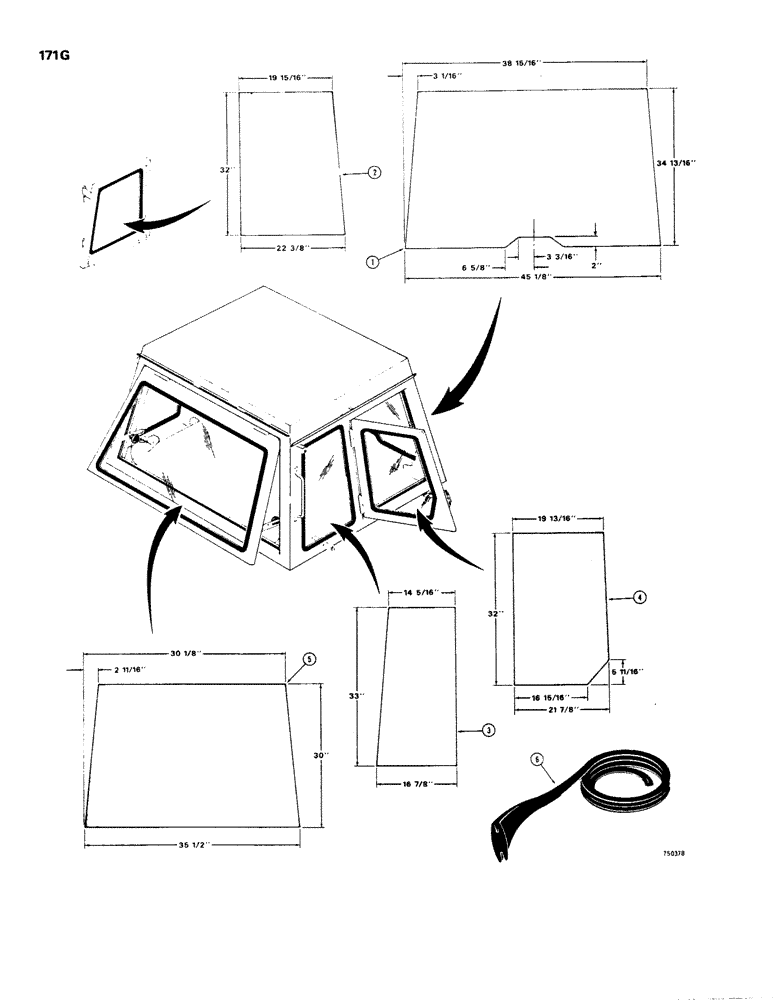

Схема запчастей Case W24 - (171G) - L50871 OPERATORS CAB, GLASS AND MOLDINGS (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L50871

CAB - operator's (ROPS), Includes Ref. 1 - 5

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - door window

1шт.

3

REF

INSTRUCTION

GLASS - side panel windows

2шт.

4

REF

INSTRUCTION

GLASS - RH front window

1шт.

5

REF

INSTRUCTION

GLASS - rear window

1шт.

6

L35717

GASKET

MOLDING MATERIAL - 50 ft. roll

1шт.
