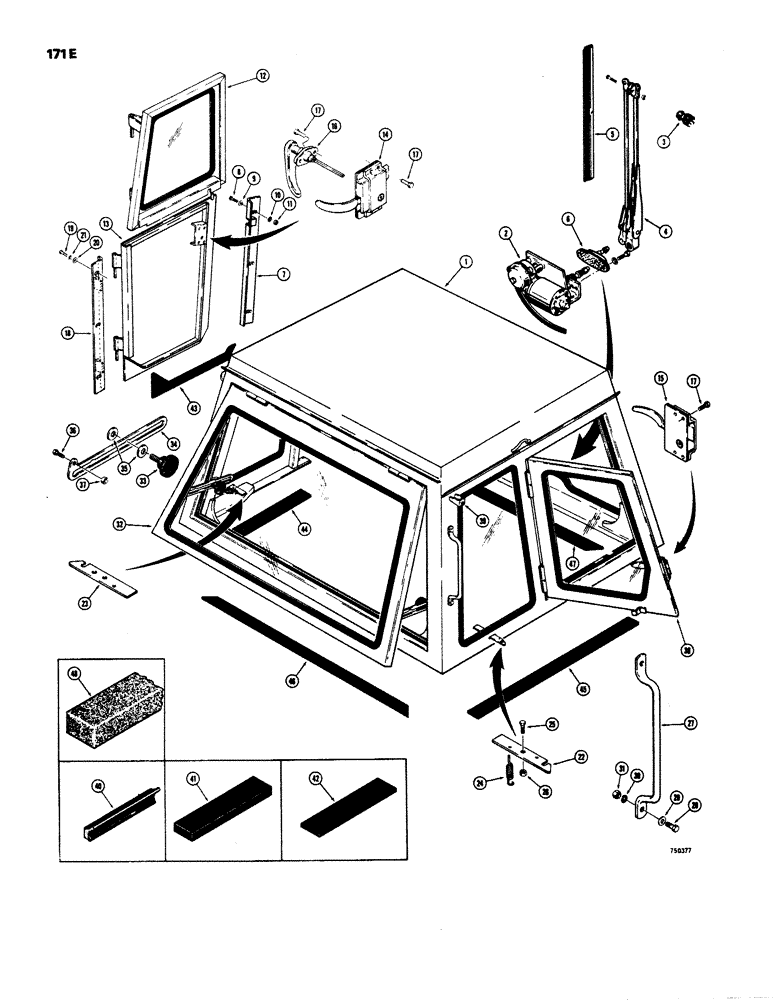

Запчасти Case W24 (171E) - L50871 OPERATORS CAB, DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

L50871

CAB - operators (Roll-Over Protection Sturcture), Includes: Ref. 1 - 40

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - operator's cab

1шт.

2

L35259

WIPER MOTOR

MOTOR - windshield wiper (24 volt) Includes mounting hardware ( replaced L35257 )

1шт.

3

L35743

SWITCH

- windshield wiper motor

1шт.

4

L35260

ARM

ASSEMBLY - wiper (20")

1шт.

5

L35261

BLADE

- wiper (20")

1шт.

6

L35753

ADAPTER

- double arm wiper (Includes mounting hardware)

1шт.

7

L35881

STRIKER - door

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

9

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

L35877

DOOR FRAME - upper ( replaced L33877 )

1шт.

13

L35880

DOOR - lower

1шт.

14

L35737

LATCH

- door, inside ( replaced L35738 )

1шт.

15

L35738

LATCH

- window, inside ( replaced L35737 )

1шт.

17

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self tapping (#10 x 3/4")

4шт.

18

L35882

BRACKET - lower, door hinge mounting

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

20

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

3шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

L35800

LATCH ASSY.

LATCH - window hold back

1шт.

23

L35884

LATCH - door hold back

1шт.

24

L35748

SPRING

- door hold back latch

2шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

L35746

HANDLE - grab

2шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

4шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

32

L35878

WINDOW FRAME - rear (Slide out )

1шт.

33

L30087

KNOB

- window hold out

2шт.

34

T42594

BRACE

ARM - window hold out

2шт.

35

195-104

WASHER,3/8"

- flat, window holdout

4шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

86625061

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20 NC) Zinc plated

2шт.

38

L35879

WINDOW FRAME - R.H. front

1шт.

39

L35891

BUMBER - rubber

1шт.

40

L35732

STRIP

WEATHER STRIP MATEERIAL - 50 ft. roll

1шт.

41

L35756

SEALING STRIP

RUBBER - adhesive, 50 ft. roll (3/8" x 1")

1шт.

42

L35819

RUBBER SEAL

RUBBER - adhesive, 50 ft. roll

1шт.

43

L35883

RUBBER MOUNTING MATERIAL - lower door

1шт.

44

L35887

RUBBER

MOUNTING - L.H. side (3/8" x 3" x 17-1/16")

1шт.

45

L38886

RUBBER MOUNTING - R.H. side (3/8" x 3" x 38-1/2")

1шт.

46

L35885

RUBBER MOUNTING - rear

1шт.

47

L35890

RUBBER MOUNTING - front

1шт.

48

L35876

PADS - mounting, floor (2) 1" x 2-1/4" x10" (4) 1" x 1-1/4" x 3-1/2" (1) 1" x 2-1/4" x 3-1/2" (1) 1" x 2-1/4" x 6" Glass and Molding: See figure 171H for dimensions of each window and proper molding.

1шт.
