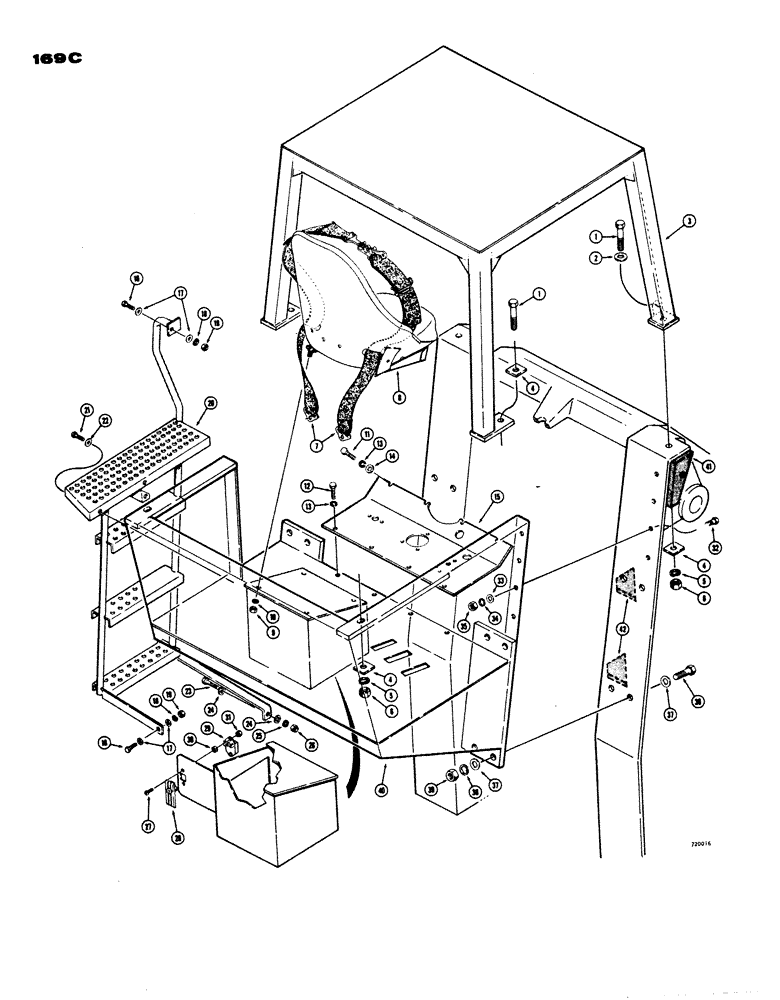

Запчасти Case W24 (169C) - OPERATORS COMPARTMENT AND LADDER, MODELS WITH ROLLOVER PROTECTION (09) - CHASSIS

1

113-916

HHCS - 1" 8NC x 3-1/4" (Zinc plated)

4шт.

2

195-2100

WASHER,1 1/32" x 2" x .238"

- plain (1")

2шт.

3

L48165

CANOPY - protection, roll over

1шт.

4

L48944

WASHER - special, canopy mounting

6шт.

5

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

6

129-110

NUT,1"-8, G5

4шт.

7

L50040

KIT

- seat belt (Parts list Figure 168)

1шт.

8

L48998

SEAT

ASSEMBLY - operator's (With seat belt slots) See Figure 168 for component parts

1шт.

9

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), Seat to compartment

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Upper floor plate mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Lower floor plate mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

95-6

WASHER,3/8"

- standard wrot () Upper bolts only 3/8"

4шт.

15

L15504

PLATE ASSY.

FLOOR PLATE - operator's compartment front

1шт.

16

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

(Upper hand rail bracket and lower ladder bracket, R.H. side to front frame) Hex, 3/8"-16 x 1 5/8", G5

2шт.

17

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16NC)

2шт.

20

L48592

LADDER - operator's compartment access

1шт.

21

187-1514

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW - self tapping, hex head (1/4" -2-NC x 5/8")

3шт.

22

95-4

WASHER,1/4"

- standard wrot () 1/4"

3шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16NC x 1-3/4" (Lower step bracket, L.H. side to front frame)

1шт.

24

195-6

WASHER,#6

- plain (3/8")

2шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16NC)

1шт.

27

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- sloted pan head (#8-32NC x 1/2")

2шт.

T31759

LOCK AND LATCH ASSEMBLY - compartment box door, Includes: Ref. 28 and 28

1шт.

28

NSS

NOT SOLD SEPARAT

LOCK - compartment box door

1шт.

29

NSS

NOT SOLD SEPARAT

LATCH - compartment box door

1шт.

30

L40574

SPACER - door latch

2шт.

31

131-541

NUT - hex. (#8-32NC)

2шт.

32

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" -13NC x 1-3/4" (Upper R.H. compartment to front frame)

4шт.

33

195-2052

WASHER,17/32" x 1 1/8" x .180"

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

4шт.

36

113-906

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8, Full Thd

HHCS - 1" - 8 NC x 2-3/4" (Zinc plated)

8шт.

37

195-111

WASHER,1"

- plain () 1"

16шт.

38

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.

39

129-110

NUT,1"-8, G5

8шт.

40

L47982

COMPARTMENT ASSEMBLY - operator's

1шт.

41

L46785

GUSSET - front frame, upper

2шт.

42

L48457

GUSSET - front frame, lower

4шт.
