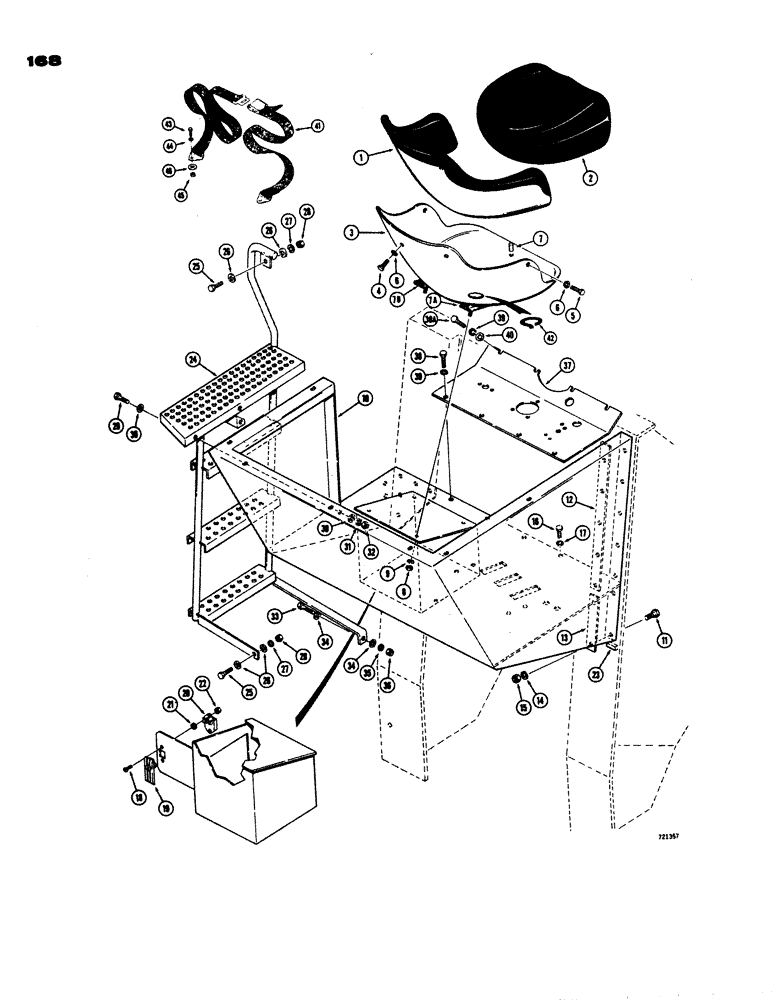

Запчасти Case W24 (168) - OPERATORS COMPARTMENT AND LADDER, MODELS WITHOUT ROLLOVER PROTECTION (09) - CHASSIS

L12907

SEAT ASSEMBLY - operator's (When stock is exhausted, order L46066 seat for service) Without seat belt slots (Before tractor Sn 9107001), Includes: Ref. 1 - 7

1шт.

1

L31219

BACKREST

- seat

1шт.

2

L31218

SEAT CUSHION

CUSHION - seat

1шт.

3

L31220

SHELL - seat (Without seat belt slots)

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

195-521

WASHER,5/16", SAE

- plain (3/8") Zinc plated

5шт.

7

L30534

X

PIN - cushion alignment

1шт.

L46066

SEAT

ASSEMBLY - operator's (Without seat belt slots) Before tractor Sn. 9107001, Includes: Ref. 1 - 7C

1шт.

L48998

SEAT

ASSEMBLY - operator's (With seat belt slots) Tractor Sn. 9107001 to 9109176, Includes: Ref. 1 - 7C

1шт.

L53586

SEAT

ASSEMBLY - operator's (with seat belt slots) Tractor Sn. 9109176 and after, Includes: Ref. 1 - 7C

1шт.

1

L32868

SEAT

BACKREST - seat

1шт.

2

L32869

CUSHION

- seat

1шт.

3

L31220

SHELL - seat (Without seat belt slots)

1шт.

3

L33740

SHELL - seat (With seat belt slots)

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

5

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

6

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

5шт.

7

L32870

PIN

- cushion alignment

2шт.

7a

L358322

ADJUSTER - seat, R.H. (with lever) L53586 seat only

1шт.

7b

A64818

ADJUSTER

- seat, L.H. (L53586 seat only)

1шт.

7c

L35323

CONNECTING LINK

LINK - connecting, adjusters (Not shown) L53586 seat only

1шт.

8

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), Before S/N 9109176

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

S/N 9109176 and after 5/16"-18, G5

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

L26866

COMPARTMENT ASSEMBLY - operator's (Used on models with side mounted heaters)

1шт.

10

L50835

COMPARTMENT ASSEMBLY - operator's (Used on all models except those with side mounted heaters)

1шт.

11

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Compartment to front frame) Hex, 1/2"-13 x 2", G5

12шт.

11a

195-2052

WASHER,17/32" x 1 1/8" x .180"

12шт.

12

L26878

STRIP - compartment mounting, upper

1шт.

13

L26877

STRIP

- compartment mounting, lower

1шт.

14

92-8

LOCK WASHER,1/2"

12шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

12шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Compartment floor to front frame Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- slotted pan head (#8 - 32 NC x 1/2")

2шт.

L31759

LOCK AND LATCH ASSEMBLY - compartment box door, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

LOCK - compartment box door

1шт.

20

NSS

NOT SOLD SEPARAT

LATCH - compartment box door

1шт.

21

L40574

SPACER - door latch

2шт.

22

131-541

NUT - hex. (#8 -32 NC)

2шт.

23

NSS

NOT SOLD SEPARAT

SHEAR BLOCK - front, frame (Below operator's compartment)

2шт.

24

L16829

LADDER - operator's compartment access

1шт.

25

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

(Upper hand rail bracket and lower ladder bracket, R.H. side to front frame) Hex, 3/8"-16 x 1 5/8", G5

2шт.

26

95-6

WASHER,3/8"

- plan () 3/8"

4шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

29

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8" (Top step and bracket to compartment)

3шт.

30

95-6

WASHER,3/8"

- plain () 3/8"

6шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Lower step bracket, L.H. side to front frame) Hex, 3/8"-16 x 1 3/4", G5

1шт.

34

195-6

WASHER,#6

- plain (3/8")

2шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

37

L15504

PLATE ASSY.

FLOOR PLATE - operator's compartment, front

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Lower floor plate mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

38a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Upper floor plate mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

39

92-6

LOCK WASHER,3/8"

8шт.

40

95-6

WASHER,3/8"

- standard wrot () Upper bolts only 3/8"

4шт.

L50040

KIT

- seat belt, 3" webbing, Includes: Ref. 41 - 46

1шт.

41

D60615

SAFETY BELT ,3.00" W

3.00" W

1шт.

42

D35424

LINING

TRIM - seat shell

1шт.

43

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

44

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

45

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

46

DR10768

WASHER

- seat belt

2шт.

23

NSS

NOT SOLD SEPARAT

SHEAR BLOCK - front, frame (Below operator's compartment)

2шт.
