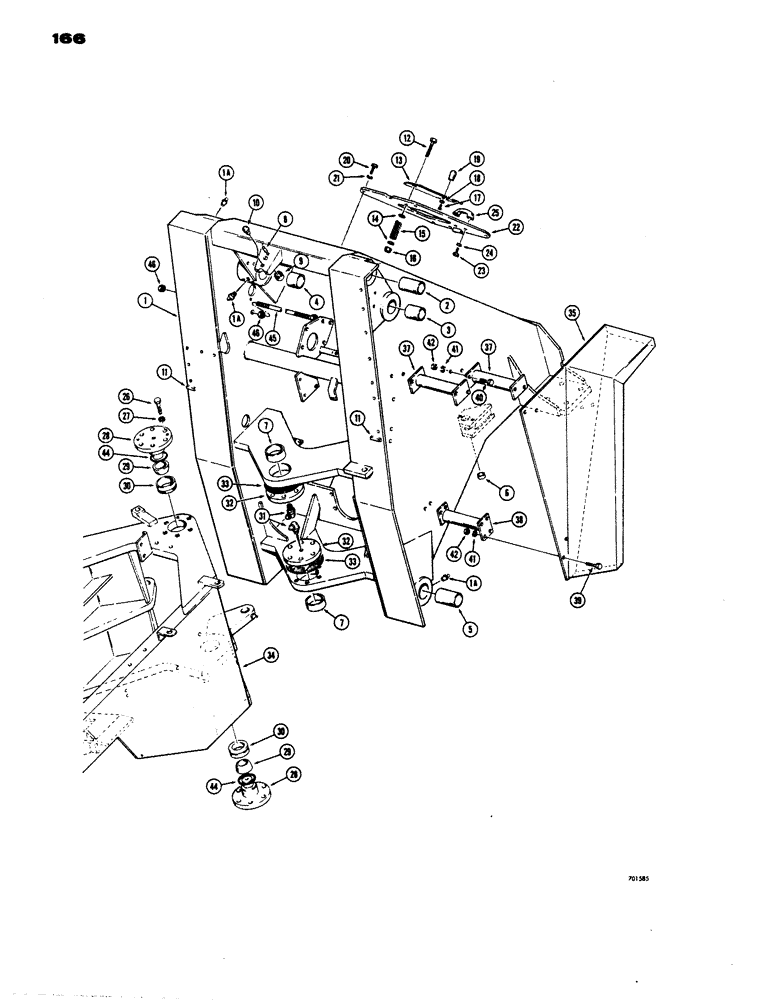

Запчасти Case W24 (166) - FRONT FRAME AND FENDERS (09) - CHASSIS

L17222

FRONT FRAME ASSEMBLY - articulated loader (Before tractor S/N 9105012) Order L45750 frame assembly and Refs. 20 - 38 on figure 139 for service), Includes Ref. 1 - 7

1шт.

L45750

FRONT FRAME ASSEMBLY - articulated loader (Tractor S/N 9105102 thru 9105061), Includes Ref. 1 - 7

1шт.

L26910

SPARE PART FRONT FRAME ASSEMBLY - articulated loader (Tractor S/N 9105061 and after), Includes Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - articulatd loader

1шт.

1a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

6шт.

2

L26673

BUSHING

Tilt cylinder pivot

2шт.

3

L15526

BUSHING

Lift frame pivot, outer

2шт.

4

L15527

BUSHING

Lift frame pivot, inner

2шт.

5

L19473

BUSHING

Lift cylinder pivot

2шт.

6

L14109

BUSHING

Steering cylinder pivot

4шт.

7

L17466

BUSHING,100.05mm ID x 112.82mm OD x 37.4mm L

Frame pivot

2шт.

8

135-539

SPARE PART 1/8" dia. x 3/4" (With L17222 frame only)

1шт.

9

REF

INSTRUCTION

BUSHING - lever, self-aligning (With L17222 frame only) See figure 81 for proper bushing

1шт.

10

L12733

SPACER

STOP - transmission shift lever (With L17222 frame only)

1шт.

11

NSS

NOT SOLD SEPARAT

SHEAR BLOCK - front frame

2шт.

12

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

(Inspection cover mounting)

1шт.

13

L15712

COVER

Inspection

1шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - standard wrot (5/16")

2шт.

15

A33749

SPRING

Cover

1шт.

16

131-4

LOCK NUT,5/16"-18, GB

1шт.

17

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

Knob mtg.

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

A14051

GRIP

KNOB - inspection cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Front cover mounting

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

L15699

SPARE PART Front frame

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Handle mounting)

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

A23725

HANDLE

Cover

1шт.

26

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

(Spindle mounting)

24шт.

27

92-10

LOCK WASHER,5/8"

24шт.

L17468

SPINDLE

ASSEMBLY - frame pivot, Includes Ref. 28 and 29

2шт.

28

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot, Includes Ref. 29

1шт.

29

L17462

THRUST BEARING

Thrust, inner ring

1шт.

30

L17463

THRUST BEARING

Thrust, outer ring

2шт.

31

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

32

L17465

CAP

Thrust plate, spindle

2шт.

33

L17318

SHIM,113.54mm ID x 177.8mm OD x 0.56mm Thk

Thrust bearing pre-load (.0149" thick)

1шт.

33

L17213

SHIM,113.5mm ID x 177.8mm OD x 0.91mm Thk

Thrust bearing pre-load

1шт.

33

L17212

SHIM,113.5mm ID x 177.8mm OD x 1.52mm Thk

Thrust bearing pre-load

1шт.

34

REF

INSTRUCTION

FRAME ASSEMBLY - rear (See Figure 156 for related parts)

1шт.

35

L16988

SPARE PART Front, RH

1шт.

36

L16989

FENDER ASSY.

Front, LH (Not illustrated)

1шт.

37

L17070

PIPE

BRACE - fender mounting (Top and center)

4шт.

38

L17215

PIPE CLAMP

BRACE - fender mounting (Bottom)

2шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fender to brace

12шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Brace to front frame)

12шт.

41

92-6

LOCK WASHER,3/8"

24шт.

42

25-106

NUT,3/8"-16, G5

Hex

24шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

2шт.

44

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - thrust bearing at spindle

2шт.

45

L43519

SPARE PART Support, steering bracket to side plate

1шт.

46

25-148

JAM NUT,Jam, 1/2"-13, G5

Hex

3шт.
