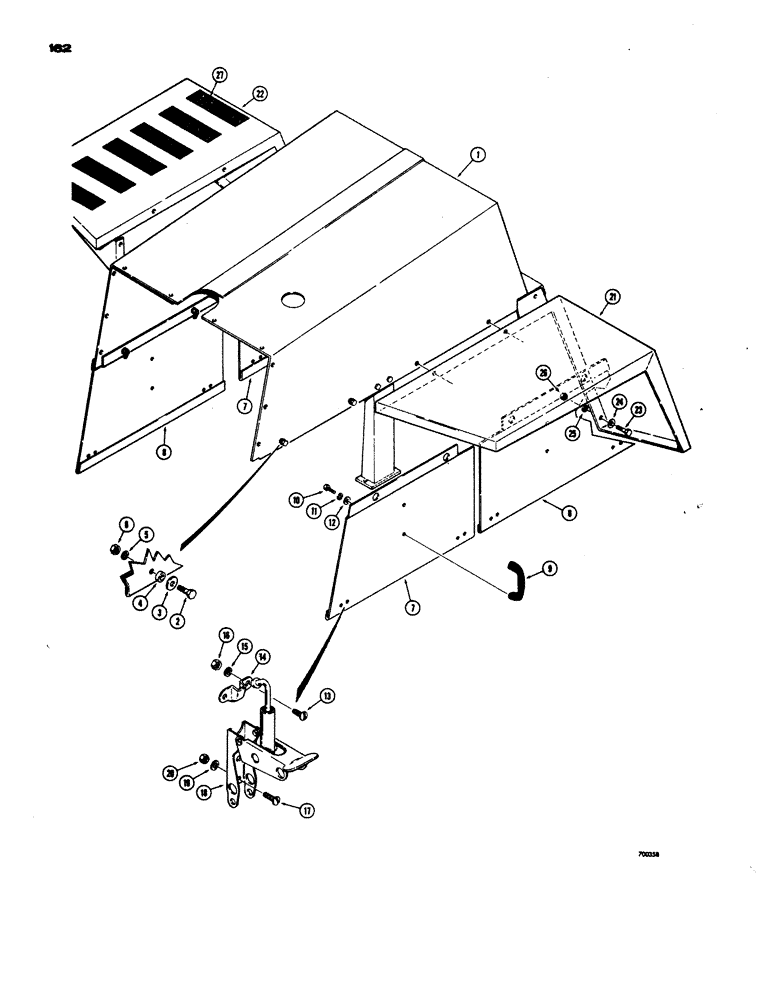

Запчасти Case W24 (162) - HOOD, REAR FENDERS AND SIDE PANELS (09) - CHASSIS

1

L16448

HOOD - engine

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 1-1/8" (Side panel mounting)

8шт.

3

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

4

L16674

SLEEVE

- panel support

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex.(3/8" - 16 NC)

8шт.

7

L16572

PANEL

- engine side (R.H. rear, L.H. front)

2шт.

8

L16573

PANEL

- engine side (L.H. rear, R.H. front)

2шт.

9

A23725

HANDLE

- engine side panel

4шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(Handle mounting) Hex, 5/16"-18 x 5/8", G5, Full Thd

8шт.

11

92-5

LOCK WASHER,5/16"

8шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

8шт.

13

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- machine, round head (#10 -24 NC x 7/16")

16шт.

14

A17237

HOOK

CATCH - side panel latch

8шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

10шт.

16

129-7

NUT,Hex, #10 - 24

- hex (#10 - 24 NC)

16шт.

17

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - machine, round head (#10 -24 NC x 3/4")

16шт.

18

L10473

LATCH

- engine side shields

8шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

16шт.

20

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

16шт.

21

L16962

FENDER

- rear, R.H.

1шт.

22

L16963

FENDER

- rear, L.H.

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Fender mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

16шт.

24

95-6

WASHER,3/8"

- plain () 3/8"

16шт.

25

92-6

LOCK WASHER,3/8"

16шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

16шт.

27

A55582

PAD

- non slip

12шт.
