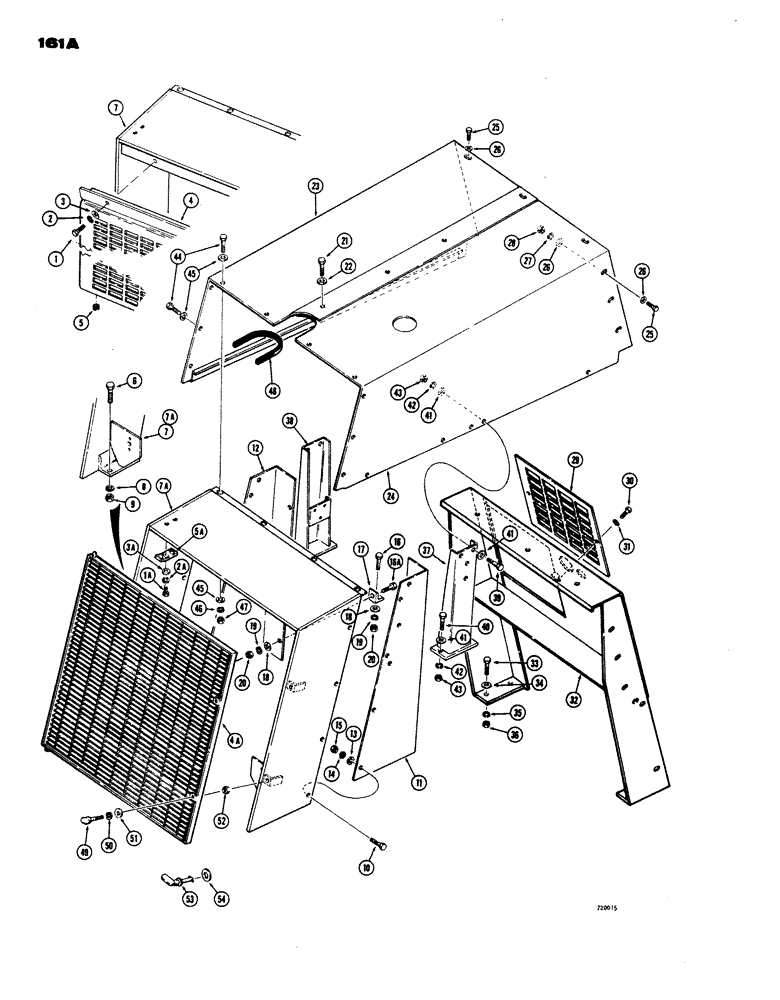

Запчасти Case W24 (161A) - GRILLE AND THREE PIECE HOOD, TRACTOR SN. 9107001 AND AFTER (09) - CHASSIS

1

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

L16187 Grille mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

1a

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(L48314 grille mounting) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

L16187 grille mtg. 3/8"

2шт.

2a

92-8

LOCK WASHER,1/2"

L48314 grille mtg. 1/2"

2шт.

3

95-6

WASHER,3/8"

- plain () L16187 grille mounting 3/8"

2шт.

3a

95-6

WASHER,3/8"

- plain (1/2") L48314 grille mounting

2шт.

4

L16187

GRILLE - radiator protecting (Sn., Serial Range: 9107001-9107023)

1шт.

4a

L48314

GRILLE

- radiator protecting (Sn. 910723 and after)

1шт.

5

49566

GROMMET

- grille retaining pin (L16187 grille only)

2шт.

5a

L45084

SUPPORT

- grille, upper (L48314 grille only)

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Frame mounting)

4шт.

7

L16189

FRAME - grille mounting (Sn., Serial Range: 9107001-9107023)

1шт.

7a

L48309

SUPPORT

FRAME - grille mounting (Sn. 9107023 to 9109117) Order L51199 frame, (2) L48699 washers and (2) L48760 retainers for service

1шт.

7b

L51199

FRAME - grille mounting (Sn. 9109117 and after as production item, Sn. 91007023 and after as service replacement) Not shown

1шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Radiator bracket to grille frame) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

11

L16230

BRACKET

- radiator mounting, R.H.

1шт.

12

L16231

BRACKET - radiator mounting, L.H.

1шт.

13

95-6

WASHER,3/8"

- plan () 3/8"

8шт.

14

92-6

LOCK WASHER,3/8"

8шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

16

13-161

LEVER

HHCS - 3/8" - 16 NC x 1"

2шт.

16a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

L19662

ANGLE

BRACKET - angle type (Radiator bracket to rear frame)

2шт.

18

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Hood to hood mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

22

195-26

WASHER

WASHER - plain (3/8")

3шт.

23

L46704

HOOD - engine, L.H.

1шт.

24

L46702

HOOD - engine, R.H.

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood to front post) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

9шт.

26

195-26

WASHER

WASHER - plain (3/8")

15шт.

27

92-6

LOCK WASHER,3/8"

6шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Hood to side of front post

6шт.

29

L16556

GRILLE ASSY

GRILLE - air cleaner protecting

1шт.

30

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(Grille mounting) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

L46698

SUPPORT - hood, front (Models with hole for fuel pressure guage)

1шт.

32

L52456

SUPPORT - hood, front (Models without hole for fuel pressure gauge) Not shown

1шт.

33

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

34

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

35

92-8

LOCK WASHER,1/2"

4шт.

36

25-018

NUT - hex. (1/2" - 13 NC)

4шт.

37

L16553

SUPPORT - hood, R.H.

1шт.

38

L18833

SUPPORT - hood, L.H.

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood to support) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Hood support to rear frame)

4шт.

41

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

42

92-6

LOCK WASHER,3/8"

8шт.

43

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood mounting, rear) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

10шт.

45

95-6

WASHER,3/8"

- plain () 3/8"

20шт.

46

92-6

LOCK WASHER,3/8"

10шт.

47

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

10шт.

48

D33534

MOLDING

TRIM - rubber (12-1/2" long) Radiator cap access

1шт.

49

183-127

SCREW - thumb (5/16" - 18 NC x 1-3/4") L48314 grill with L48309 frame

2шт.

50

92-5

LOCK WASHER,5/16"

L48314 grille 5/16"

2шт.

51

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16") L48314 grille

2шт.

52

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16" - 18 NC) L48314 grille

2шт.

53

L48699

RETAINER

- grille (L51199 frame with L48314 grille)

2шт.

54

L48760

WASHER

- retainer (L51199 frame with L48314 grille)

2шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Hood support to rear frame)

4шт.
