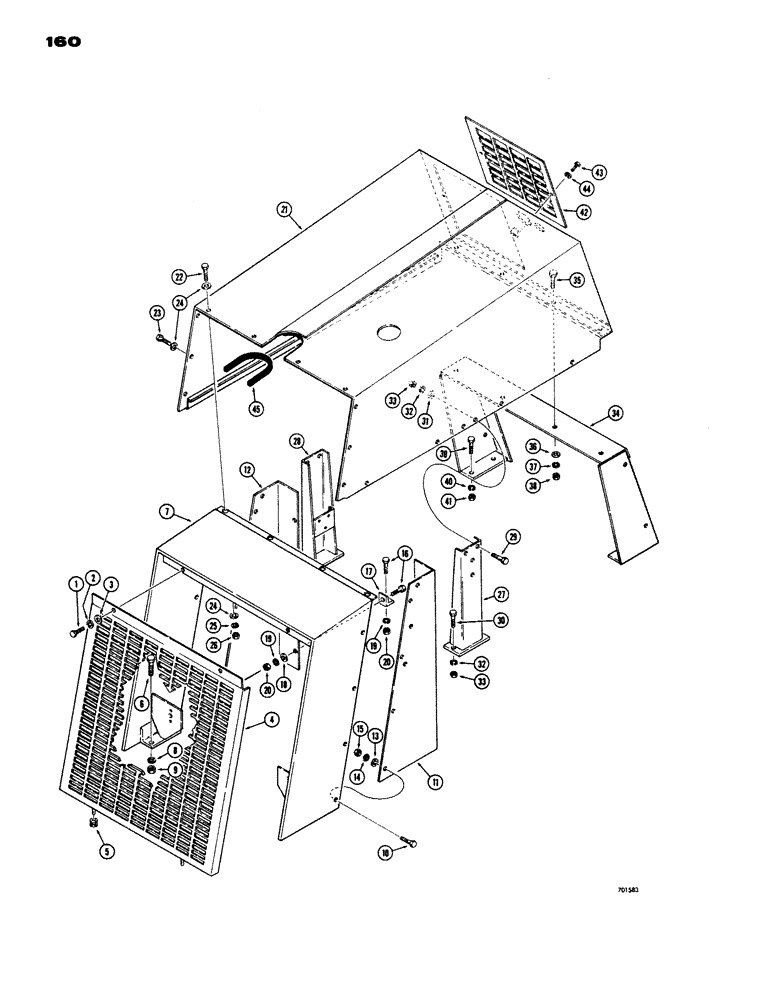

Запчасти Case W24 (160) - GRILLE AND HOOD, ONE PIECE HOOD, BEFORE TRACTOR SN. 9107001 (09) - CHASSIS

1

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Grille mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

4

L16187

GRILLE - radiator protecting

1шт.

5

49566

GROMMET

- grille retaining pin

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Frame mounting)

4шт.

7

L16189

FRAME - grille mounting

1шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Radiator bracket to grille frame) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

11

L16230

BRACKET

- radiator mounting, R.H.

1шт.

12

L16231

BRACKET - radiator mounting, L.H.

1шт.

13

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

14

92-6

LOCK WASHER,3/8"

8шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

L19662

ANGLE

BRACKET - angle type (Radiator bracket to rear frame)

2шт.

18

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

L16448

HOOD - engine

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hood mounting, top rear Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

23

13-260

HHCS - 3/8" - 16 NC x 1-1/4" (Hood mounting, side rear)

6шт.

24

95-6

WASHER,3/8"

- plain () 3/8"

20шт.

25

92-6

LOCK WASHER,3/8"

10шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

10шт.

27

L16553

SUPPORT - hood, R.H.

1шт.

28

L18833

SUPPORT - hood, L.H.

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood to support) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Hood support to rear frame)

4шт.

31

95-6

WASHER,3/8"

- plain () At hood only 3/8"

4шт.

32

92-6

LOCK WASHER,3/8"

8шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

34

L16549

SUPPORT - hood, front

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hood to support Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

36

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

40

92-8

LOCK WASHER,1/2"

4шт.

41

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

42

L16556

GRILLE ASSY

GRILLE - air cleaner protecting

1шт.

43

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(Grille mounting) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

44

92-5

LOCK WASHER,5/16"

2шт.

45

D33534

MOLDING

TRIM - rubber (12- 1/2" long) Radiator cap access

1шт.
