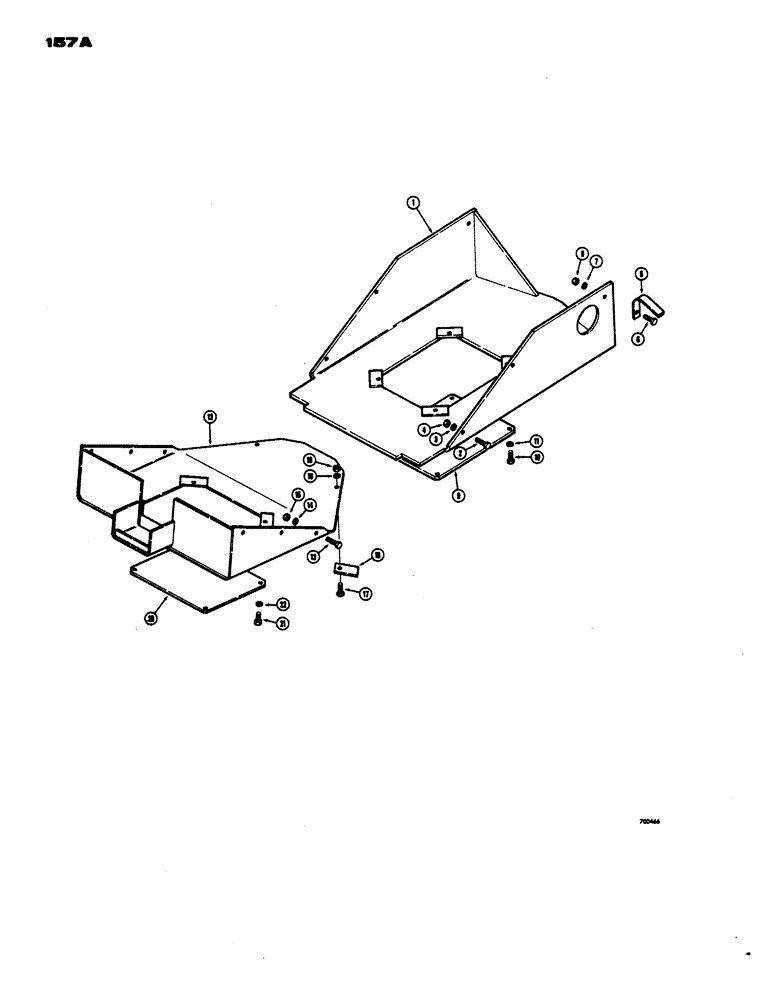

Запчасти Case W24 (157A) - FRONT AND REAR FRAME GUARDS (09) - CHASSIS

1

L18471

PAN - front frame, differential, parking brake and drive shaft guard

1шт.

2

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

5

L18476

BRACKET - mounting, front pan

2шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

9

L18436

COVER - access, front drive shaft

1шт.

10

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

L18465

PAN

- rear frame, differential and drive shaft guard

1шт.

13

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

6шт.

14

92-8

LOCK WASHER,1/2"

6шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

16

L18467

BRACKET - mounting, rear pan

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

20

L18436

COVER - access, rear drive shaft

1шт.

21

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.
