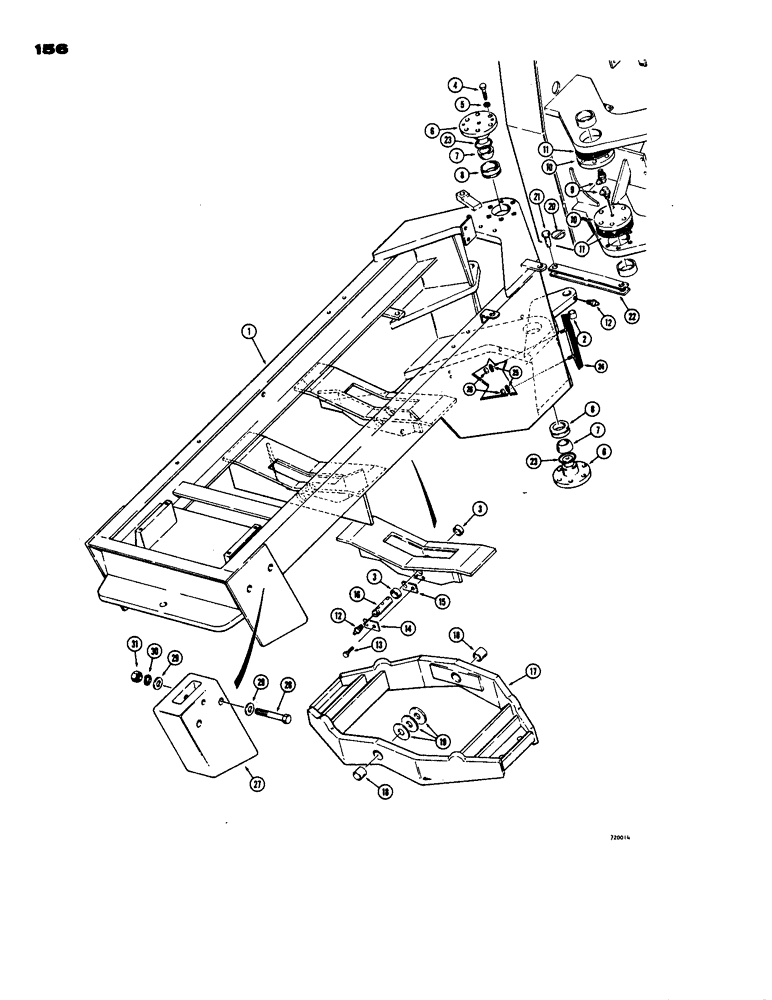

Запчасти Case W24 (156) - REAR FRAME AND TRUNNION (09) - CHASSIS

L15529

REAR FRAME ASSEMBLY - articulated loader (Before tractor Sn. 9105061), Includes: Ref. 1 - 3

1шт.

L46473

REAR FRAME ASSEMBLY - articulated loader (Tractor Sn. 9105061 and after), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

REAR FRAME - articulated loader

1шт.

2

L43735

BUSHING

- steering cylinder pivot, self aligning (Used before serial no. 9104517)

2шт.

2

L12570

BUSHING

- steering cylinder pivot, self-aligning (Serial no. 9104517 and after)

2шт.

3

L14098

BUSHING

- trunnion pivot

4шт.

4

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2" (Spindle mounting)

24шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

L17468

SPINDLE

ASSEMBLY - frame pivot, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot

1шт.

7

L17462

THRUST BEARING

- thrust, inner ring

1шт.

8

L17463

THRUST BEARING

- thrust, outer ring

2шт.

9

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree (1/4" NPT)

2шт.

10

L17465

CAP

- thrust plate, spindle

2шт.

11

L17318

SHIM,113.54mm ID x 177.8mm OD x 0.56mm Thk

- thrust bearing pre-load (.0149" thick)

1шт.

11

L17213

SHIM,113.5mm ID x 177.8mm OD x 0.91mm Thk

Thrust bearing pre-load .0359" Thk

1шт.

11

L17212

SHIM,113.5mm ID x 177.8mm OD x 1.52mm Thk

Thrust bearing pre-load .0598" Thk

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

13

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

14

L12823

LOCK

PLATE - bolt locking

2шт.

15

L12824

LOCK ASSY

PLATE - pin locking

2шт.

16

L48970

AXLE PIN

PIN - trunnion pivot

2шт.

16a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

L17194

TRUNNION ASSEMBLY - rear frame (Before tractor Sn. 9105061), Includes: Ref. 17 - 26

1шт.

L18748

TRUNNION

ASSEMBLY - rear frame (Tractor Sn. 9105061 to Sn. 910912) When stock is exhausted, order L52082 trunnion for service, Includes: Ref. 17 - 26

1шт.

L52082

TRUNNION

ASSEMBLY - rear frame (Tractor Sn. 9109122 and after), Includes: Ref. 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

18

L14138

BUSHING

- trunnion

2шт.

19

L47423

WASHER

- thrust, trunnion (1/8" thick)

1шт.

19

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

- thrust, trunnion (3/16" thick)

1шт.

19

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

- thrust, trunnion (1/4" thick)

1шт.

20

A30338

PIN

- klik

2шт.

21

L14050

PIN

- safety link mounting

2шт.

22

L16741

STEM

LINK - safety, front to rear frame

1шт.

23

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O" ring, thrust bearing at spindle

2шт.

24

D40469

SHOE (ASSY)

SHOE - track, rubber

2шт.

25

92-7

LOCK WASHER,7/16"

4шт.

26

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex., jam (7/16" - 20 NF)

4шт.

27

L47367

COUNTERWEIGHT - rear frame, 500 pound

2шт.

28

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

HHCS - 1" - 8NC x 9", counterweight

4шт.

29

195-53

WASHER,1" x 2" x .134"

- plain (1"), counterweight

8шт.

30

92-16

LOCK WASHER,1"

WASHER, LOCK, , Counterweight 1"

4шт.

31

25-1016

NUT,1"-8, G5

Counterweight 1"-8, G5

4шт.
