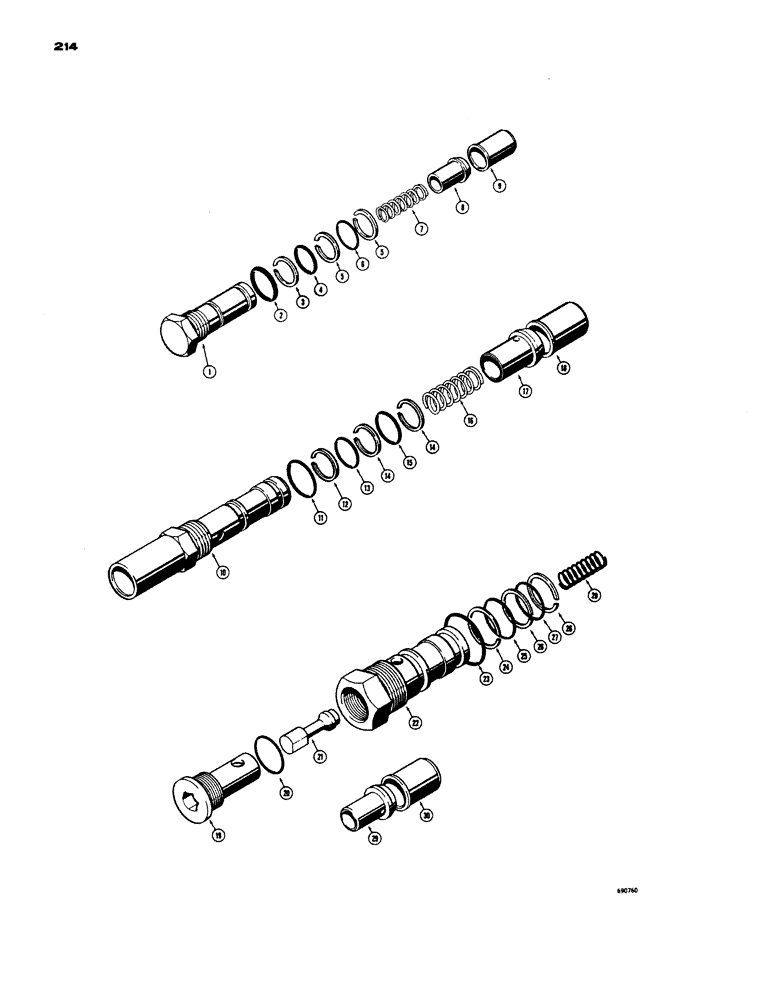

Запчасти Case W24 (214) - LOADER CONTROL VALVE, CHECK VALVE (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE - check, Includes: Ref. 1 - 9

1-2шт.

1

L32632

VALVE

CAP - check valve

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Outer)

1шт.

3

A41346

RING

- backup, center "O"ring seal

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Center)

1шт.

5

G32626

RING

- backup, inner "O"ring seal

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Inner)

1шт.

7

D48818

SPRING

- check valve

1шт.

8

L32622

VALVE POPPET

POPPET - check valve

1шт.

9

L32631

VALVE

SEAT - check valve

1шт.

L32633

VALVE

ASSEMBLY - secondary relief, Includes: Ref. 10 - 18

2-3шт.

10

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - valve, secondary relief

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Outer), secondary relief

1шт.

12

A41346

RING

- backup, center "O"ring seal, secondary relief valve

1шт.

13

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Center), secondary relief

1шт.

14

G32626

RING

- backup, inner "O"ring seal, secondary relief valve

2шт.

15

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Inner), secondary relief

1шт.

16

D48818

SPRING

- secondary relief valve

1шт.

17

L32622

VALVE POPPET

POPPET - secondary relief valve

1шт.

18

L32631

VALVE

SEAT - secondary relief valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, regeneration, Includes: Ref. 19 - 30

1шт.

19

L32628

PLUG

- regeneration check valve

1шт.

21

L32626

SPOOL

POPPET - small, regeneration check valve

1шт.

22

L32627

VALVE

CAP - regeneration check valve

1шт.

23

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Outer), regeneration check

1шт.

24

A41346

RING

- backup, center "O"ring seal, regeneration check valve

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Center), regeneration check

1шт.

26

G32626

RING

- backup, inner "O"ring seal, regeneration check valve

2шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Inner), regeneration check

1шт.

28

D48818

SPRING

- regeneration check valve

1шт.

29

L32622

VALVE POPPET

POPPET - regeneration check valve

1шт.

30

L32631

VALVE

SEAT - regeneration check valve

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, plug, regeneration check valve

1шт.
