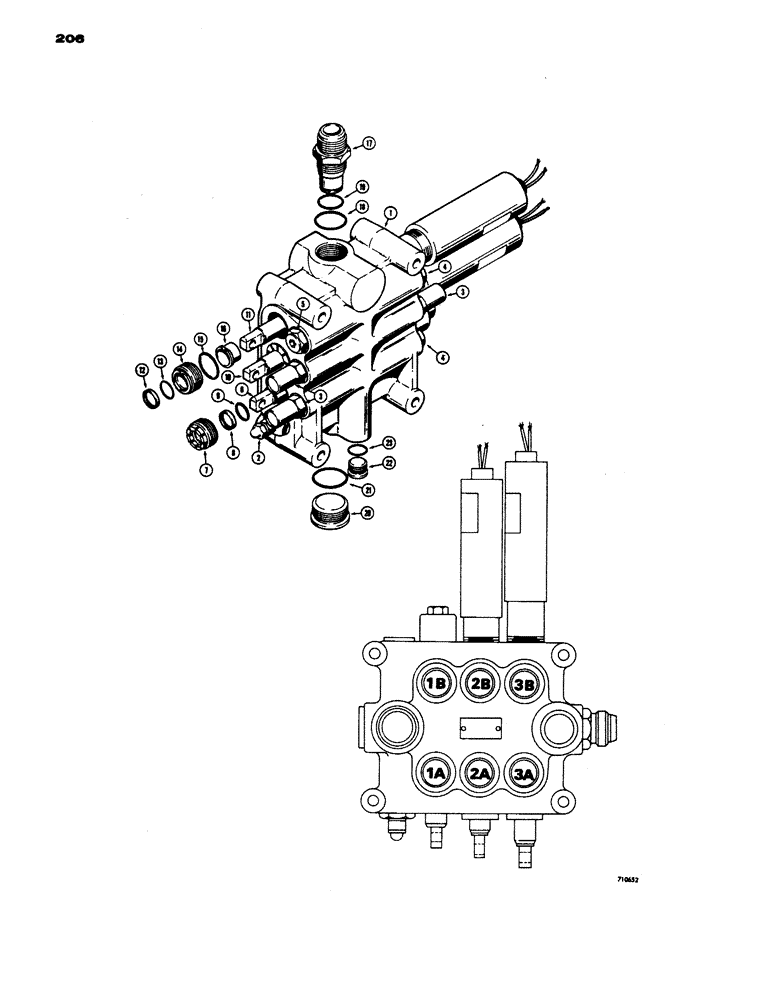

Запчасти Case W24 (206) - L51307 LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L51307

LOCK VALVE

VALVE - loader control, 3 spool, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 210)

1шт.

3

L32633

VALVE

- secondary relief (Used in ports 1A, 2A and 2B) Parts list Figure 214

3шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check (Used in ports 1B and 3B) Parts list Figure 214

2шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, regeneration (Used in port 3A) Parts list Figure 214

1шт.

6

L32592

SPOOL

- valve, Drott clam (Parts list Figure 210)

1шт.

6

L32593

POINT

SPOOL - valve, Drott clam (Parts list Figure 210)

1шт.

6

L32594

SPOOL

- valve, Drott clam (Parts list Figure 210)

1шт.

6

L32595

SPOOL

- valve, Drott clam (Parts list Figure 210)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - Drott clam spool, Includes: Ref. 7 - 9

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring, seal

1шт.

10

L33857

SPOOL

- valve, tilt (Parts list Figure 208)

1шт.

10

L33865

SPOOL

- valve, tilt (Parts list Figure 208)

1шт.

10

11125221

BOLT,Hex, M20 x 75, 8.8

SPOOL - valvetilt (Parts list Figure 208)

1шт.

10

L33867

SPOOL

- valve, tilt (Parts list Figure 208)

1шт.

11

L33858

SPOOL

- valve, lift (Parts list Figure 212)

1шт.

11

L33868

SPOOL

- valve, lift (Parts list Figure 212)

1шт.

11

L33869

SPOOL

- valve, lift (Parts list Figure 212)

1шт.

11

L33870

SPOOL

- valve, lift (parts list Figure 212)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes: Ref. 12 - 16

1шт.

12

A28211

OIL SEAL

WIPER - spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring, small

1шт.

14

L32612

RETAINER

- seal

1шт.

15

L32613

O-RING

SEAL - "O"ring, large

1шт.

16

L32611

SLEEVE

- spool

1шт.

L32605

FITTING

ASSEMBLY - high pressure carry over, Includes: Ref. 17 - 23

1шт.

17

NSS

NOT SOLD SEPARAT

FITTING - high pressure carry over

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

19

A15915

X

SEAL - "O"ring, small

1шт.

20

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 21

1шт.

21

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

22

86625138

PLUG,7/18" - 14

Pipe, Includes Ref. 23 Hex Soc, 7/8"-14 ORB

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
