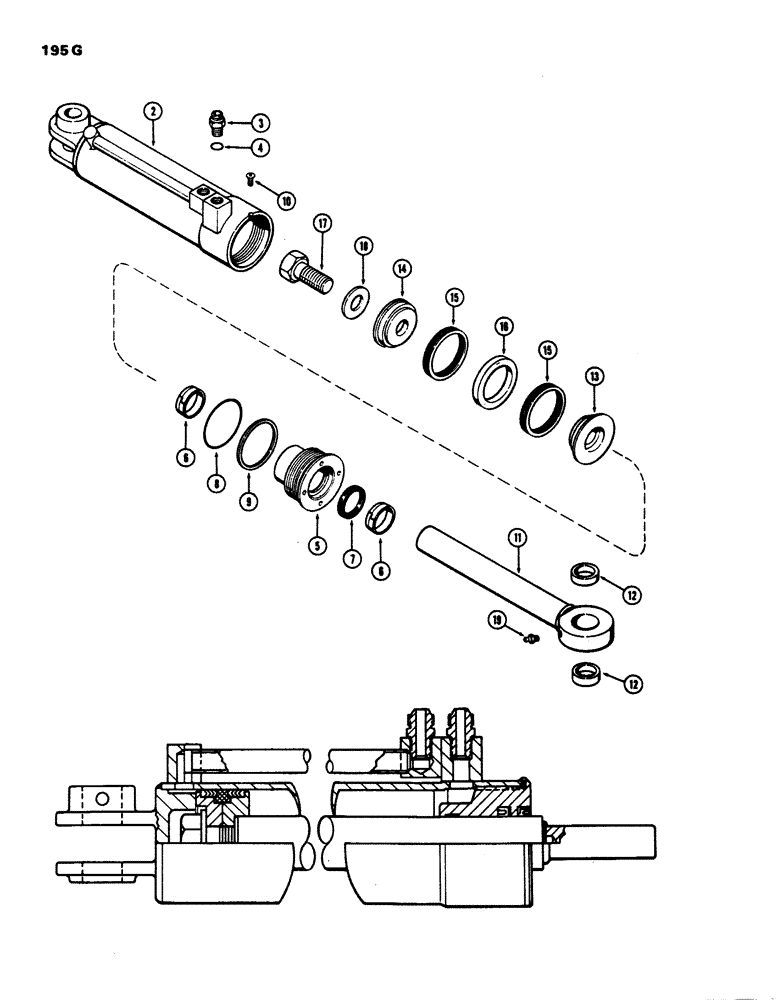

Запчасти Case W24 (195G) - G31961 AND G31962 CLAM CYLINDERS, 4" DIA. CYLINDER WITH 10" STROKE W/SPLIT OUTER PISTON ROD WIPER (08) - HYDRAULICS

G31961

CYLINDER ASSY. - left hand (Order G32671), Includes: Ref. 2 - 19

1шт.

G31962

CYLINDER ASSY. - right hand (Order G32672), Includes: Ref. 2 - 19

1шт.

2

G31964

HYD TUBE,18.69" L

TUBE - cylinder, right hand

1шт.

2

G31965

HYD TUBE

TUBE - cylinder, left hand

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Assy, Incl. Ref. 4 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 1 x 3/32")

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G32737) (See Figure 195I)

1шт.

6

D27380

SCRAPER RING

WIPER - piston rod, inner and outer

2шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

9

D36095

BACK-UP RING

- gland "O" ring back-up (leather)

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

G31974

ROD

ASSY. - piston (2" dia.), Includes: Ref. 12

1шт.

12

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

13

D28371

PISTON

- split (rod end)

1шт.

14

D28370

PISTON

- split (bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" Type)

2шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

18

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
