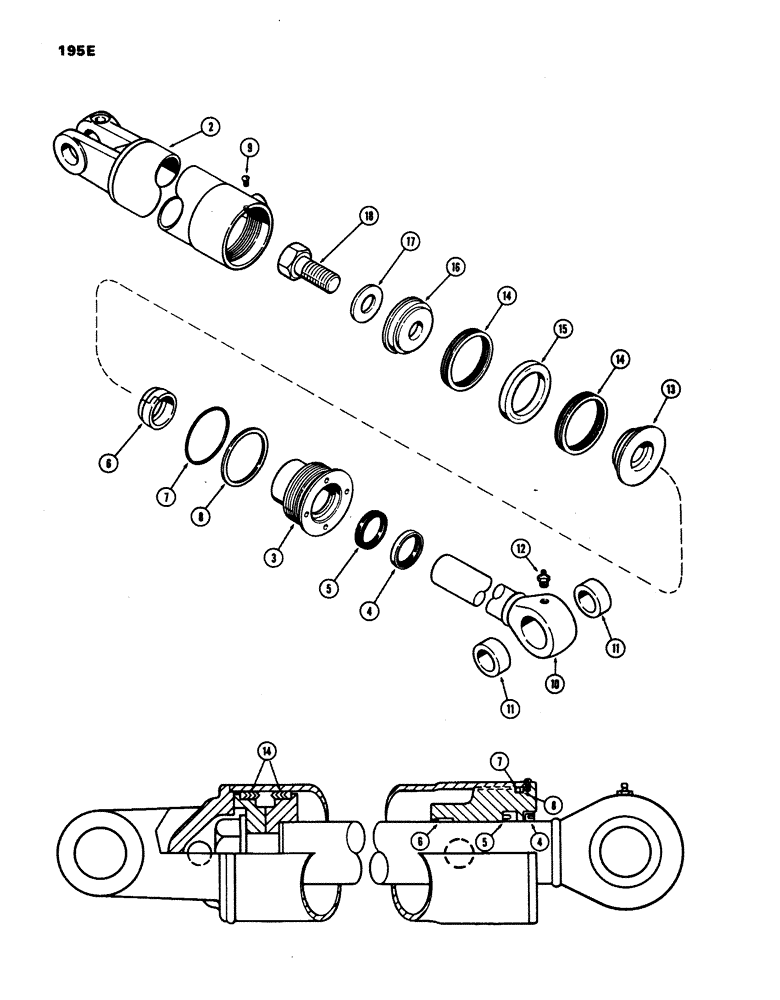

Запчасти Case W24 (195E) - G32388 CLAM CYLINDER, 4" DIA. CYLINDER WITH 10-1/2" STROKE (08) - HYDRAULICS

G32388

CYLINDER

ASSY. - clam, Includes: Ref. 2 - 18

2шт.

2

G32346

JACK BODY,20" L

TUBE - cylinder

1шт.

G32737

GLAND

ASSY., Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

95144

BALL BEARING

WIPER - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32299.

1шт.

5

D36971

RING

SEAL - piston rod (2/2-1/2 x 13/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G32299.

1шт.

6

D27380

SCRAPER RING

WIPER - piston rod, inner

1шт.

Part of Cylinder Repair Seal Kit P/N G32299.

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32299.

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32299.

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

G32248

ROD

ASSY. - piston (2" dia.), Includes: Ref. 11

1шт.

11

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

13

D46424

PISTON

- split (rod end)

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" Type)

2шт.

Part of Cylinder Repair Seal Kit P/N G32299.

1шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

16

D46930

PISTON

- split (bolt end)

1шт.

17

D36434

WASHER

- piston retainer (1-5/16 x 2-1/2 x 5/32")

1шт.

18

D31642

BOLT

- piston retaining (1-1/4 x 2-1/2" N.F. hex.)

1шт.

G32299

KIT

SEAL KIT - cylinder repair, Includes: Ref. 4 - 8 and 14

1шт.
