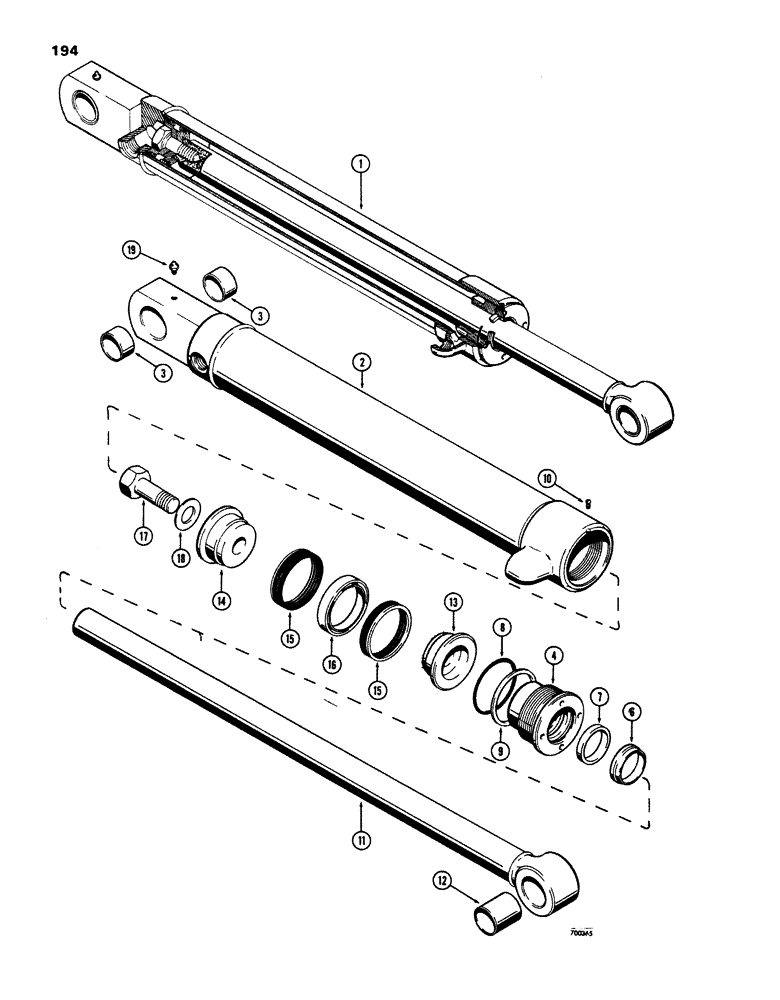

Запчасти Case W24 (194) - D46170 LOADER TILT CYLINDER, 4-1/2" DIA. CYLINDER WITH 29-1/2 STROKE W/STEP TYPE OUTER ROD WIPER (08) - HYDRAULICS

1

D46170

SPARE PART

CYLINDER ASSY. - tilt, Includes: Ref. 2 - 19

2шт.

2

D46166

TUBE

ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- tube

2шт.

4

D46157

HEAD

GLAND ASSEMBLY - w/bushing (Order G32741) (See Figure 195A)

1шт.

D48414

GLAND

SEAL KIT - gland repair, Includes: Ref. 6 - 10

1шт.

6

D43162

WIPER

- piston rod, outer (step type) (2-1/2 x 3 x 3/8")

1шт.

7

D45571

ROD

SEAL - piston rod (2-1/2 x 3 x 7/16"J)

1шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

9

D42452

RING

- gland "O" ring back-up

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x1/4" self-tapping)

1шт.

11

D46161

PISTON ROD

ROD ASSY. - piston (2-1/2" dia.), Includes: Ref. 12

1шт.

12

D47245

BUSHING

- piston rod

1шт.

13

D46162

PISTON

- split (rod end)

1шт.

14

D38934

PISTON

- split (bolt end)

1шт.

15

D47205

PACKING

ASSY. - piston ("V" Type)

2шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

18

D95033

WASHER

- piston bolt (1-1/4 x 2-1/2 x 3/16")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
