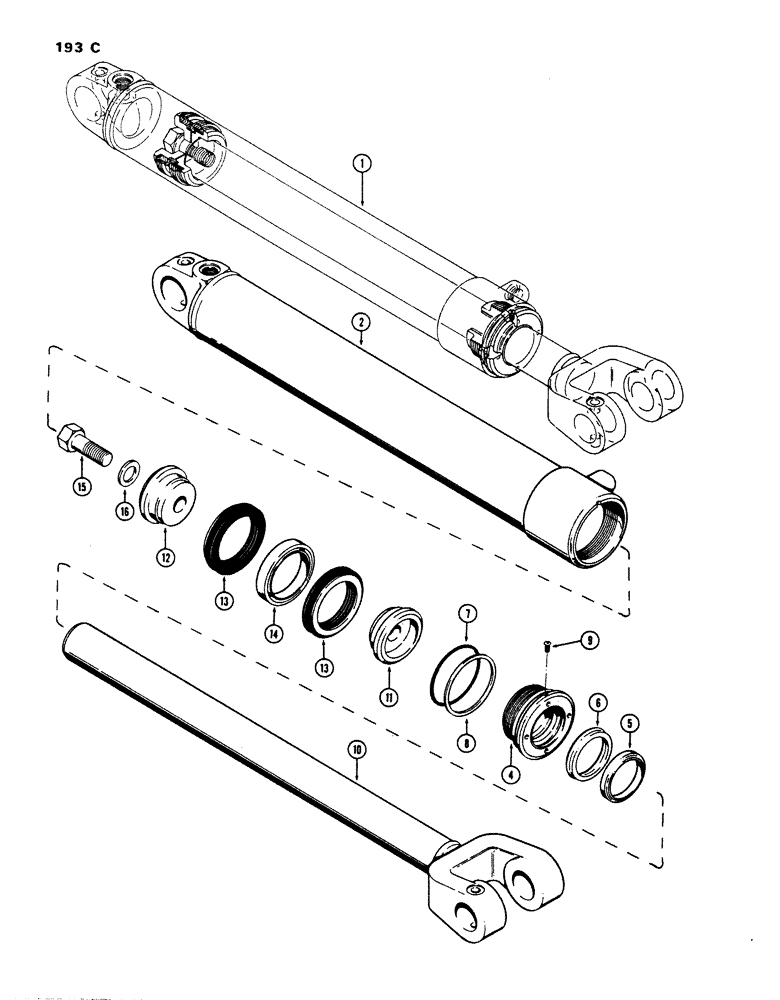

Запчасти Case W24 (193C) - G32693 & G32694 LOADER LIFT CYL,5" DIA. CYL W/34-1/4" STROKE W/U0TYPE OUTER ROD WIPER & 2 PIECE (08) - HYDRAULICS

1

G32693

CYLINDER

ASSY. - lift, left hand, Includes: Ref. 2 - 16

1шт.

1

G32694

CYLINDER ASSY.

- lift, right hand, Includes: Ref. 2 - 16

1шт.

2

G33805

TUBE

- cylinder, left hand

1шт.

2

G33804

TUBE,43.93" L

- cylinder, right hand

1шт.

G32803

GLAND

ASSY. - w/bushing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95148

WIPER SEAL

WIPER - piston rod, outer (3 x 3-1/2 x 5/16"J)

1шт.

Part of Cylinder Repair Seal Kit P/N G32668.

1шт.

6

D45572

ROD

SEAL - piston rod (3 x 3-1/2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32668.

1шт.

7

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - gland (5 x 5-1/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32668.

1шт.

8

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G32668.

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

G34135

ROD

- piston (3" dia.)

1шт.

11

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (rod end)

1шт.

12

D46932

PISTON

- split (bolt end)

1шт.

13

D47206

PACKING

ASSY. - piston ("V" Type)

2шт.

Part of Cylinder Repair Seal Kit P/N G32668.

1шт.

14

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

15

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

- piston (1-1/4 x 3-1/2" N.F. hex.)

1шт.

16

G32666

WASHER

- bolt (1-5/8 x 2-3/4 x 9/64")

1шт.

G32668

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5 - 8 and 13

1шт.
