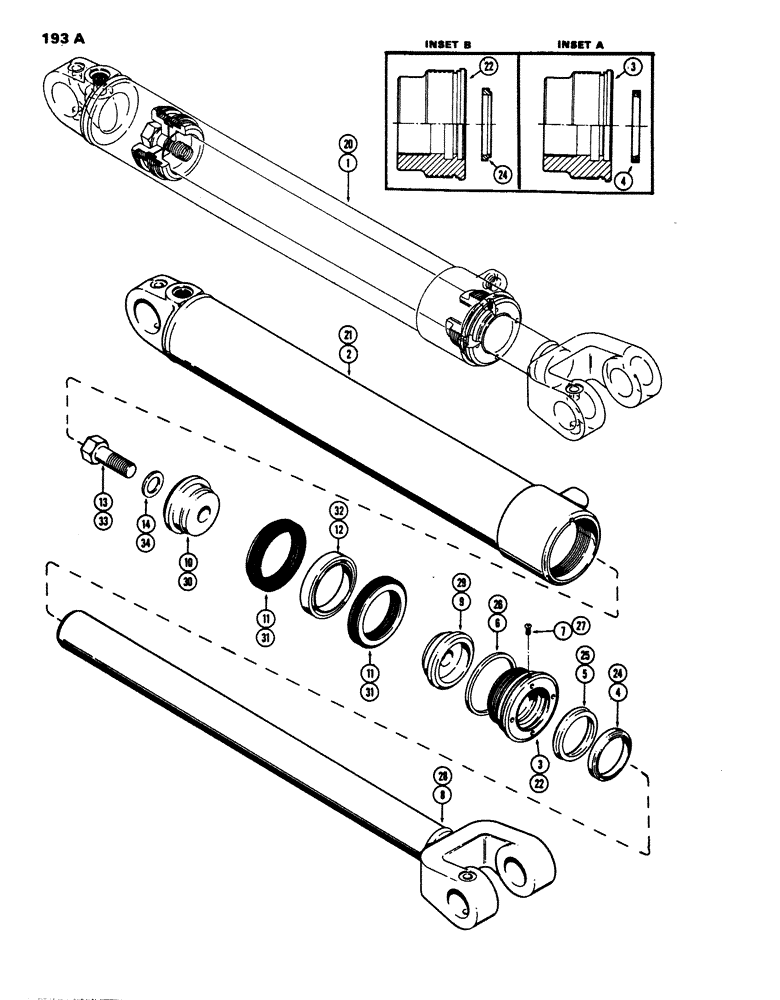

Запчасти Case W24 (193A) - D49531 & D49532 LOADER LIFT CYL,5" DIA. CYL W/34-1/4"STROKE 1ST USED LOADER S.N. 9104985 (08) - HYDRAULICS

1

D49531

CYLINDER ASSY.

- lift, left hand , Includes: Ref. 2 - 14

1шт.

1

D49532

CYLINDER

ASSY. - lift, right hand, Includes: Ref. 2 - 14

1шт.

2

D48090

BODY

TUBE - cylinder, left hand

1шт.

2

D48091

TUBE

- cylinder, right hand

1шт.

3

D49508

GLAND

ASSY. - w/bushing (See Inset A)

1шт.

4

D95148

WIPER SEAL

WIPER - piston rod, outer ("U" Type) (3 x 3-1/2 x 5/16") (See Inset A)

1шт.

5

D45572

ROD

SEAL - piston rod (3x 3-/12 x 7/16")

1шт.

6

D44723

SEAL

RING - gland sealng (1 piece) (5 x 5-5/16 x3/16")

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

8

D46181

PISTON ROD

ROD - piston (3" dia.)

1шт.

9

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (rod end)

1шт.

9

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (rod end)

1шт.

10

D46932

PISTON

- split (bolt end)

1шт.

11

D47206

PACKING

ASSY. - pistn, "V" Type

2шт.

12

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

13

D43746

SCREW,Hex, 1 1/4" - 12 x 3.50", Gr 8

BOLT - piston (1-1/4 x 3-1/2" N.F. nex.)

1шт.

14

D95033

WASHER

- piston bolt (1-1/4 x 2-1/2 x 3/16")

1шт.

20

D48088

CYLINDER ASSY.

- lift, left hand, D48088 and D48089 loader lift with step type outer rod wiper and 1 piece gland seal, Includes: Ref. 21 - 34

1шт.

20

D48089

CYLINDER

ASSY. - lift, right hand, D48088 and D48089 loader lift with step type outer rod wiper and 1 piece gland seal, Includes: Ref. 21 - 34

1шт.

21

D48090

BODY

TUBE - cylinder, left hand, D48088 and D48089 loader lift with step type outer rod wiper & 1 piece gland seal

1шт.

21

D48091

TUBE

- cylinder, right hand, D48088 and D48089 loader lift with step type outer rod wiper & 1 piece gland seal

1шт.

22

D48082

GLAND

ASSEMBLY - w/bushing (See Inset B) (Order G32803) (See figure 193D),D48088 and D48089 loader lift cylinder with step type outer rod wiper and 1 piece seal

1шт.

D48415

GLAND

SEAL KIT - gland repair, D48088 and D48089 loader lift cylinder with step outer rod wiper and 1 piece seal, Includes: Ref. 24 - 27

1шт.

24

D46180

WIPER

- piston rod, outer (step type) (3 x 3-1/2 x 3/8") (See Inset B), D48088 and D48089 loader lift cylinder with outer and 1 piece gland seal, Includes: Ref. 25

1шт.

25

D45572

ROD

SEAL - piston rod (3 x 3-1/3 x 7/16"),D48088 and D48089 loader lift cylinder with step outer wiper and 1 piece gland

1шт.

25

D45572

ROD

SEAL - piston rod (3 x 3-1/3 x 7/16"),D48088 and D48089 loader lift cylinder with step outer wiper and 1 piece gland

1шт.

26

D44723

SEAL

RING - gland sealing (1 piece) (5 x 5-5/16 x 3/16"),D48088 and D48089 loader lift cylinder with step outer rod wiper and

1шт.

27

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), D48088 and D48089 loader lift cylinder with step type outer rod wiper and 1 piece seal

1шт.

28

D46181

PISTON ROD

ROD - piston (3" dia.), D48088 and D48089 loader lift cylinder with step type outer wiper and 1 piece gland seal

1шт.

29

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (rod end), D48088 and D48089 loader lift cylinder with step type outer wiper and 1 piece gland seal

1шт.

30

D46932

PISTON

- split (bolt end), D48088 and D48089 loader lift cylinder with outer rod wiper and 1 piece gland seal

1шт.

31

D47206

PACKING

ASSY. - piston, "V" Type,D48088 and D48089 loader lift cylinder with step outer wiper and 1 piece gland seal

2шт.

32

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing,D48088 and D48089 loader lift cylinder with step type outer rod wiper and 1 piece gland seal

1шт.

33

D43746

SCREW,Hex, 1 1/4" - 12 x 3.50", Gr 8

BOLT - piston (1-1/4 x 3-1/2" N.F. hex.), D48088 and D48089 loader lift cylinder with step type outer rod wiper and 1 piece gland seal

1шт.

34

D95033

WASHER

- piston bolt (1-1/4 x 2-1/2 x 3/16"), D48088 and D48089 loader lift cylinder with step type outer rod wiper and 1 piece gland seal

1шт.
