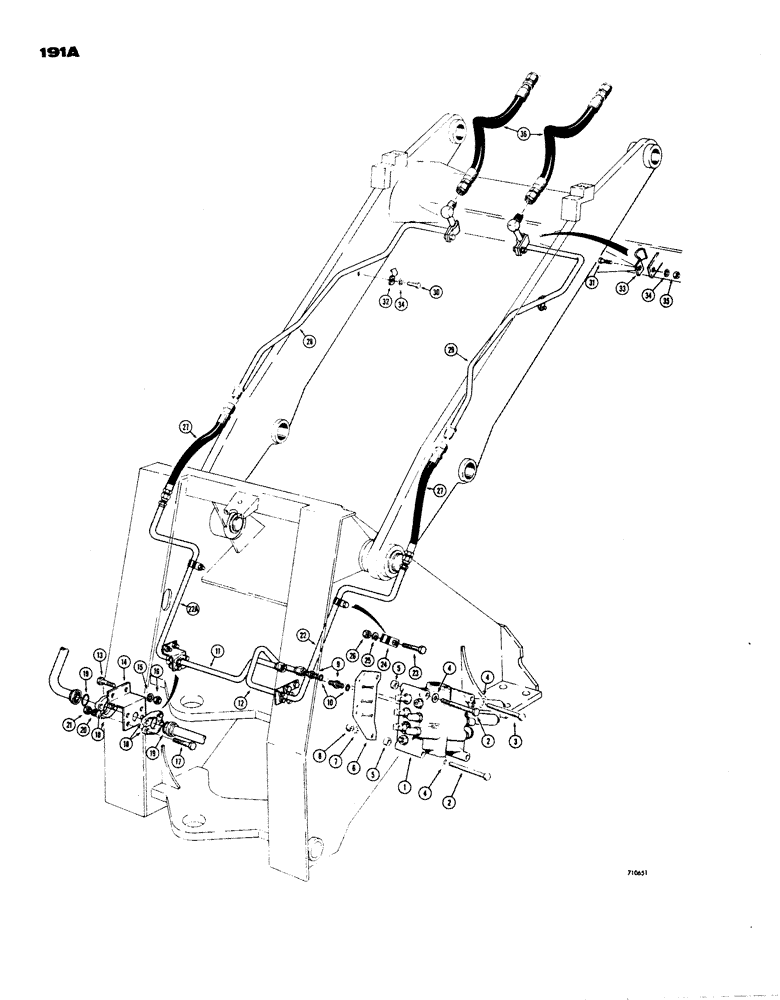

Запчасти Case W24 (191A) - LOADER HYDRAULICS, CLAM CYLINDER HYDRAULICS, TRACTOR SN.9107067 AND AFTER (08) - HYDRAULICS

1

L51307

LOCK VALVE

VALVE - hyd., loader control (3 spool) Parts list Figure 206

1шт.

2

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

3

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

4

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

5

L16776

SPACER

- micro switch plate

2шт.

6

L16777

PLATE - micro switch mounting

1шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 10

2шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

L25639

TUBE,21.7, 8.1" L

- valve to clam cyl., rod end (l.H. side)

1шт.

12

L25638

TUBE

- valve to clam cyl., closed end (R.H. side)

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

14

L51473

BRACKET

- tube mounting

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

18

A12306

FLANGE

- split type

8шт.

19

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O"ring

4шт.

20

92-6

LOCK WASHER,3/8"

8шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

22

L46916

TUBE,7, 4" L

- clam cylinder, at front frame (R.H.)

1шт.

22a

L46917

TUBE

- clam cylinder, at front frame (L.H.)

1шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

24

R14668

CLAMP

- tube

4шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

27

D42969

HOSE

- clam cylinder, tube to swivel elbow (36" long)

2шт.

28

L46967

TUBE,59, 18.2" L

- clam cyl., rod end (At loader lift frame, L.H. side)

1шт.

29

L46966

TUBE,59, 18.2" L

- clam cyl., closed end (At loader lift frame, R.H. side)

1шт.

30

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2-4шт.

31

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(If used) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

32

NLS

NO LONGER SERVICED

- tube, at lift arm

2шт.

33

A12308

CLAMP

- tube, at crossmember

2шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

36

L48756

HOSE

- clam cylinder, at bucket (53" long)

2шт.
