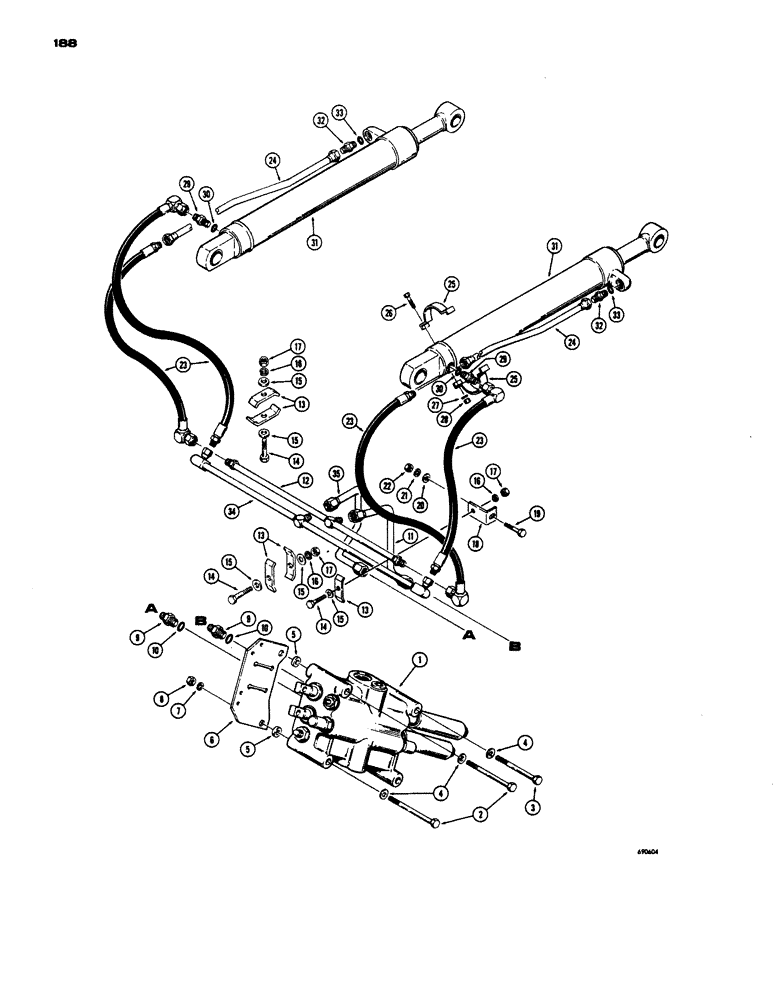

Запчасти Case W24 (188) - LOADER HYDRAULICS, LOADER TILT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 204 and 206 for proper valve)

1шт.

2

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

3

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

4

95-8

WASHER,1/2"

3шт.

5

L16776

SPACER

Plate mountng

2шт.

6

L172258

PLATE - micro switch mounting (2 spool valve only)

1шт.

6

L16777

SPARE PART Micro switch mounting (3 spool valve only)

1шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

25-108

NUT,1/2"-13, G5

Hex

3шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, straight, Incl. Ref. 10

2шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

11

L17738

HYD TUBE,1" OD x 13.2, 7.2" L

Valve to tilt cylinders, rod end

1шт.

12

L17747

SPARE PART Tilt cylinders, rod end

1шт.

13

L17788

CLAMP

Tube

10шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

HHCS - 3/8"-16 NC x 2"

6шт.

15

95-6

WASHER,3/8"

10шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

Hex

6шт.

18

L17787

SPARE PART Tube mounting

2шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

20

95-6

WASHER,3/8"

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

Hex

2шт.

23

L17745

HOSE

Valve to tilt cylinders, rod and closed end

4шт.

24

L17789

TUBE,1" OD x 32.2, 1.9" L

At tilt cylnders, rod end

2шт.

25

L17785

CLAMP

Tube

4шт.

26

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

Hex

4шт.

29

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, straight, Incl. Ref. 30

2шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

31

REF

INSTRUCTION

CYLINDER - hydraulic, tilt (4-1/2" I.D. x 29-1/2" stroke) See Figure 194 and 195A for proper cylinder

2шт.

32

L46238

HYD CONNECTOR

Male, straight, Incl. Ref. 33

2шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

34

L17749

MANIFOLD

Valve to tilt cylinders, closed end

1шт.

35

L17736

TUBE

Valve to tilt cylinders, closed end

1шт.
