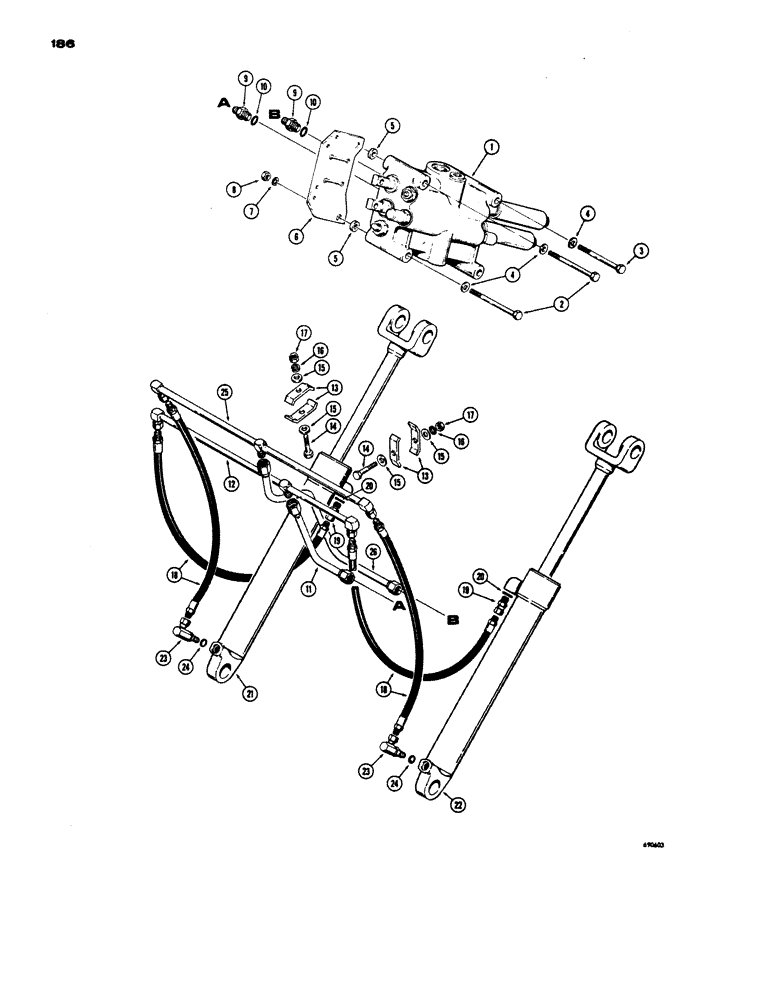

Запчасти Case W24 (186) - LOADER HYDRAULICS, LOADER LIFT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 204 and 206 for proper valve)

1шт.

2

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

3

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

4

95-8

WASHER,1/2"

3шт.

5

L16776

SPACER

Plate mounting

2шт.

6

L17225

SPARE PART Micro switch mounting (2 spool valve only)

1шт.

6

L16777

SPARE PART Micro switch mounting (3 spool valve only)

1шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

25-108

NUT,1/2"-13, G5

Hex

3шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, straight, Incl. Ref. 10

2шт.

10

218-1010

SEAL - "O"ring

1шт.

11

L17737

TUBE,1" OD x 7.05, 4.4" L

Valve to lift cylinder, rod end

1шт.

12

L17748

HOSE

MANIFOLD - lift cylinders, rod end

1шт.

13

L17788

CLAMP

Tube

8шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

15

95-6

WASHER,3/8"

8шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

4шт.

18

L17746

HOSE

Valve to lift cylinder, rod and closed end (42-1/2" long)

4шт.

19

218-5250

HYD CONNECTOR,1-1/16" - 12 ORB x 3/4" NPT

ADAPTER - straight, Incl. Ref. 20

2шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

21

REF

INSTRUCTION

CYLINDER - hydraulic, LH loader lift (5" I.D. x 34-1/4" stroke) See Figure 192 and 193A for proper cylinder

1шт.

22

REF

INSTRUCTION

CYLINDER - hydraulic, RH loader lift (5" I.D. x 34-1/4" stroke) See Figure 192 and 193A for proper cylinder

1шт.

23

218-5202

90 ELBOW,90 Degree, 1 1/16"-12 O-Ring x 3/4" NPSM Fem

Adjustable, Incl. Ref. 24

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

25

L17750

MANIFOLD

Valve to lift cylinder, closed end

1шт.

26

L17735

HYD TUBE,1" OD

Valve to lift cylinder, closed end

1шт.
