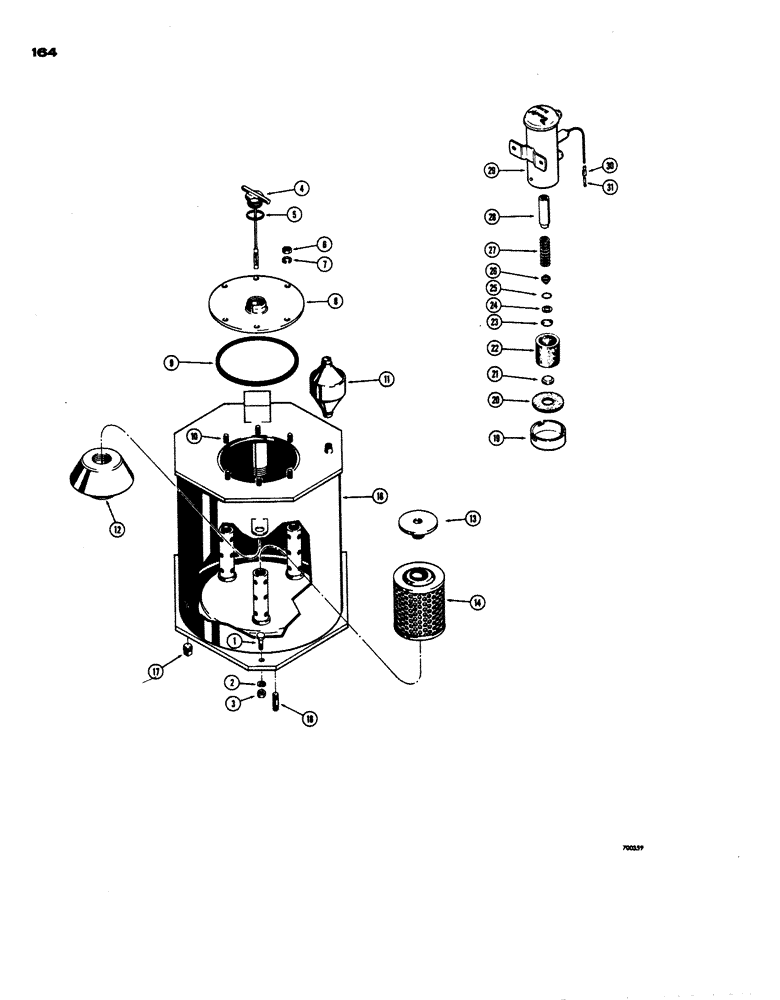

Запчасти Case W24 (164) - HYDRAULIC TANK AND RELATED PARTS (08) - HYDRAULICS

1

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

3шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

25-1010

NUT,5/8"-11, G5

3шт.

4

L16680

GAUGE

- oil level

1шт.

5

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

L15796

COVER - hydraulic tank

1шт.

9

L16974

SEAL

- cover, hydraulic tank

1шт.

10

L13023

STUD

- cover (3/8" - 16 NC)

6шт.

11

L14842

BREATHER

ASSEMBLY - hydraulic tank

1шт.

12

L14357

SCREEN - hydraulic tank

1шт.

13

L12682

LOCK VALVE

RELIEF VALVE - filter

3шт.

5134

SERVICE KIT

ELEMENT KIT - HYDRAULIC TANK, Includes: Ref. 14 and 15

3шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - hydraulic tank

1шт.

15

34458

- element (Not required in this application)

1шт.

16

L17526

TANK - hydraulic

1шт.

17

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic Hex Soc, 1/2" NPT

2шт.

18

L14422

STUD - hydraulic tank

4шт.

L14569

PUMP

ASSEMBLY - fuel transfer, if used

1шт.

L52634

PUMP

- fuel transfer, L14569 and L52634, Includes: Ref. 19 - 29

1шт.

19

A40312

COVER

- fuel pump, L14569 and L52634

1шт.

20

A40315

GASKET

- cover, L14569 and L52634 fuel pumps

1шт.

21

A40311

MAGNET

- plunger, L14569 and L52634 fuel pumps

1шт.

22

A40314

FILTER CARTRIDGE

FILTER - fuel (L14569 pump), L14569 and L52634

1шт.

22

L33210

FILTER SCREEN

SCREEN - filtering (L52634 pump), L14569 and L52634 fuel

1шт.

23

A40316

RETAINER

- seal, "O"ring, L14569 and L52634 fuel pumps

1шт.

24

A40317

WASHER

- special, retainer, L14569 and L52634 fuel pumps

1шт.

25

A40318

O-RING,0.429" ID x 0.106"

SEAL - "O"ring, valve, L14569 and L52634 fuel pumps

1шт.

26

A40813

VALVE - cup, L14569 and L52634 fuel pumps

1шт.

27

L32394

VALVE SPRING

SPRING - plunger (When stock is exhausted, order L35316 spring for service), L14569 and L52634 fuel pumps

1шт.

27

L35316

SPRING

- plunger, L14569 and L52634 fuel pumps

1шт.

28

A40310

PLUNGER

- fuel pump, L14569 and L52634

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - pump, fuel transfer, L14569 and L52634

1шт.

30

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

SLEEVE - insulation, L14569 and L52634 fuel pumps

1шт.

31

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - , bullet, L14569 and L52634 fuel pumps Male

1шт.
