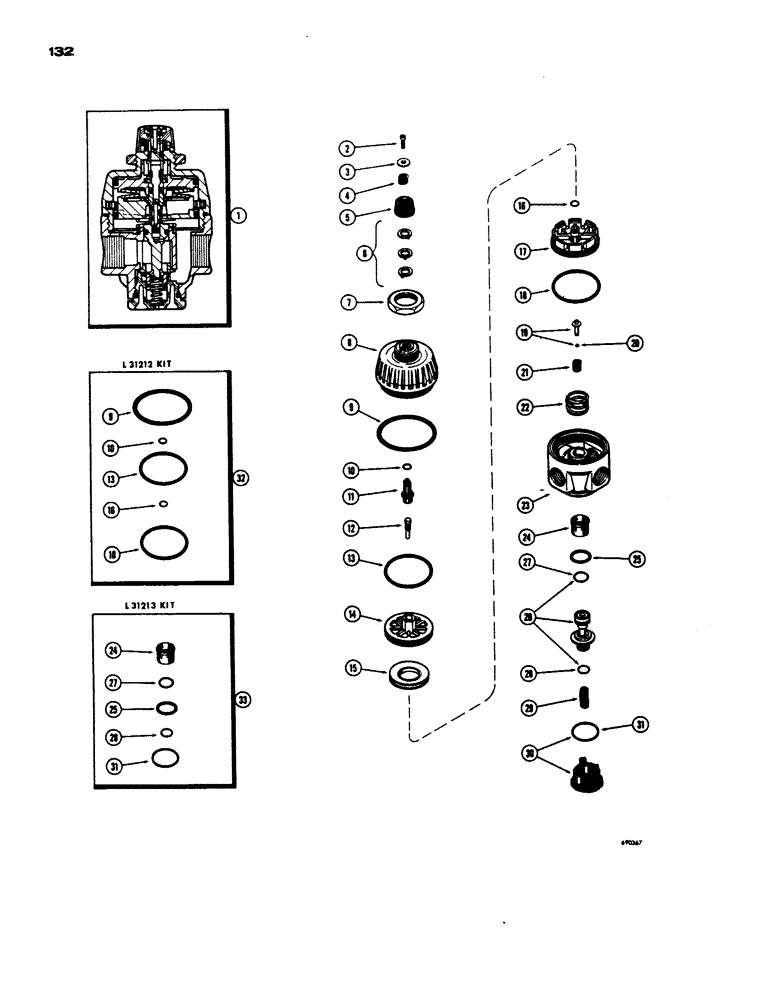

Запчасти Case W24 (132) - BRAKE SYSTEM, L18752 AIR REGULATOR VALVE (07) - BRAKES

1

L18752

VALVE

ASSY. - regulator, air, Includes: Ref. 2 - 31

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - bonnet knob

1шт.

3

NSS

NOT SOLD SEPARAT

BUTTON - bonnet knob

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - button knob

1шт.

5

NSS

NOT SOLD SEPARAT

KNOB - bonnet

1шт.

6

NSS

NOT SOLD SEPARAT

TUMBLER - bonnet

3шт.

7

NSS

NOT SOLD SEPARAT

NUT - panel mount

1шт.

8

NSS

NOT SOLD SEPARAT

BONNET - regulator

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: bonnet-body

1шт.

Part of repair Kit P/N L31212

1шт.

10

NSS

NOT SOLD SEPARAT

"O" RING - coupling

1шт.

Part of repair Kit P/N L31212

1шт.

11

NSS

NOT SOLD SEPARAT

COUPLING - upper, Serial Range: piston-bonnet

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW ASSY. - adjusting, (Left hand thread)

1шт.

13

NSS

NOT SOLD SEPARAT

"O" RING - upper piston

1шт.

Part of repair Kit P/N L31212

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON ASSY. - upper

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING ASSY. - upper piston to lower piston, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

"O" RING - adj. screw to lower piston

1шт.

Part of repair Kit P/N L31212

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON ASSY. - lower

1шт.

18

NSS

NOT SOLD SEPARAT

"O" RING - lower piston

1шт.

Part of repair Kit P/N L31212

1шт.

19

L31214

VALVE ASSY. - pilot, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

"O" RING - pilot valve

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - pilot valve

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - body

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - regulator

1шт.

24

NSS

NOT SOLD SEPARAT

SCREEN - regulator valve

1шт.

Part of repair Kit P/N L31213

1шт.

25

NSS

NOT SOLD SEPARAT

"O" RING - reg. valve, middle

1шт.

Part of repair Kit P/N L31213

1шт.

26

L31215

VALVE ASSEMBLY - regulator, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

"O" RING - valve, upper

1шт.

Part of repair Kit P/N L31213

1шт.

28

NSS

NOT SOLD SEPARAT

"O" RING - valve, lower

1шт.

Part of repair Kit P/N L31213

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - reg. valve

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - valve guide, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

"O" RING - plug, valve guide

1шт.

Part of repair Kit P/N L31213

1шт.

32

L31212

KIT

- repair, control section (Includes: Refs. 9, 10, 13, 16 and 18)

1шт.

33

L31213

KIT

- repair, valve section (Includes: Refs. 24, 25, 27, 28 and 31)

1шт.
