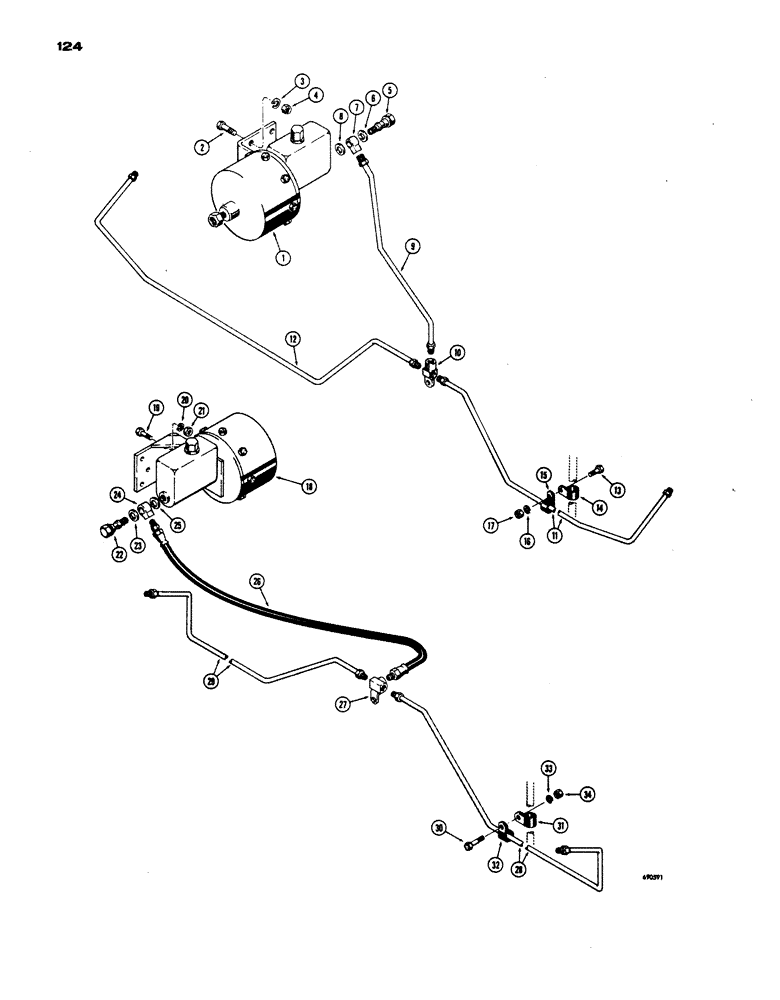

Запчасти Case W24 (124) - BRAKE SYSTEM, BRAKE MASTER CYLINDERS TO WHEEL CYLINDERS (07) - BRAKES

1

L40512

CYLINDER

MASTER CYLINDER - brake, front axle (Parts list Figure 128)

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Master cylinder mounting)

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

A12864

BOLT

- special, tube fitting

1шт.

6

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

1шт.

7

A18531

FITTING

- brake, Serial Range: cylinder-tube

1шт.

8

NLS

NO LONGER SERVICED

- fitting, inner

2шт.

9

L19712

TUBE - front brakes, master cylinder to tee (Before Sn. 9105061) 14.1, 1.8" L

1шт.

9

L46511

TUBE

- front brakes, master cylinder to tee (Sn. 9105061 and after) Not shown

1шт.

10

A12452

FITTING

TEE - front brake system

1шт.

11

L14849

TUBE,0.25" OD

- tee to R.H. wheel cylinder, front (Before Sn. 9105061)

1шт.

11

L16506

TUBE

- tee to R.H. wheel cylinder, front (Sn. 9105061 and after) Not shown

1шт.

12

L14850

TUBE,0.19" ID x 0.25" OD

- tee to L.H. wheel cylinder, front (Before Sn. 9105061)

1шт.

12

L16507

TUBE

- tee to L.H. wheel cylinder, front (Sn. 9105061 and after) Not shown

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Clamp mounting) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

14

A19775

CLAMP - tube support (Before Sn. 9105061)

2шт.

14

R14668

CLAMP

- tube support (Sn. 9105061 and after)

2шт.

15

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

18

L40663

CYLINDER

MASTER CYLINDER - brake, rear axle (Parts list Figure 128)

1шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Master cylinder mounting) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

22

A12864

BOLT

- special, tube fitting

1шт.

23

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

1шт.

24

A12863

SUN VISOR

FITTING - brake cyl. to tube (Before Sn. 9105093)

1шт.

24

A18531

FITTING

- brake cyl. to tube (Sn. 9105093 and after)

1шт.

25

33260

GASKET

- fitting, inner

2шт.

26

L14848

HOSE

- rear brakes, master cylinder to tee (18" long)

1шт.

27

L14854

TEE

- rear brake system

1шт.

28

L14855

TUBE,0.25" OD x 31.5, 7.7" L

- tee to R.H. wheel cylinder, rear (Before Sn. 9105061)

1шт.

28

L16507

TUBE

- tee to R.H. wheel cylinder, rear (Sn. 9105061 and after) Not shown

1шт.

29

L14827

TUBE,0.25" OD

- tee to L.H. wheel cylinder, rear (Before Sn. 9105061)

1шт.

29

L16506

TUBE

- tee to L.H. wheel cylinder, rear (Sn. 9105061 and after) Not shown

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Clamp mounting) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

31

49789

CLAMP

- tube support (Before Sn. 9105061)

2шт.

31

R14668

CLAMP

- tube support (Sn. 9105061 and after)

2шт.

32

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.
