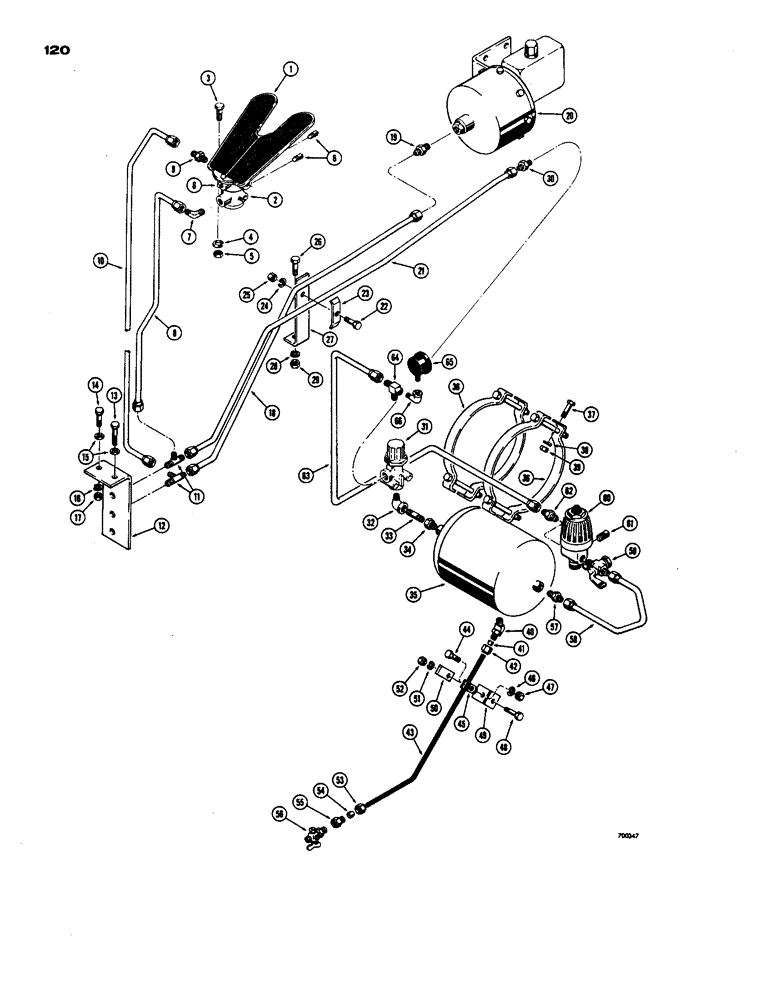

Запчасти Case W24 (120) - BRAKE SYSTEM, TREADLE TO FRONT MASTER CYLINDER AND RESERVOIR (07) - BRAKES

1

REF

INSTRUCTION

TREADLE ASSEMBLY - brake (See Figure 126 for proper valve)

1шт.

2

L15782

BRAKE VALVE

Control, brake (Parts list Figure 126)

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Treadle mounting)

3шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

Hex

3шт.

6

NH772441

PLUG,Sq Hd, 3/8" NPTF, Brass

Pipe, square head (1/2" NPT)

3шт.

7

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

Male, 90 degree (1/2" NPT x 3/8" JIC)

1шт.

8

L16513

TUBE,21.44, 2.5" L

Lower rear port of valve to upper tee

1шт.

9

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight (1/2" NPT x 3/8" JIC)

1шт.

10

L16514

TUBE

Upper RH port of valve to lower tee

1шт.

11

218-1240

FITTING

TEE - tube, bulkhead (1/2" JIC x 3/8" JIC)

2шт.

12

L16357

SPARE PART Hose and tube mounting

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket mounting, RH

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket mounting, LH

1шт.

15

95-6

WASHER,3/8"

Standard wrot

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

Hex

2шт.

18

L16511

TUBE - front brake master cylinder

1шт.

19

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight (3/8" JIC x 1/4" NPT)

1шт.

20

L40512

CYLINDER

MASTER - brake, front axle (Parts list Figure 128)

1шт.

21

L16510

TUBE

Front air reservoir

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

A14078

CLAMP

Tube

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

25-106

NUT,3/8"-16, G5

Hex

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

27

L16532

SPARE PART Clamp mounting

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

25-106

NUT,3/8"-16, G5

Hex

1шт.

30

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight (3/8" JIC x 1/4" NPT)

1шт.

31

L13530

VALVE

Pressure protection (Parts list Figure 130)

1шт.

32

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street

1шт.

33

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

1шт.

34

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING

1шт.

35

L14838

RESERVOIR - air, front

1шт.

36

L12632

BRACKET

Reservoir

2шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket mounting

4шт.

38

92-6

LOCK WASHER,3/8"

4шт.

39

25-106

NUT,3/8"-16, G5

Hex

4шт.

222-1820

ELBOW UNION,45 Degree, 17/32"-24 x 1/2" NPT, Comp

Union Elbow ASSEMBLY - tube, 1/4" tube, Includes Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

ELBOW - tube, 1/4" tube

1шт.

41

222-1860

SLEEVE,3/8" Tube, Comp

SLEEVE - 1/4" tube

1шт.

42

222-1865

NUT,17/32"-24, Sph Sleeve

1/4" tube

1шт.

43

L14839

TUBE,0.375" OD

Front air reservoir drain

1шт.

44

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

45

49845

CLAMP

Tube

1шт.

46

92-5

LOCK WASHER,5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

48

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

49

L41581

SPARE PART Tube clamp

1шт.

50

D33552

BUSHING

SPACER - clamp

1шт.

51

92-6

LOCK WASHER,3/8"

1шт.

52

25-106

NUT,3/8"-16, G5

Hex

1шт.

222-1810

FITTING,17/32"-24 x 1/4" NPT

CONNECTOR ASSEMBLY - tube, 1/4" tube, Includes Ref. 53 - 55

1шт.

53

222-1865

NUT,17/32"-24, Sph Sleeve

1/4" tube

1шт.

54

222-1860

SLEEVE,3/8" Tube, Comp

SLEEVE - 1/4" tube

1шт.

55

NSS

NOT SOLD SEPARAT

CONNECTOR - tube, 1/4" tube

1шт.
