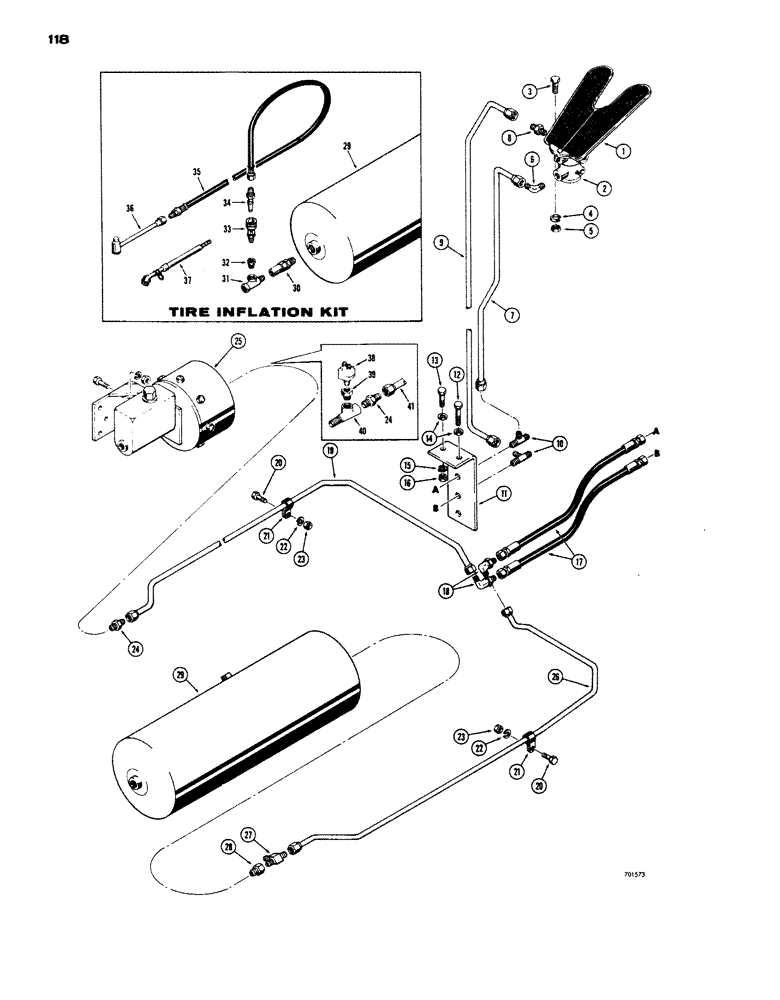

Запчасти Case W24 (118) - BRAKE SYSTEM, TREADLE TO REAR MASTER CYLINDER AND RESERVOIR (07) - BRAKES

1

REF

INSTRUCTION

TREADLE ASSEMBLY - brake (See Figure 126 for proper valve)

1шт.

2

L15782

BRAKE VALVE

Control, brake (Parts list Figure 126)

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Treadle mounting)

3шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

3шт.

6

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

1шт.

7

L16513

TUBE,21.44, 2.5" L

Lower rear port of valve to upper tee

1шт.

8

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER

1шт.

9

L16514

TUBE

Upper RH port of valve to lower tee

1шт.

10

218-1240

FITTING

TEE - tube, bulkhead (1/2" JIC x 3/8" JIC)

2шт.

11

L16357

SPARE PART Hose and tube mounting

1шт.

11a

218-1277

BHD LOCK NUT,Blkhd, 9/16"-18

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket mounting, RH

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket mounting, LH

1шт.

14

95-6

WASHER,3/8"

Standard wrot

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

2шт.

17

L15774

HOSE

Air, front to rear frame (20-1/2" long)

2шт.

17a

218-1277

BHD LOCK NUT,Blkhd, 9/16"-18

2шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Tube

2шт.

19

L16517

TUBE

Rear brake master cylinder (Before S/N 9105093)

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp mounting

2шт.

21

49845

CLAMP

Tube

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

2шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER

1шт.

25

L40663

CYLINDER

MASTER, brake, rear axle (Parts list Figure 128)

1шт.

26

L16516

SPARE PART Rear air reservoir

1шт.

27

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

1шт.

28

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

29

L14823

TANK

RESERVOIR - air, rear

1шт.

30

L12586

VALVE

CHECK - air reservoir

1шт.

31

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

Pipe

1шт.

32

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing

1шт.

33

L13978

VALVE

CHECK - air

1шт.

34

L13979

COUPLING

Adapter

1шт.

35

L15274

HOSE

Inflation

1шт.

36

L13983

FAN

CHUCK - air

1шт.

37

L13977

GAUGE ASSY.

Tire pressure

1шт.

38

L47989

SWITCH

Stop light (See figure 47 for related parts), tractor and after, Start Serial: 910593

1шт.

39

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING, brake switch, tractor and after, Start Serial: 910593

1шт.

40

221-1691

TEE,Street, 1/4" NPT

Master cylinder, tractor and after, Start Serial: 910593

1шт.

41

L47712

TUBE - rear brake master cylinder, tractor and after, Start Serial: 910593

1шт.
