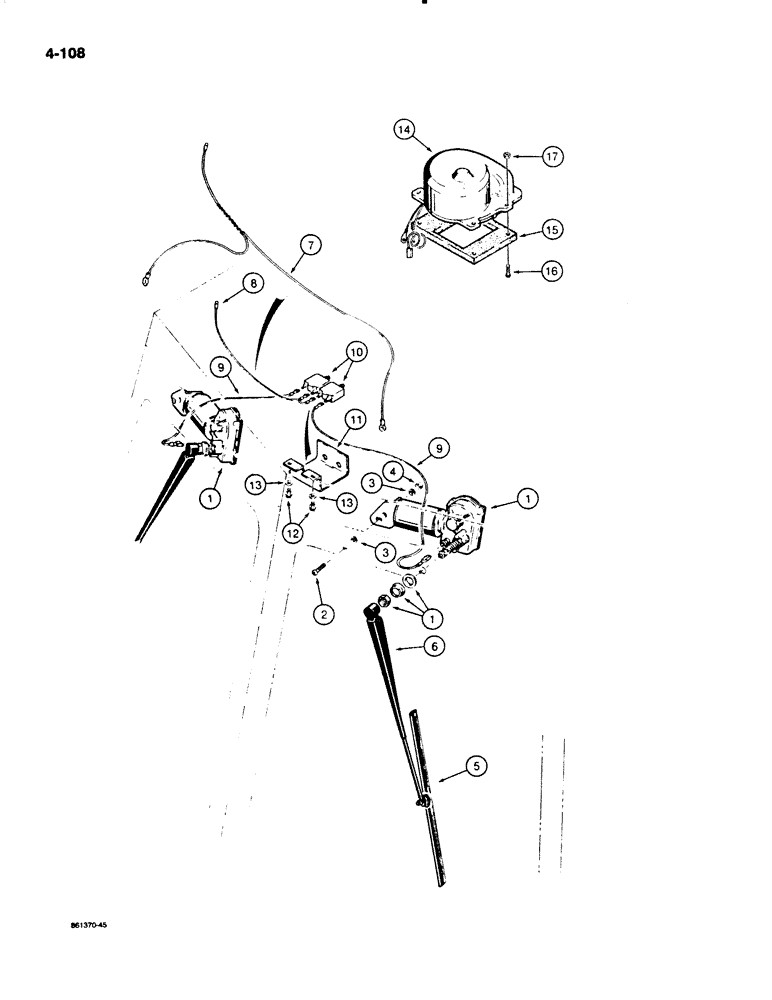

Запчасти Case W20C (4-108) - CAB REAR WIPERS AND DEFROSTER, USED ON W18B AND BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L115054

WIPER MOTOR

MOTOR - wiper, rear

2шт.

2

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, No. 10 NC x 3/4 inch

2шт.

3

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

4

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

2шт.

5

F43517

WIPER BLADE

BLADE - wiper, 12" (533 mm) long

2шт.

6

F43516

ARM

- wiper, 6" - 10" (152 - 254 mm) long, adjustable

2шт.

7

F43518

HARNESS

WIRE - jumper, if used

1шт.

8

L77036

ELECTRICAL WIRE

WIRE - cab to circuit breaker

1шт.

9

L109884

ELECTRICAL WIRE

WIRE - jumper, used with spade type connector

2шт.

10

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

2шт.

11

L76818

BRACKET

- circuit breaker

1шт.

12

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted, No. 10 - 24 NC x 1/2", plated

2шт.

13

195-12

WASHER,#10

- flat, No. 10, plated

2шт.

14

F43618

DIFFUSER

DEFROSTER - cab, mounting

1шт.

15

F43619

SEAL

- defroster mounting

1шт.

16

182-132

SCREW,Slotted Pan Hd, #10-24 x 1 1/2"

- No. 10 - 24 NC x 1-1/2", defroster mounting

4шт.

17

86625057

NUT,#10-24, GB

NUT, LOCK, , Defroster mounting #10-24, GB

4шт.
