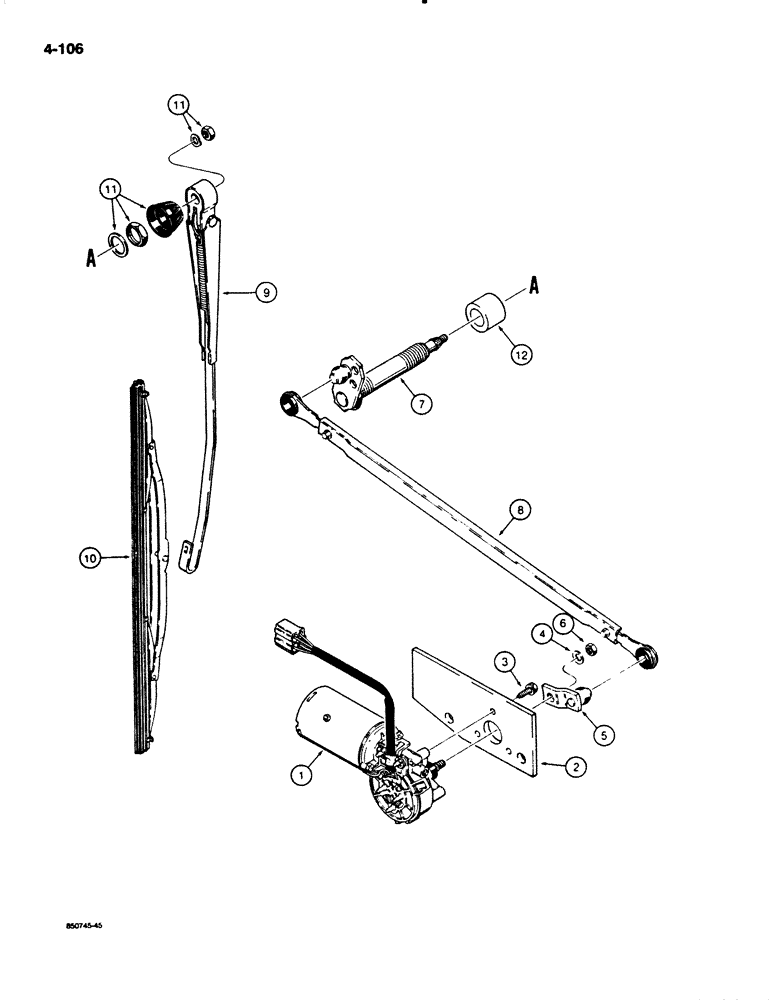

Запчасти Case W20C (4-106) - CAB FRONT WIPERS, USED ON W20C P.I.N. 9155766 & AFT. FRONT WIPER-INCLUDED IN CAB SN. 52650 & AFT. (04) - ELECTRICAL SYSTEMS

N9863

MOTOR ASSEMBLY - front wiper, not available as a complete assembly, order individual components (items 1 through 6) for service

1шт.

1

F96877

WIPER MOTOR

MOTOR - front wiper

1шт.

2

N9864

PLATE

BRACKET - wiper

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER - special

3шт.

4

N8361

SPRING WASHER

- wave

1шт.

5

N8360

SUPPORT

ARM - drive

1шт.

6

825-1408

NUT,M8, Cl 8

1шт.

7

N9868

PIVOT

- wiper

1шт.

8

N9866

LINK

- wiper

1шт.

9

N9867

ARM

- wiper

1шт.

10

N9865

WIPER BLADE

BLADE - wiper

1шт.

11

N8355

SET OF PARTS

KIT - mounting

1шт.

12

N9878

SPACER

- pivot

1шт.
