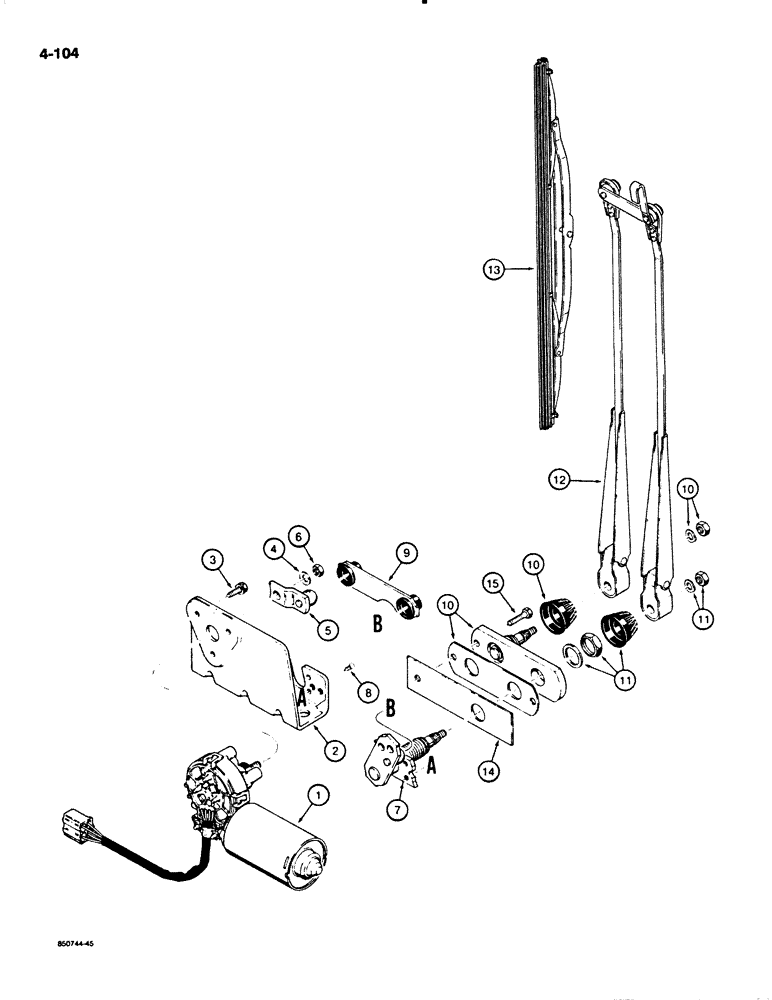

Запчасти Case W20C (4-104) - CAB FRONT WIPERS, USED ON W18B & BEF. W20C P.I.N.9155766 FRONT WIPER-INCLUDED IN CAB SN. 52560 & AFT (04) - ELECTRICAL SYSTEMS

1

F96877

WIPER MOTOR

MOTOR - front wiper

1шт.

2

N8359

SUPPORT

BRACKET - wiper

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER - special

3шт.

4

N8361

SPRING WASHER

- wave

1шт.

5

N8360

SUPPORT

ARM - drive

1шт.

6

825-1408

NUT,M8, Cl 8

1шт.

7

N8357

PIVOT ASSY.

PIVOT - wiper

1шт.

8

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special

4шт.

9

N8358

LINK

LINK - wiper

1шт.

10

N8354

SET OF PARTS

KIT - adapter, pantograph

1шт.

11

N8355

SET OF PARTS

KIT - mounting

1шт.

12

N8353

WIPER ARM

ARM - wiper

1шт.

13

N8352

WIPER BLADE

BLADE - wiper

1шт.

14

N8636

SPACER

- pantograph

1шт.

15

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1шт.

L36262

KIT

- front wiper motor, optional, includes all of the above items as N8351 wiper motor, additional kit parts are identified on Figure 4-060

1шт.
