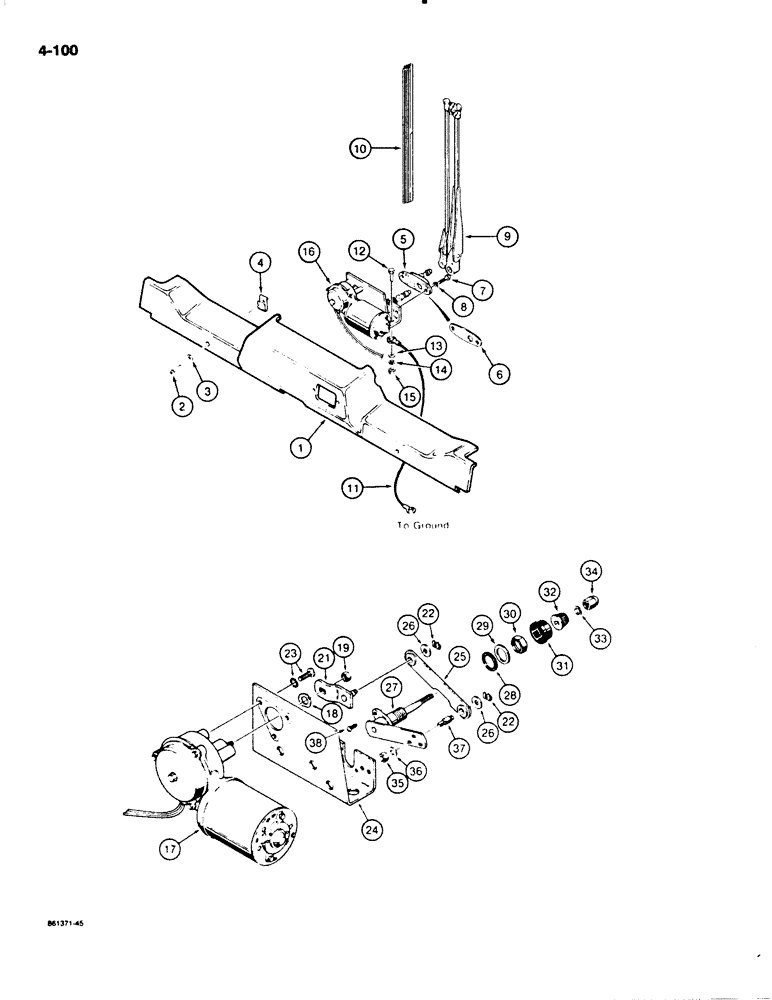

Запчасти Case W20C (4-100) - CAB FRONT WIPERS, USED BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L77437

PANEL

COVER - wiper motor, black

1шт.

1

L111751

COVER

- wiper, motor, cab SN 44769 and after, brown, for another cover see Figure 9-056, item 23

1шт.

2

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - self-tapping, Phillips oval head, No. 10 - 16 NC x 1-1/4", black

4шт.

3

F43576

WASHER

- black nylon, No. 10

4шт.

4

131-645

NUT,Tinn, U, #10

- U-type, No. 10 - 16 NC

4шт.

5

L35753

ADAPTER

- pantograph wiper, front wiper - included in cab before cab sn 52650

1шт.

6

D70646

BUSHING

SPACER - adapter, front wiper - included in cab before cab sn 52650

1шт.

7

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- hex, 1/4 NF x 3/4 inch, front wiper - included in cab before cab sn 52650

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Front wiper - included in cab before cab S/N 52650 1/4"

2шт.

9

L35263

ARM

- wiper, 18" (458 mm) long, front - included in cab before cab sn 52650

1шт.

9a

D87118

ARM

- wiper, 14", not shown, front - included in cab before cab sn 52650

1шт.

10

F42214

WIPER

BLADE - wiper, 18" (458 mm) long, front - included in cab before cab sn 52650

1шт.

10a

N9027

BLADE

- if 14", not shown, front wiper - included in cab before cab sn 52650

1шт.

11

L40793

ELECTRICAL WIRE

WIRE - ground, front wiper - included in cab before cab sn 52650

1шт.

12

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

Front wiper - included in cab before cab sn 52650 Hex, 7/16"-14 x 3/4", G5, Full Thd

1шт.

13

95-7

WASHER,7/16"

- flat, , front wiper - included in cab before cab sn 52650 7/16"

1шт.

14

92-7

LOCK WASHER,7/16"

front wiper - included in cab before cab sn 52650 7/16"

1шт.

15

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC, front wiper - included in cab before cab sn 52650

1шт.

16

F93654

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, optional wiper motor available as part of L36262 kit, see Figures 4-060 and 4-104, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

MOTOR - 24V

1шт.

18

D71411

WASHER

- wave

1шт.

19

F44452

LOCK NUT

AND EXTERNAL WASHER - 1/4" - 28 NF

1шт.

20

N6029

GEAR

DRIVE GEAR - plastic, not shown

1шт.

21

A36091

ARM

- drive

1шт.

22

D71414

CLIP

- spring

2шт.

23

D72849

SCREW

AND WASHER - No. 10 - 32 NF

3шт.

24

D72850

BRACKET

- motor

1шт.

25

D71427

LINK,85.85mm L

- wiper

1шт.

26

A22431

WASHER

SPACER - washer

2шт.

D72848

SHAFT

AND PIVOT - wiper, Includes: Ref. 27 - 37

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - wiper

1шт.

28

D71417

SPECIAL WASHER

WASHER - felt

1шт.

29

D71418

WASHER

- flat

1шт.

30

D71419

NUT

- shaft

1шт.

31

D71420

CAP

BOOT - rubber

1шт.

32

D71421

TOOL

DRIVER - knurled

1шт.

33

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

34

D71422

NUT

- cap

1шт.

35

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

36

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4", plated

1шт.

37

D73642

PIN

- special

1шт.

38

F44456

SCREW,0.19" - 32 x 3 3/4"

- round head slotted, No. 10 - 32 NF x 3/8", plated

2шт.

L36262

KIT

- front wiper motor, optional, includes all items on Figure 4-104 as N8351 wiper motor, additional kit parts are identified on Figure 4-060

1шт.
