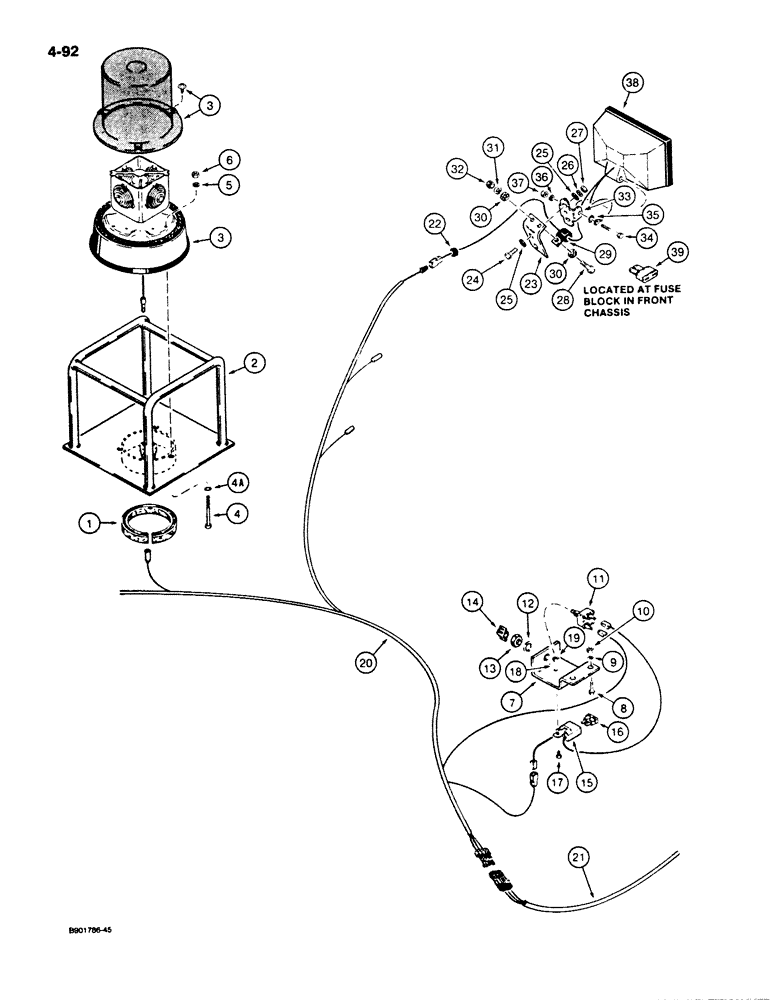

Запчасти Case W20C (4-092) - LAMPS & ROTATING BEACON, USED ON MODELS W/ L118291 CANOPY USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L109042

GASKET

TRIM - 12-3/4" (350 mm) long

1шт.

2

L114301

CAGE

- beacon, no longer used, order L127768 cage

1шт.

2

L127768

CAGE

- beacon

1шт.

3

L110648

LAMP

BEACON ASSEMBLY - rotating, 360 degree, amber lens, parts list Figure 4-096, no longer used, order A187528 beacon and L127770, jumper wire, see Figure 4-098

1шт.

3

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating, 360 degree, amber lens, not shown, see parts list Figure 4-098

1шт.

4

173-111

SCREW,Sl Rnd Hd, #10 - 24 x 3"

MACHINE SCREW - round head slotted, No. 10 NC x 3 inch, used with L110648 beacon only

3шт.

4a

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Used with L110648 beacon only Ext-Int Tooth, #10

3шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with L110648 beacon only #10

3шт.

6

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, used with L110648 beacon only

3шт.

7

L114146

BRACKET

- beacon switch mounting

1шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

L70872

SWITCH

- beacon

1шт.

12

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - internal tooth lock, 7/16"

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- special

1шт.

14

L74694

KNOB

- beacon switch

1шт.

15

L107649

HARNESS

BLOCK - fuse assembly

1шт.

16

A149799

FUSE

- 7.5 amp

1шт.

17

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 6 - 32 NC x 1/2"

1шт.

18

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

1шт.

19

129-5

NUT,#6-32

1шт.

20

L114985

HARNESS

- electrical, ROPS canopy

1шт.

21

L124195

HARNESS

- extension, ROPS canopy

1шт.

22

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- flood lamp wire through canopy frame

4шт.

23

L113416

BRACKET

- flood lamp mounting to canopy roof

2шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

25

193-72

LOCK WASHER

- internal-external tooth lock, 3/8 inch

8шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

425-106

NUT,3/8"-16, Cl 5

4шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

29

S83716

CLAMP,1/8", Insul, 5/16" Bolt

- lamp wire

2шт.

30

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

8шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

33

L113415

BRACKET

- flood lamp

2шт.

34

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

35

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

38

L113375

LIGHT ASSY.

LAMP ASSEMBLY - front flood, parts list Figure 4-076

2шт.

39

A149800

FUSE,10 Amp

- 10 amp, flood lamp, located in fuse block in front chassis

1шт.
