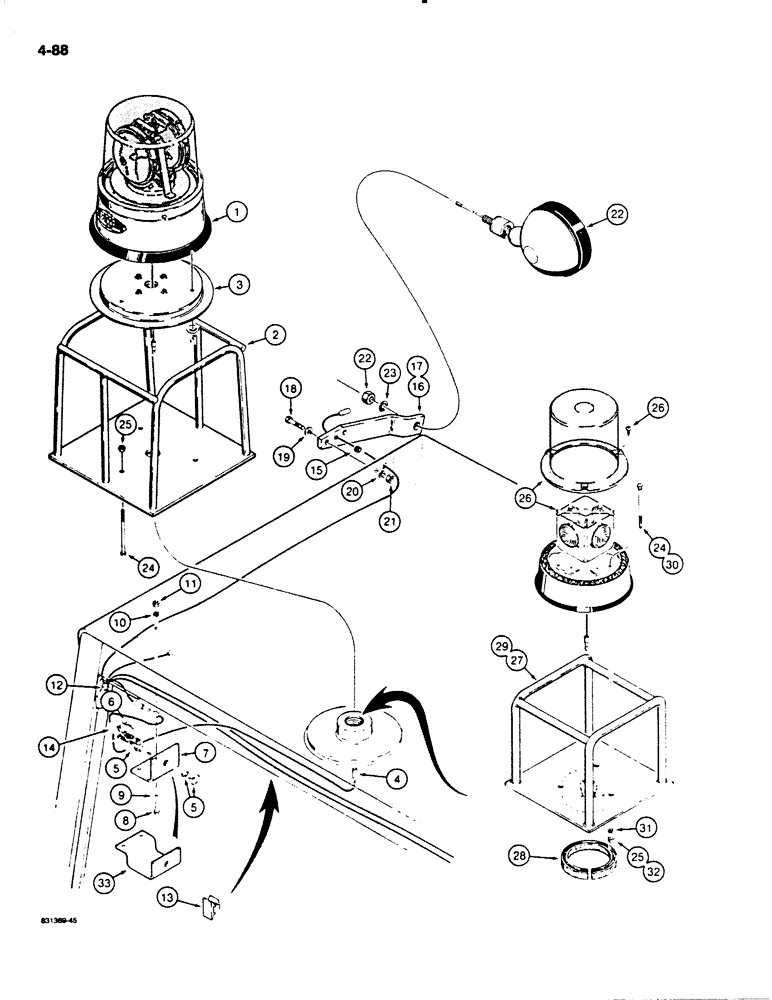

Запчасти Case W20C (4-088) - LAMPS & ROTATING BEACON, USED ON MODELS W/ CANOPY, USED ON W18B & BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L16100

BEACON

ROTATING BEACON - 360 degree, amber lens, Do-Ray No. 4002, parts list Figure 4-094

1шт.

1

L16676

BEACON

ROTATING BEACON - 360 degree, red lens, Do-Ray No. 4002, parts list Figure 4-094

1шт.

2

L104480

CAGE

- beacon, used with L16100 and L16676 beacons

1шт.

3

L16101

MOUNT - beacon

1шт.

4

L70707

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: beacon-switch

1шт.

L16099

SWITCH

- rotating beacon, includes fuse, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

SWITCH - without fuse

1шт.

6

223-20

FUSE,20 Amp, Type SFE

- 20 amp, SFE

1шт.

7

L70860

LARGE PLATE

BRACKET - switch mount, used with canopy with headliner mounted with caps, no longer available, order item 33, L114146 bracket

1шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

L76549

HARNESS

- canopy

1шт.

13

L100659

CLIP

- harness

1шт.

14

L73339

ELECTRICAL WIRE

WIRE -, Serial Range: harness-switch

1шт.

15

S70739

GROMMET

- wire

2шт.

16

L79842

SUPPORT

BRACKET - flood lamp, right-hand

1шт.

17

L79843

SUPPORT

BRACKET - flood lamp, left-hand

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

22

REF

INSTRUCTION

FLOOD LAMP - front, parts list Figure 4-074 for correct lamp

2шт.

23

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

24

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head, 1/4 NC x 4 inch, used with L104480 and L110647 cages

3шт.

25

131-650

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, used with L104480 and L110647 cages

3шт.

26

L110648

LAMP

ROTATING BEACON - 360 degree, amber lens, Signal Stat No. 378Y106, parts list Figure 4-096, no longer used, order A187528 beacon and L127770 jumper wire, see Figure 4-098

1шт.

27

L110647

CAGE

- beacon, used with L110648 beacon, no longer available, order L114301 cage and appropriate hardware

1шт.

28

L109042

GASKET

TRIM - edge

1шт.

29

L114301

CAGE

- beacon, used with L110648 beacon

1шт.

30

169-111

SCREW,Sl Fil Hd, #10 - 24 x 3"

MACHINE SCREW - round head slotted, No. 10 - 24 NC x 3", used with L114301 cage

3шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with L114301 cage #10

3шт.

32

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, used with L114301 cage

3шт.

33

L114146

BRACKET

- switch mount, used with canopy with headliner self-retained

1шт.
