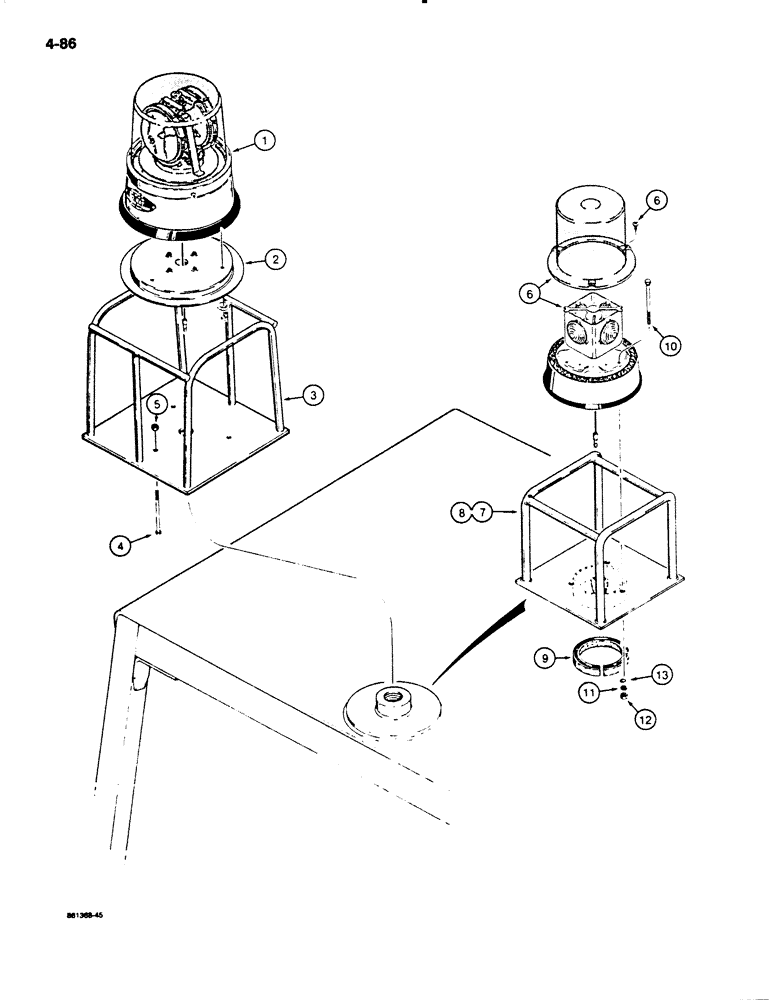

Запчасти Case W20C (4-086) - ROTATING BEACON, USED ON MODELS WITH CAB (04) - ELECTRICAL SYSTEMS

1

L16100

BEACON

ROTATING BEACON - 360 degree, amber lens, Do-Ray No. 4002, parts list Figure 4-094

1шт.

1

L16676

BEACON

ROTATING BEACON - 360 degree, red lens, Do-Ray No. 4002, parts list Figure 4-094

1шт.

2

L16101

MOUNT - beacon

1шт.

3

L104480

CAGE

- beacon, used with L16100 and L16676 beacons

1шт.

4

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch, used with L104480 and L110647 cages

3шт.

5

131-650

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, used with L104480 and L110647 cages

3шт.

6

L110648

LAMP

ROTATING BEACON - 360 degree, amber lens, parts list page 4-97, no longer used, order A187528 beacon and L127770 jumper wire, see Figure 4-098

1шт.

7

L110647

CAGE

- beacon, used with L110648 beacon, no longer available, order L114301 cage and appropriate hardware

1шт.

8

L114301

CAGE

- beacon, used with L110648 beacon

1шт.

9

L109042

GASKET

TRIM - edge

1шт.

10

169-111

SCREW,Sl Fil Hd, #10 - 24 x 3"

MACHINE SCREW - round head slotted, No. 10 - 24 NC x 3", used with L114301 cage

3шт.

11

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with L114301 cage #10

3шт.

12

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, used with L114301 cage

3шт.

13

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

3шт.
