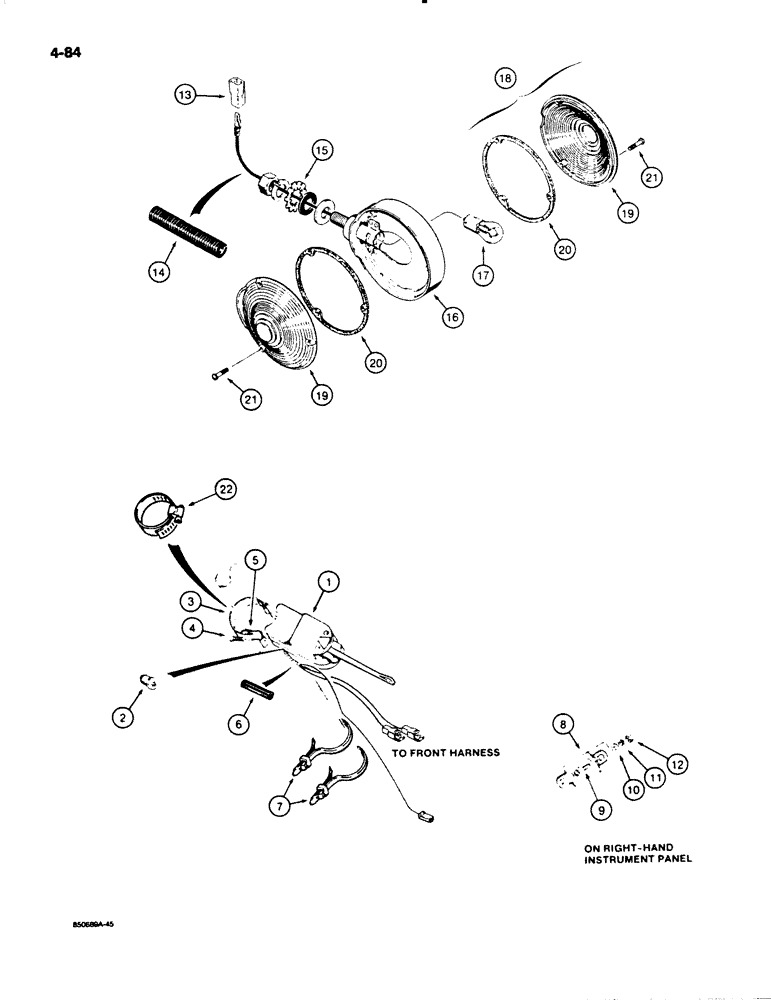

Запчасти Case W20C (4-084) - TURN SIGNAL AND FLASHER LAMP, USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

L114396

SIGNAL

SWITCH - turn and flasher, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

2

A14928

BULB

- direction indicator, No. 356

1шт.

3

L32658

STRAP

- mounting, turn signal switch

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 4 & 5

1шт.

4

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine, No. 8 - 32 NC x 1"

2шт.

5

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

6

L77093

CONDUIT

Flex, 0.35" ID x 6.00", Slit, Wire Cover

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

8

L59781

FLASHER UNIT

FLASHER - signal

1шт.

9

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head, No. 10 - 24 NC x 3/4"

2шт.

10

95-3

WASHER,#12

- flat, No. 10

2шт.

11

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

2шт.

13

223-166

CONNECTOR, ELEC

CONNECTOR - female

2шт.

14

L115340

CONDUIT

- flex, wire cover

1шт.

15

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

L114187

SUPPORT

LAMP - turn signal and flasher, Includes: Ref. 16 - 21

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

17

L32257

BULB

- lamp, No. 307

1шт.

18

L32214

LENS

KIT - lamp, flasher, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

21

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- No. 6 - 32 NC x 5/8"

3шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - turn signal

1шт.
