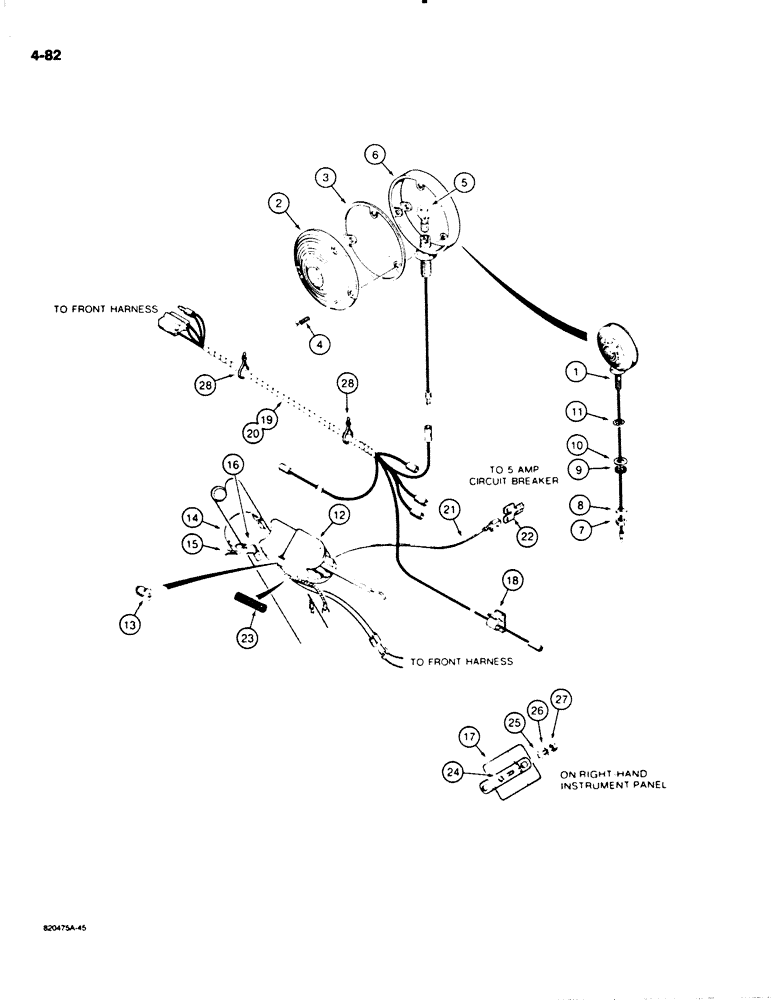

Запчасти Case W20C (4-082) - TURN SIGNAL AND FLASHER LAMP, USED ON W18B AND BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L108118
LAMP
- flasher, double face, replaces L43738 lamp, Includes: Ref. 2 - 10
2шт.
L32214
LENS
KIT - lamp, flasher, Includes: Ref. 2 - 4
2шт.
2
NSS
NOT SOLD SEPARAT
LENS - lamp, flasher
1шт.
3
NSS
NOT SOLD SEPARAT
GASKET - lens
1шт.
4
173-279
SCREW,Sl Rnd Hd, #6 - 32 x 5/8"
- No. 6 - 32 NC x 5/8"
3шт.
5
L32257
BULB
- 24V, No. 307
1шт.
6
NSS
NOT SOLD SEPARAT
BODY - flasher, double face
1шт.
7
129-125
NUT,1/2"-20, G5
1шт.
8
192-23
LOCK WASHER,1/2"
WASHER, LOCK, , Replace with item 11 1/2"
1шт.
9
L32256
WASHER
- rubber
1шт.
10
195-106
WASHER,1/2"
- flat, , plated 1/2"
1шт.
11
193-48
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
L106071
SIGNAL
SWITCH - turn and flasher, 2 wires to harness, interchangeable with L73667 switch, Includes: Ref. 12 - 16
1шт.
12
NSS
NOT SOLD SEPARAT
SWITCH - turn signal
1шт.
13
A14928
BULB
- direction indicator, No. 356
1шт.
14
L32658
STRAP
- mounting, turn signal switch
1шт.
L32659
KIT
HARDWARE PACKAGE - mounting, turn signal
1шт.
15
169-148
SCREW,Sl Fil Hd, #8 - 32 x 1"
- flat head machine, No. 8 - 32 NC x 1"
2шт.
16
NSS
NOT SOLD SEPARAT
CLIP - strap mounting
2шт.
17
L59781
FLASHER UNIT
FLASHER - signal
1шт.
18
L100659
CLIP
- stick on, canopy models
1шт.
19
L76549
HARNESS
- canopy
1шт.
20
REF
INSTRUCTION
HARNESS - cab, see Figure 4-060, items 24 and 24A
1шт.
21
L73665
ELECTRICAL WIRE
WIRE - to circuit breaker
1шт.
22
F43508
SPADE TERMINAL
SPADE - electrical connector
1шт.
23
L77093
CONDUIT
Flex, 0.35" ID x 6.00", Slit
1шт.
24
182-561
SCREW,Slotted Pan Hd, #10-24 x 3/4"
- pan head, No. 10 - 24 NC x 3/4"
2шт.
25
95-3
WASHER,#12
- flat, No. 10
2шт.
26
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
27
129-7
NUT,Hex, #10 - 24
- hex, No. 10 - 24 NC
2шт.
28
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
2шт.
Выбрано товаров: 31
