(4-078) - STOP AND TAIL LAMP, USED ON W18B AND BEFORE W20C P.I.N. 9155766

Запчасти Case W20C (4-078) - STOP AND TAIL LAMP, USED ON W18B AND BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

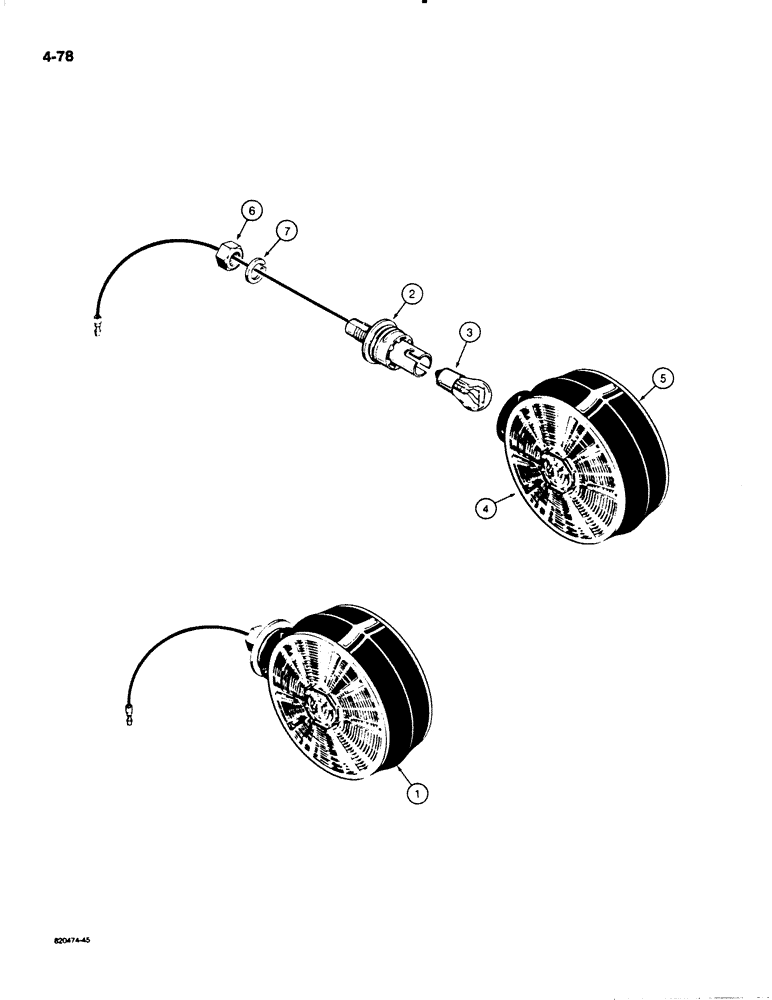

Схема запчастей Case W20C - (4-078) - STOP AND TAIL LAMP, USED ON W18B AND BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L59897

LAMP

- stop and tail, Hobbs, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp

1шт.

3

A15084

LAMP

BULB - 24V, No. 1683

1шт.

4

D82778

LENS

- red

1шт.

5

D82779

LENS

- black

1шт.

6

129-125

NUT,1/2"-20, G5

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.
