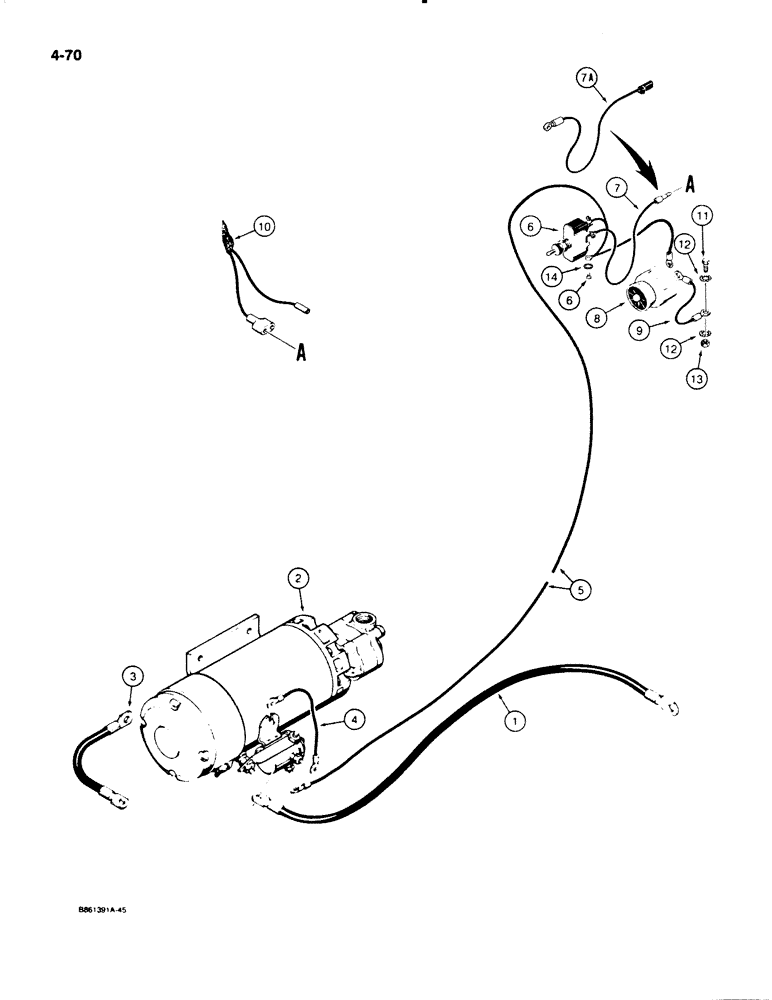

Запчасти Case W20C (4-070) - ELECTRICAL CIRCUIT, MANUAL AUXILIARY STEERING (04) - ELECTRICAL SYSTEMS

1

L117518

CABLE

- power supply

1шт.

2

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR - auxiliary steering, see parts list Figure 5-18 for pump and parts list Figure 4-072 for motor

1шт.

3

L57536

CABLE

WIRE - ground, pump and motor

1шт.

4

A18457

ELECTRICAL WIRE

WIRE - ground, 13" (320 mm) long, services 5" (127 mm) production wire

1шт.

5

L79559

ELECTRICAL WIRE

WIRE - steering, Serial Range: motor-switch

1шт.

6

F22295

SWITCH

- steering motor

1шт.

7

L79558

ELECTRICAL WIRE

WIRE - to front harness, W18B

1шт.

7

L79558

ELECTRICAL WIRE

WIRE - to front harness, W20C, Serial Range: -9155766

1шт.

7a

L114675

HARNESS

WIRE - to front harness, W20C, Start Serial: 9155766

1шт.

8

L79560

BUZZER

LAMP AND BUZZER - auxiliary steering

1шт.

9

L114704

ELECTRICAL WIRE

WIRE - ground, lamp and buzzer

1шт.

10

REF

INSTRUCTION

HARNESS - front, see Figures 4-028, 4-032 and 4-034 for harness options

1шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

1шт.

14

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

3шт.
