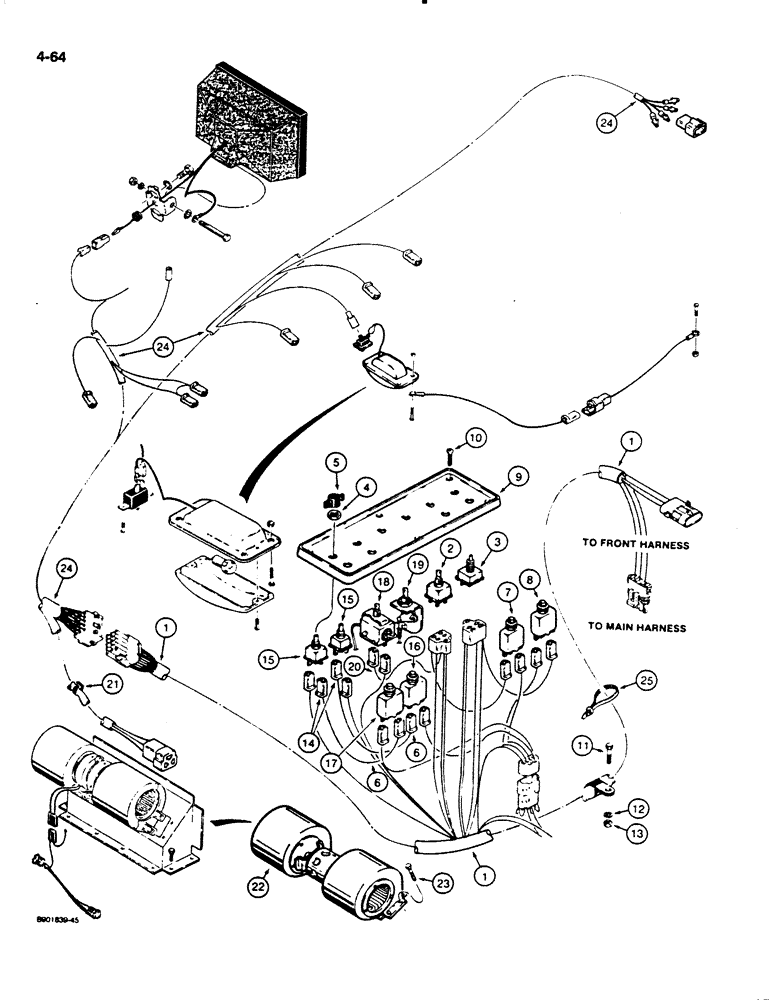

Запчасти Case W20C (4-064) - ELECTRICAL CIRCUIT, OPERATORS COMPARTMENT, USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115622

HARNESS

- lower, cab

1шт.

2

A42622

SWITCH

- blower

1шт.

3

L111292

SWITCH

- wiper

1шт.

4

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switches

3-6шт.

5

L74694

KNOB

- switches

2-6шт.

6

L114358

HARNESS

WIRE - jumper

2-6шт.

7

L59972

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

8

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

1шт.

9

L111337

PANEL

- accessory

1шт.

10

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - Phillips, No. 10 - 16 NC x 3/4"

6шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

223-154

CONNECTOR, ELEC

CONNECTOR - male

2шт.

15

L70872

SWITCH

- beacon and defroster

1-2шт.

16

F43510

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

17

F43509

BREAKER

CIRCUIT BREAKER - 6 amp

1шт.

18

L73646

SWITCH

- air conditioning

1шт.

19

L104586

REMOTE CONTROL

CABLE ASSEMBLY - heater control

1шт.

20

A42624

ELECTRICAL WIRE

WIRE - blower to switch, if used, not required if included as part of cab harness

1шт.

21

L100659

CLIP

- wire

1шт.

22

REF

INSTRUCTION

BLOWER - cab, see Figures 4-114 through 4-118 for correct assembly and components

1шт.

Blower assemblies listed on Figure 4-114 are no longer available. Order L36322 kit shown on Figure 4-066 to replace the blower assembly. The components of these assemblies are still available.

1шт.

23

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW - self-tapping, 1/4" - 20 NC x 1/2"

8шт.

24

L114298

HARNESS

- cab

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
