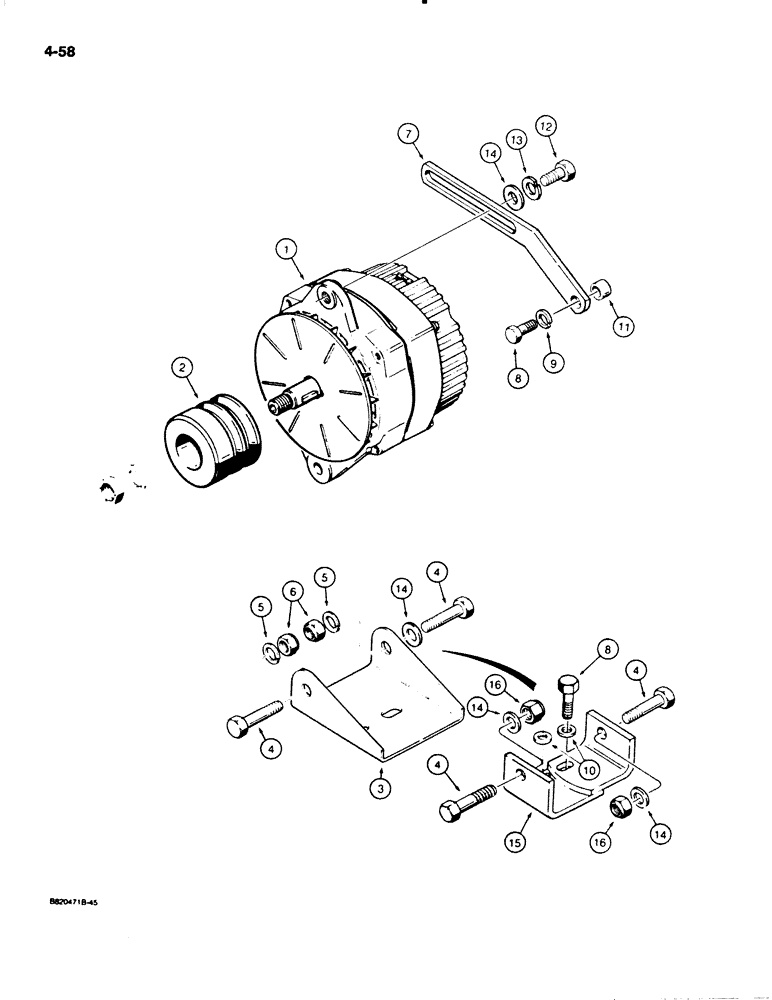

Запчасти Case W20C (4-058) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

L114250

ALTERNATOR ASSEMBLY - 24V, 65 amp, Delco-Remy No. 1105474, parts list Figure 4-010

1шт.

1

L72955

ALTERNATOR

ASSEMBLY - 24V, 65 amp, Delco-Remy No. 1100077, parts list Figure 4-008

1шт.

1

197231A1R

REMAN-ALTERNATOR

W18B, W20C, Both CASE WHEEL LOADER (NORTH AMERICA), ASSEMBLY, Reman for New PN L72955

1шт.

1

197231A1C

CORE-ALTERNATOR

Return Number

1шт.

2

S219716

PULLEY

- alternator

1шт.

3

L106580

SUPPORT

BRACKET - mount, W18B

1шт.

3

L106580

SUPPORT

BRACKET - mount, W20C P.I.N., Serial Range: -9155766

1шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with L106580 bracket 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Used with L106580 bracket 1/2"-13, G5

2шт.

7

L116946

BAND

STRAP - adjusting

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1-3шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

11

T34907

SPACER

- strap

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

R24323

WASHER

- flat, special

2-3шт.

15

L105944

SUPPORT

BRACKET - mount, W20C 9155766 to

1шт.

16

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

17

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, used with shutoff valve and bushing (Ref 30 & 31 on Figure 2-04 when 65 amp alternator is installed, not shown7 90º, 3/4"-14, NPT

1шт.
