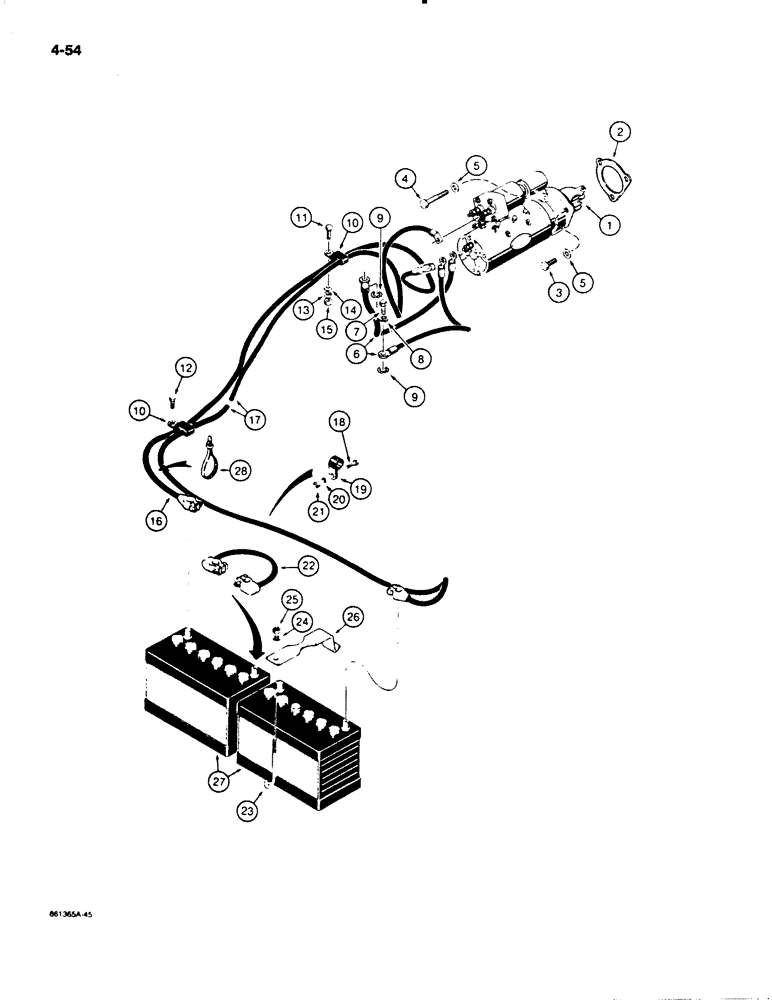

Запчасти Case W20C (4-054) - BATTERY, STARTER, AND BATTERY CABLES, USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L118276
STARTING MOTOR
STARTER ASSEMBLY- parts list Figure 4-016
1шт.
1
87454648
REMAN-STARTER
Remanufactured STARTER - For N.A. Only
1шт.
1
87454649
CORE-STARTER
Return Number, STARTER - For N.A. Only
1шт.
2
A27933
GASKET
GASKET - starting motor
1шт.
3
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd
2шт.
4
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
BOLT, Hex, 1/2"-13 x 3 1/4", G5
1шт.
6
L116326
CABLE
CABLE - ground, starter
2шт.
8
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
9
193-72
LOCK WASHER
WASHER - internal-external tooth lock, 3/8", plated
2шт.
10
L19029
CLAMP
CLAMP - battery cable
2шт.
11
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
BOLT - hex head, 3/8" - 16 NC x 1-1/2"
1шт.
12
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
13
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
2шт.
14
95-6
WASHER,3/8"
WASHER - flat, 3/8"
2шт.
15
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8" - 16 NC
2шт.
16
L116159
CABLE
CABLE - battery ground
1шт.
17
L116160
CABLE
CABLE -, Serial Range: battery-starter
1шт.
18
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
19
49838
CLAMP
CLAMP - battery cable
1шт.
20
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
1шт.
21
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8" - 16 NC
1шт.
22
L116155
CABLE PULLING GRIP
CABLE -, Serial Range: battery-battery
1шт.
23
T53041
BOLT
J-BOLT - battery holddown
2шт.
24
92-5
LOCK WASHER,5/16"
LOCK WASHER, 5/16"
2шт.
25
9635082
NUT,5/16" - 18, Gr 5
NUT - hex, 5/16" - 18 NC
2шт.
26
L109462
STRAP
RETAINER - battery
2шт.
27
BHC30
BATTERY, DRY
BATTERY DRY BATTERY - 12 volt
2шт.
28
L118337
CLIP
STRAP - tie, battery cables
1шт.
Выбрано товаров: 30
