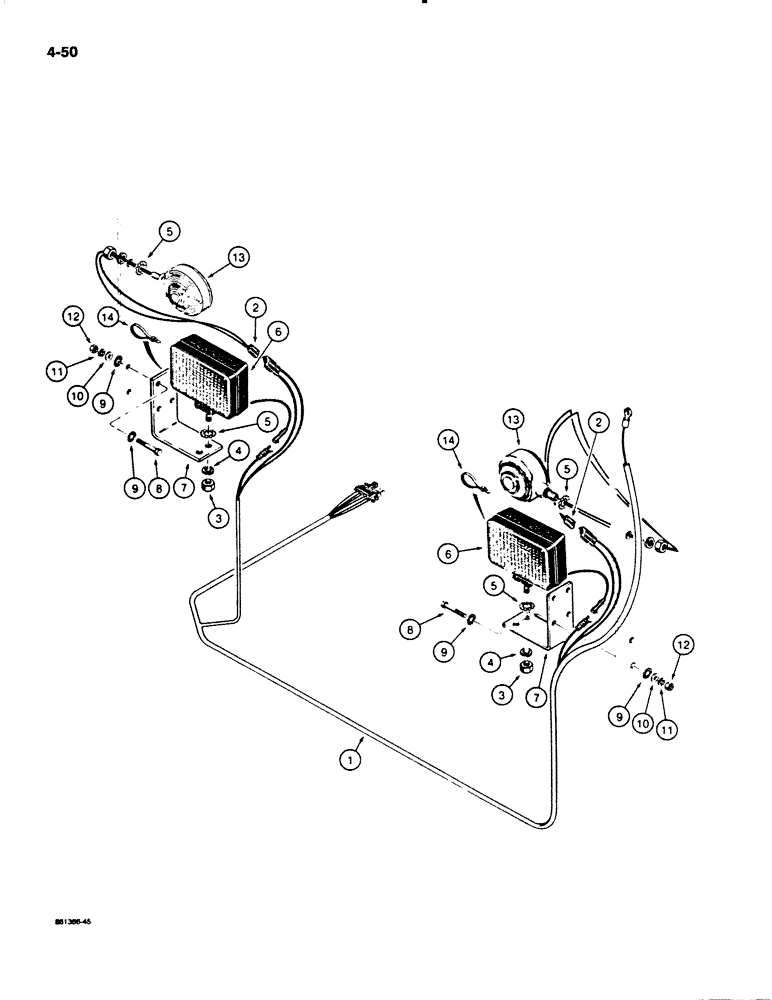

Запчасти Case W20C (4-050) - ELECTRICAL CIRCUIT, REAR LAMPS, USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L114106

HARNESS

- rear lamps

1шт.

2

223-173

CONNECTOR, ELEC

CONNECTOR - wire

2шт.

3

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4шт.

6

L113373

LIGHT ASSY.

LAMP - flood, parts list Figure 4-076

2шт.

7

L114329

BRACKET

- lamp mounting

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

9

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

8шт.

10

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

L114617

LAMP

- stop and tail, parts list Figure 4-080

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - harness, if used

1шт.
