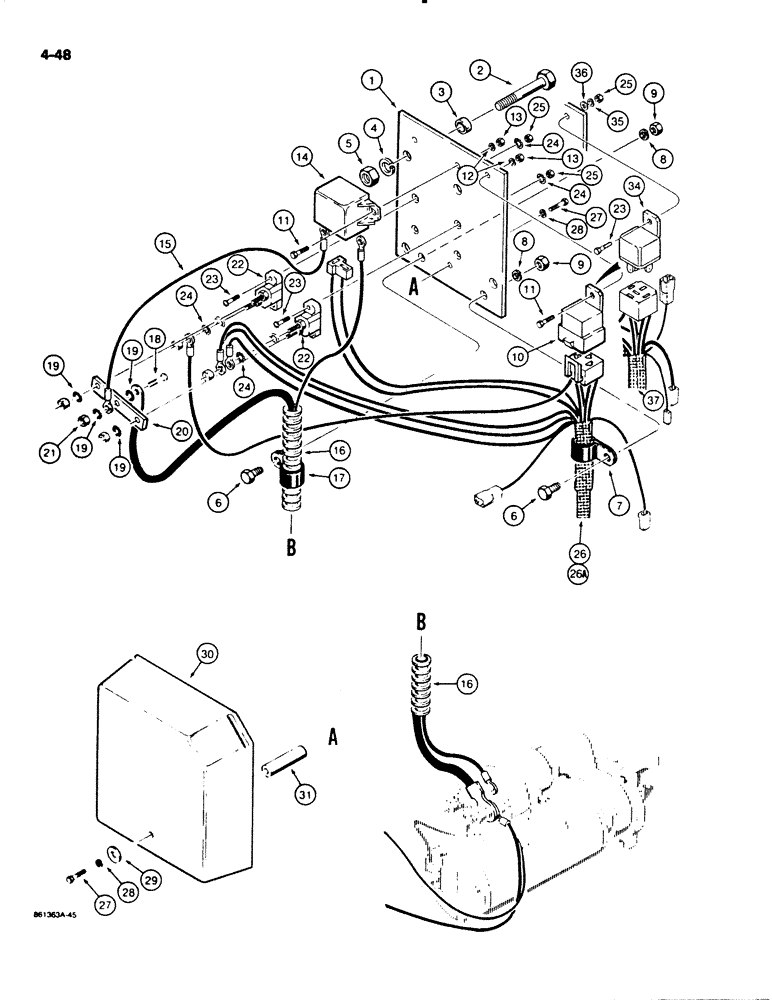

Запчасти Case W20C (4-048) - ELECTRICAL CIRCUIT, REAR HARNESS TO RELAY PANEL, USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115657

PLATE

PANEL - relay mounting

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

3

L78175

HUB

SPACER - bolt

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

49885

CLAMP

- harness

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

L114539

RELAY

- cab, plastic, no longer available, order items 23, 25, 34, 35, and 36

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(1) used with plastic relay, item 10 Hex, 1/4"-20 x 3/4", G5, Full Thd

2-3шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , 1 used with plastic relay, item 10 1/4"

2-3шт.

13

25-104

NUT,1/4"-20, G5

(1) used with plastic relay, item 10 1/4"-20, G5

2-3шт.

14

L115883

RELAY

- starter

1шт.

15

L114058

HARNESS

WIRE - jumper

1шт.

16

L114132

CABLE

-, Serial Range: starter-relay

1шт.

17

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- cable

1шт.

18

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

1шт.

19

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

20

L114028

BAR

- connector

1шт.

21

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

1шт.

22

L114199

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

23

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4", 1 used with metal relay, item 34

4-5шт.

24

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

25

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, 1 used with metal relay, item 34

4-5шт.

26

L114104

HARNESS

- rear, no longer available, order L116214 harness and items 21 and 22 on Figure 4-046, Serial Range: -9158874

1шт.

26a

L116214

HARNESS

- rear 9158568, Serial Range: -9159100

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

95-4

WASHER,1/4"

- flat, 1/4"

1шт.

30

L114612

COVER

- relay panel

1шт.

31

L114195

SPACER

- relay cover

1шт.

32

B17400

CLEANER

- electrical, 16 oz. spray, not shown

1шт.

33

M20861

ADHESIVE

SEAL - electrical, 16 oz. spray, not shown

1шт.

34

L118429

RELAY

- lamps, metal

1шт.

35

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used with metal relay #10

1шт.

36

195-13

WASHER,#10

- flat, No. 10, used with metal relay

1шт.

37

L116462

HARNESS

- rear 9159101 to

1шт.
