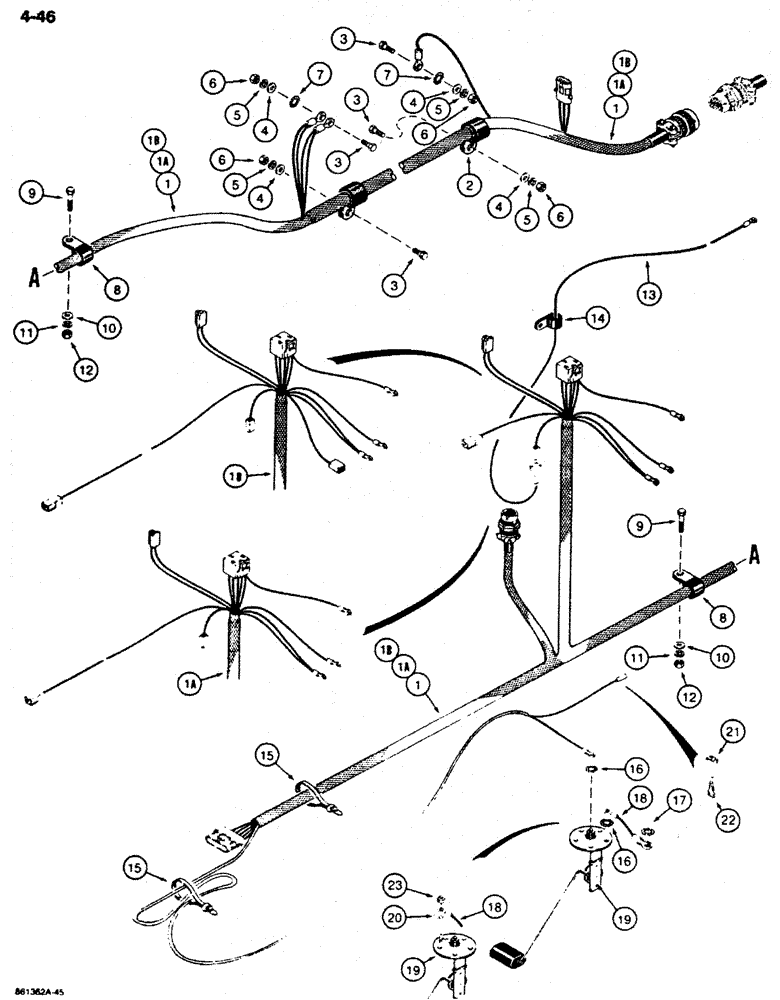

Запчасти Case W20C (4-046) - ELECTRICAL CIRCUIT REAR HARNESS USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L114104

HARNESS

- rear, no longer available, order L116214 harness and Ref. 21 & 22, Serial Range: -9158874

1шт.

1a

L116214

HARNESS

- rear, Serial Range: 9158568-9159100

1шт.

1b

L116462

HARNESS

- rear, Start Serial: 9159101

1шт.

2

R14668

CLAMP

- harness

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

8

NLS

NO LONGER SERVICED

CLAMP - harness

2шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

L114286

HARNESS

WIRE - jumper

1шт.

14

49851

SHIELD

- wire

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - harness

1шт.

16

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1-2шт.

17

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

1шт.

18

L114608

HARNESS

WIRE - ground

1шт.

19

L118306

TRANSMITTER

SENDER - fuel tank, Figure 3-08

1шт.

20

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , If used Int Tooth, #10

1шт.

21

223-166

CONNECTOR, ELEC

CONNECTOR - female

1шт.

22

223-180

TERMINAL CONNECTOR,Male, 14 - 16

TERMINAL - wire

1шт.

23

129-27

NUT,Hex, #10 - 32

- hex, No. 10 NF, if used

1шт.
