(4-044) - ELEC. CIRCUIT, ENGINE HARNESS TO ALTERNATOR & TRANSMISSION USED ON W20C P.I.N. 9155766 AND AFTER

Запчасти Case W20C (4-044) - ELEC. CIRCUIT, ENGINE HARNESS TO ALTERNATOR & TRANSMISSION USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

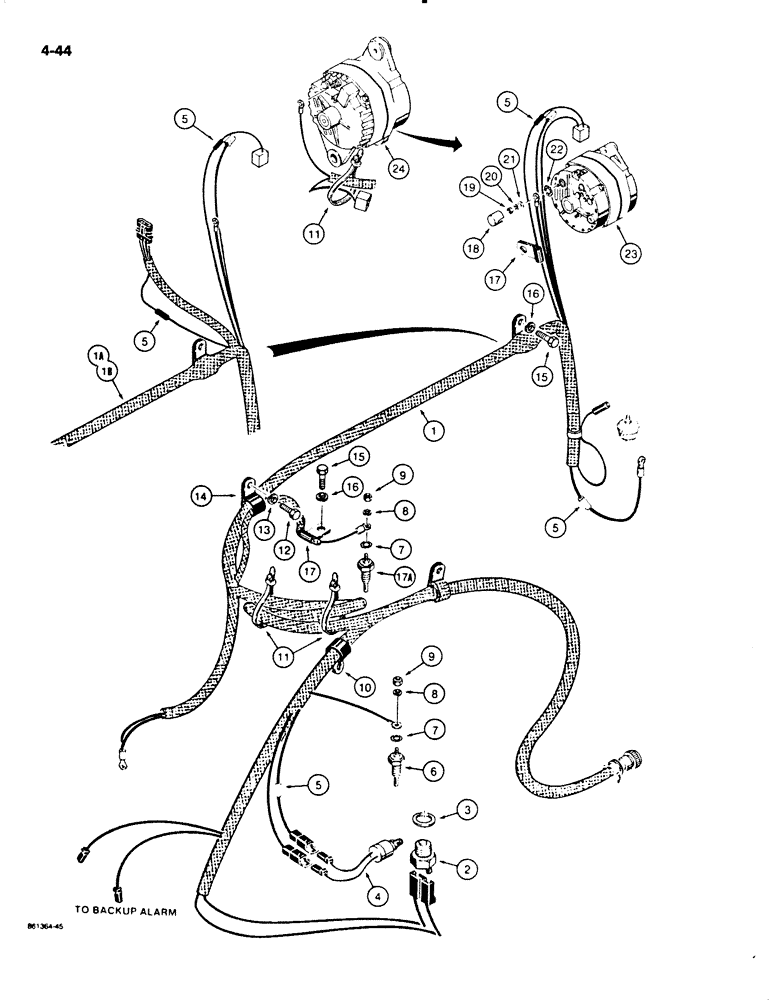

Схема запчастей Case W20C - (4-044) - ELEC. CIRCUIT, ENGINE HARNESS TO ALTERNATOR & TRANSMISSION USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L114105

HARNESS

- engine and transmission, Serial Range: 9155766-9159100

1шт.

1a

L116459

HARNESS

- engine and transmission, used with Delco alternators 9159101 to

1шт.

1b

L118323

HARNESS

- engine and transmission, used with Bosch alternators 9159101 to

1шт.

2

A139078

SWITCH

- neutral start

1шт.

3

L112595

WASHER

- neutral start switch

1шт.

4

L112587

SWITCH

- clutch pressure

1шт.

5

L73576

RESISTOR

- 40 ohm

3шт.

6

L127075

TEMPERATURE SENDER

SENDER - torque converter oil temperature

1шт.

7

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

2шт.

10

49839

CLAMP

- harness

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

49845

CLAMP

- harness

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness

2шт.

17a

REF

INSTRUCTION

SENDER - oil pressure, see Figure 2-22

1шт.

18

L106774

CAP

- 40 amp alternator

1шт.

19

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1

1шт.

20

892-1106

LOCK WASHER,M6

1шт.

21

195-516

WASHER,#12

- flat, No. 12, plated

1шт.

22

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

1шт.

23

REF

INSTRUCTION

ALTERNATOR - 40 and 45 amp, see Figure 4-056 for mounting parts, see Figures 4-002 through 4-006 for correct alternator and components, see item 24 for 65 amp alternator

1шт.

24

REF

INSTRUCTION

ALTERNATOR - 65 amp, see Figure 4-058 for mounting parts, see Figures 4-008 and 4-010 for correct alternator and components, see item 23 for 40 amp alternator

1шт.
